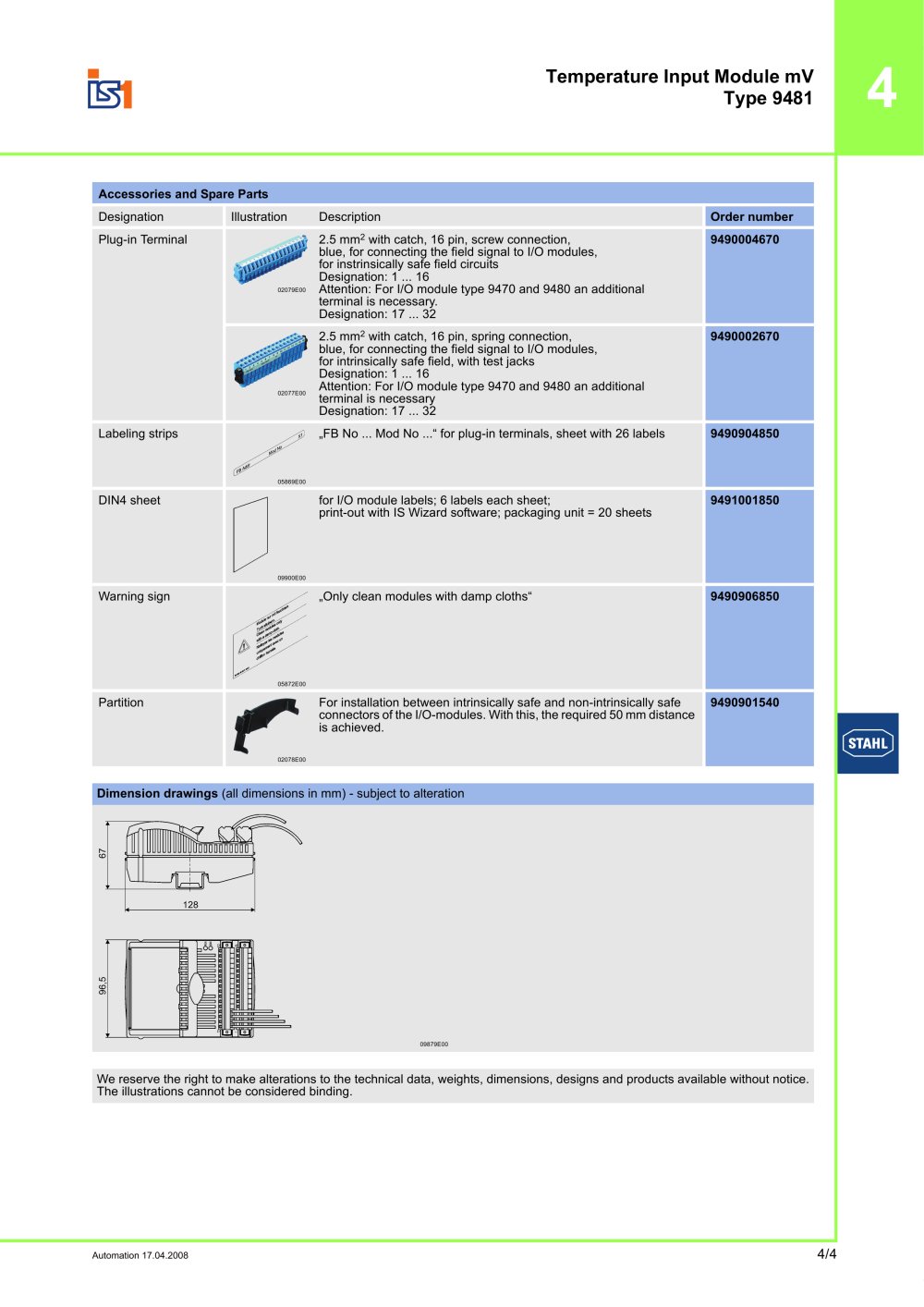

4/4 4 Automation 17.04.2008 Temperature Input Module mV Type 9481 Accessories and Spare Parts Designation Illustration Description Order number Plug-in Terminal 02079E00 2.5 mm2 with catch, 16 pin, screw connection, blue, for connecting the field signal to I/O modules, for instrinsically safe field circuits Designation: 1 ... 16 Attention: For I/O module type 9470 and 9480 an additional terminal is necessary. Designation: 17 ... 32 9490004670 02077E00 2.5 mm2 with catch, 16 pin, spring connection, blue, for connecting the field signal to I/O modules, for intrinsically safe field, with test jacks Designation: 1 ... 16 Attention: For I/O module type 9470 and 9480 an additional terminal is necessary Designation: 17 ... 32 9490002670 Labeling strips 05869E00 „FB No ... Mod No ...“ for plug-in terminals, sheet with 26 labels 9490904850 DIN4 sheet 09900E00 for I/O module labels; 6 labels each sheet; print-out with IS Wizard software; packaging unit = 20 sheets 9491001850 Warning sign 05872E00 „Only clean modules with damp cloths“ 9490906850 Partition 02078E00 For installation between intrinsically safe and non-intrinsically safe connectors of the I/O-modules. With this, the required 50 mm distance is achieved. 9490901540 Dimension drawings (all dimensions in mm) - subject to alteration 09879E00 We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice. The illustrations cannot be considered binding.
