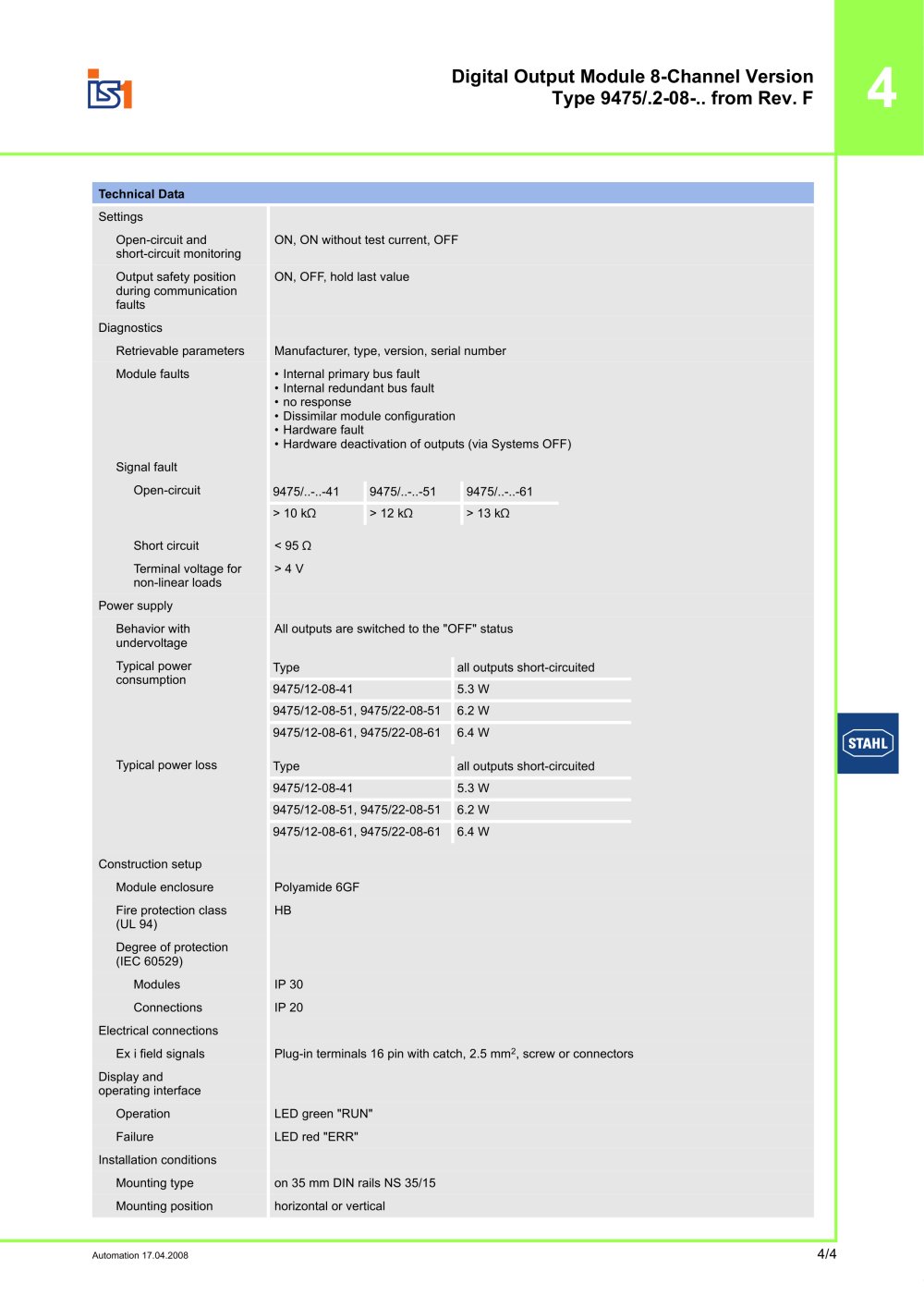

4/4 4 Automation 17.04.2008 Digital Output Module 8-Channel Version Type 9475/.2-08-.. from Rev. F Settings Open-circuit and short-circuit monitoring ON, ON without test current, OFF Output safety position during communication faults ON, OFF, hold last value Diagnostics Retrievable parameters Manufacturer, type, version, serial number Module faults • Internal primary bus fault • Internal redundant bus fault • no response • Dissimilar module configuration • Hardware fault • Hardware deactivation of outputs (via Systems OFF) Signal fault Open-circuit Short circuit 4 V Power supply Behavior with undervoltage All outputs are switched to the "OFF" status Typical power consumption Typical power loss Construction setup Module enclosure Polyamide 6GF Fire protection class (UL 94) HB Degree of protection (IEC 60529) Modules IP 30 Connections IP 20 Electrical connections Ex i field signals Plug-in terminals 16 pin with catch, 2.5 mm2, screw or connectors Display and operating interface Operation LED green "RUN" Failure LED red "ERR" Installation conditions Mounting type on 35 mm DIN rails NS 35/15 Mounting position horizontal or vertical Technical Data 9475/..-..-41 9475/..-..-51 9475/..-..-61 > 10 kO > 12 kO > 13 kO Type all outputs short-circuited 9475/12-08-41 5.3 W 9475/12-08-51, 9475/22-08-51 6.2 W 9475/12-08-61, 9475/22-08-61 6.4 W Type all outputs short-circuited 9475/12-08-41 5.3 W 9475/12-08-51, 9475/22-08-51 6.2 W 9475/12-08-61, 9475/22-08-61 6.4 W
