Automation 02.07.2008
Safety Barriers
Standard Applications

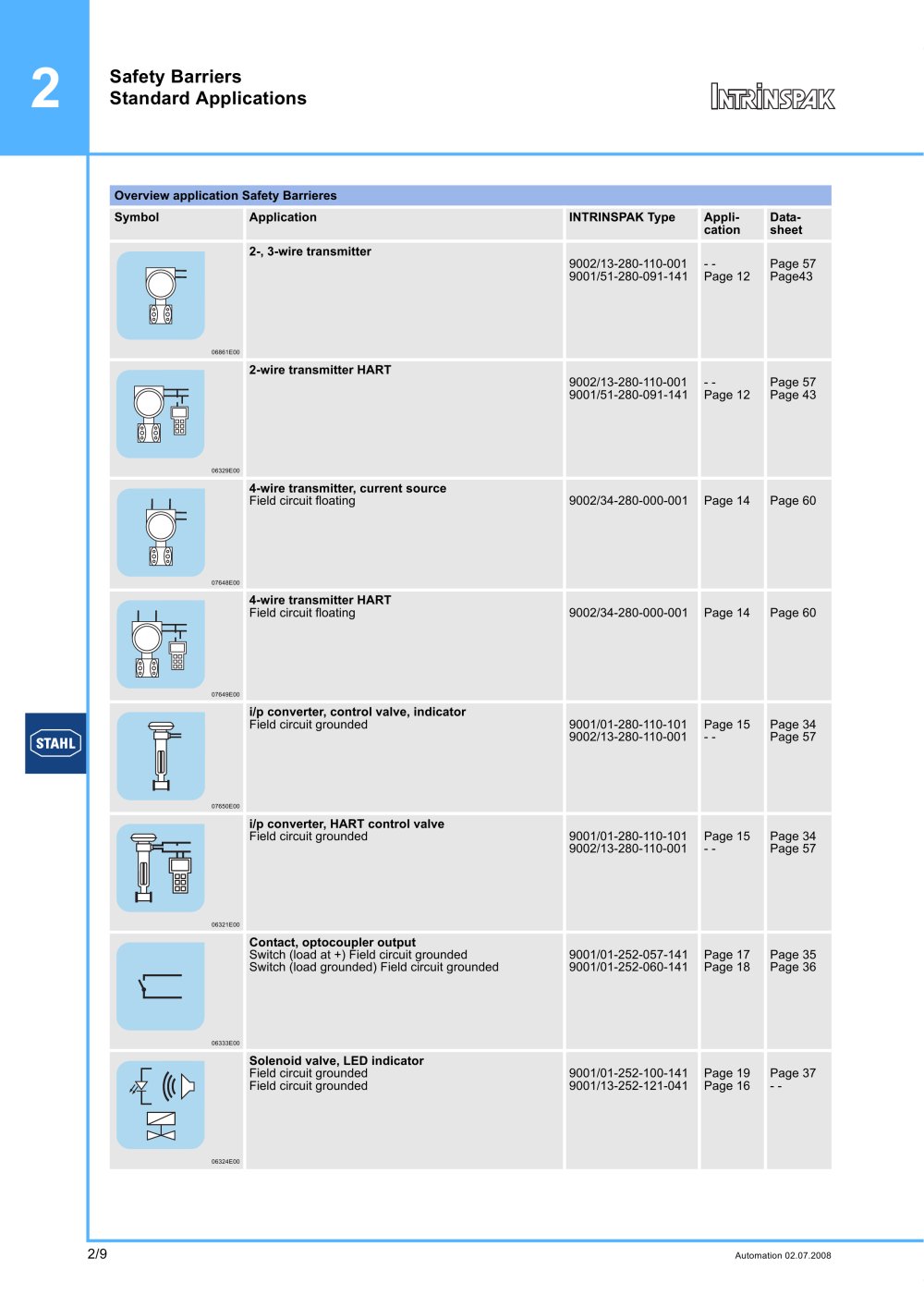

Overview application Safety Barrieres
Symbol Application INTRINSPAK Type Application
Datasheet
06861E00
2-, 3-wire transmitter
9002/13-280-110-001
9001/51-280-091-141
- -
Page 12
Page 57
Page43
06329E00
2-wire transmitter HART
9002/13-280-110-001
9001/51-280-091-141
- -
Page 12
Page 57
Page 43
07648E00
4-wire transmitter, current source
Field circuit floating 9002/34-280-000-001 Page 14 Page 60
07649E00
4-wire transmitter HART
Field circuit floating 9002/34-280-000-001 Page 14 Page 60
07650E00
i/p converter, control valve, indicator
Field circuit grounded 9001/01-280-110-101
9002/13-280-110-001
Page 15
- -
Page 34
Page 57
06321E00
i/p converter, HART control valve
Field circuit grounded 9001/01-280-110-101
9002/13-280-110-001
Page 15
- -
Page 34
Page 57
06333E00
Contact, optocoupler output
Switch (load at +) Field circuit grounded
Switch (load grounded) Field circuit grounded
9001/01-252-057-141
9001/01-252-060-141
Page 17
Page 18
Page 35
Page 36
06324E00
Industrial solenoid valve, LED indicator
Field circuit grounded
Field circuit grounded
9001/01-252-100-141
9001/13-252-121-041
Page 19
Page 16
Page 37
- -
