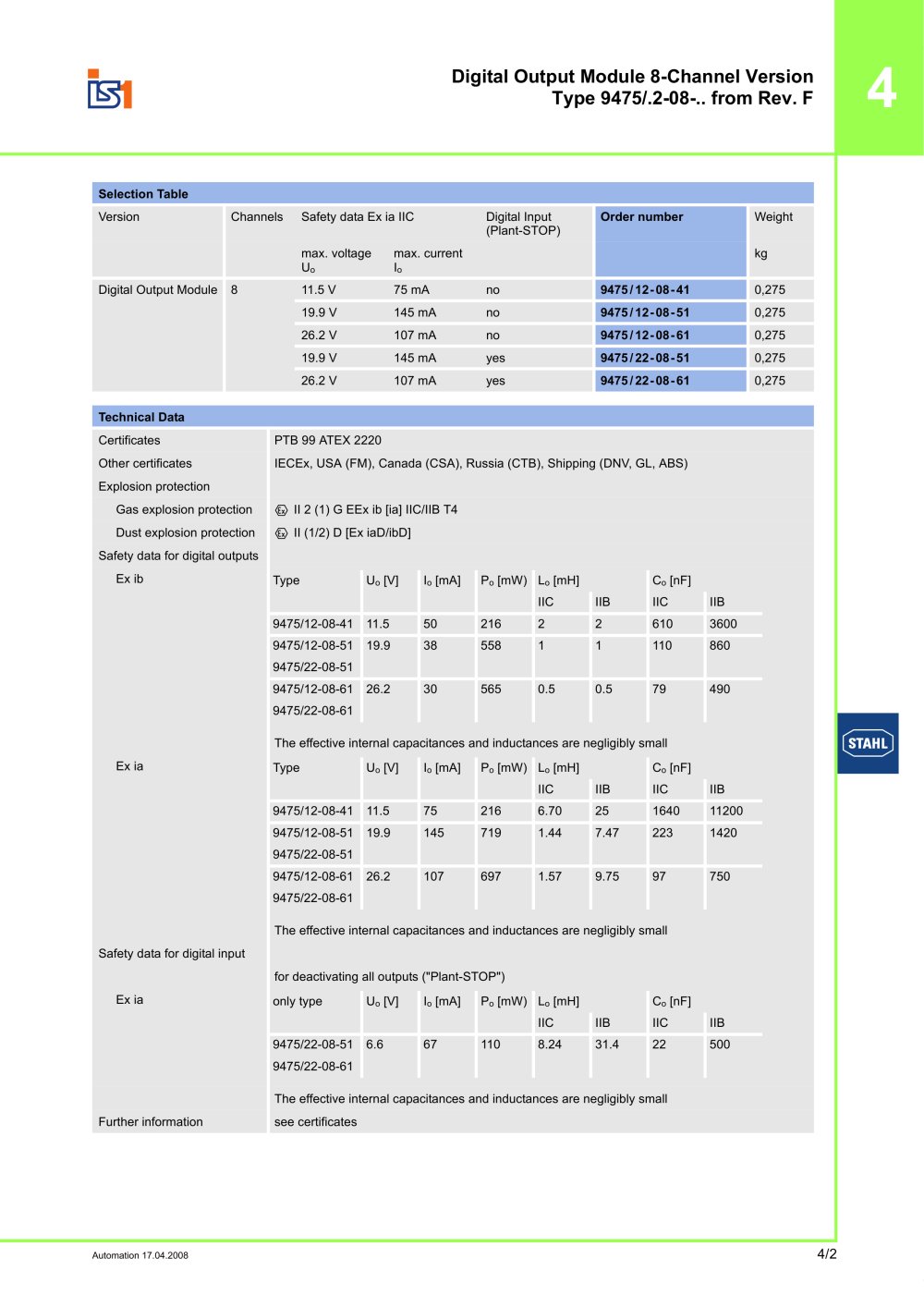

4/2 4 Automation 17.04.2008 Digital Output Module 8-Channel Version Type 9475/.2-08-.. from Rev. F Selection Table Version Channels Safety data Ex ia IIC Digital Input (Plant-STOP) Order number Weight max. voltage Uo max. current Io kg Digital Output Module 8 11.5 V 75 mA no 9475/12-08-41 0,275 19.9 V 145 mA no 9475/12-08-51 0,275 26.2 V 107 mA no 9475/12-08-61 0,275 19.9 V 145 mA yes 9475/22-08-51 0,275 26.2 V 107 mA yes 9475/22-08-61 0,275 Technical Data Certificates PTB 99 ATEX 2220 Other certificates IECEx, USA (FM), Canada (CSA), Russia (CTB), Shipping (DNV, GL, ABS) Explosion protection Gas explosion protection E II 2 (1) G EEx ib [ia] IIC/IIB T4 Dust explosion protection E II (1/2) D [Ex iaD/ibD] Safety data for digital outputs Ex ib The effective internal capacitances and inductances are negligibly small Ex ia The effective internal capacitances and inductances are negligibly small Safety data for digital input for deactivating all outputs ("Plant-STOP") Ex ia The effective internal capacitances and inductances are negligibly small Further information see certificates Type Uo [V] Io [mA] Po [mW) Lo [mH] Co [nF] IIC IIB IIC IIB 9475/12-08-41 11.5 50 216 2 2 610 3600 9475/12-08-51 19.9 38 558 1 1 110 860 9475/22-08-51 9475/12-08-61 26.2 30 565 0.5 0.5 79 490 9475/22-08-61 Type Uo [V] Io [mA] Po [mW) Lo [mH] Co [nF] IIC IIB IIC IIB 9475/12-08-41 11.5 75 216 6.70 25 1640 11200 9475/12-08-51 19.9 145 719 1.44 7.47 223 1420 9475/22-08-51 9475/12-08-61 26.2 107 697 1.57 9.75 97 750 9475/22-08-61 only type Uo [V] Io [mA] Po [mW) Lo [mH] Co [nF] IIC IIB IIC IIB 9475/22-08-51 6.6 67 110 8.24 31.4 22 500 9475/22-08-61
