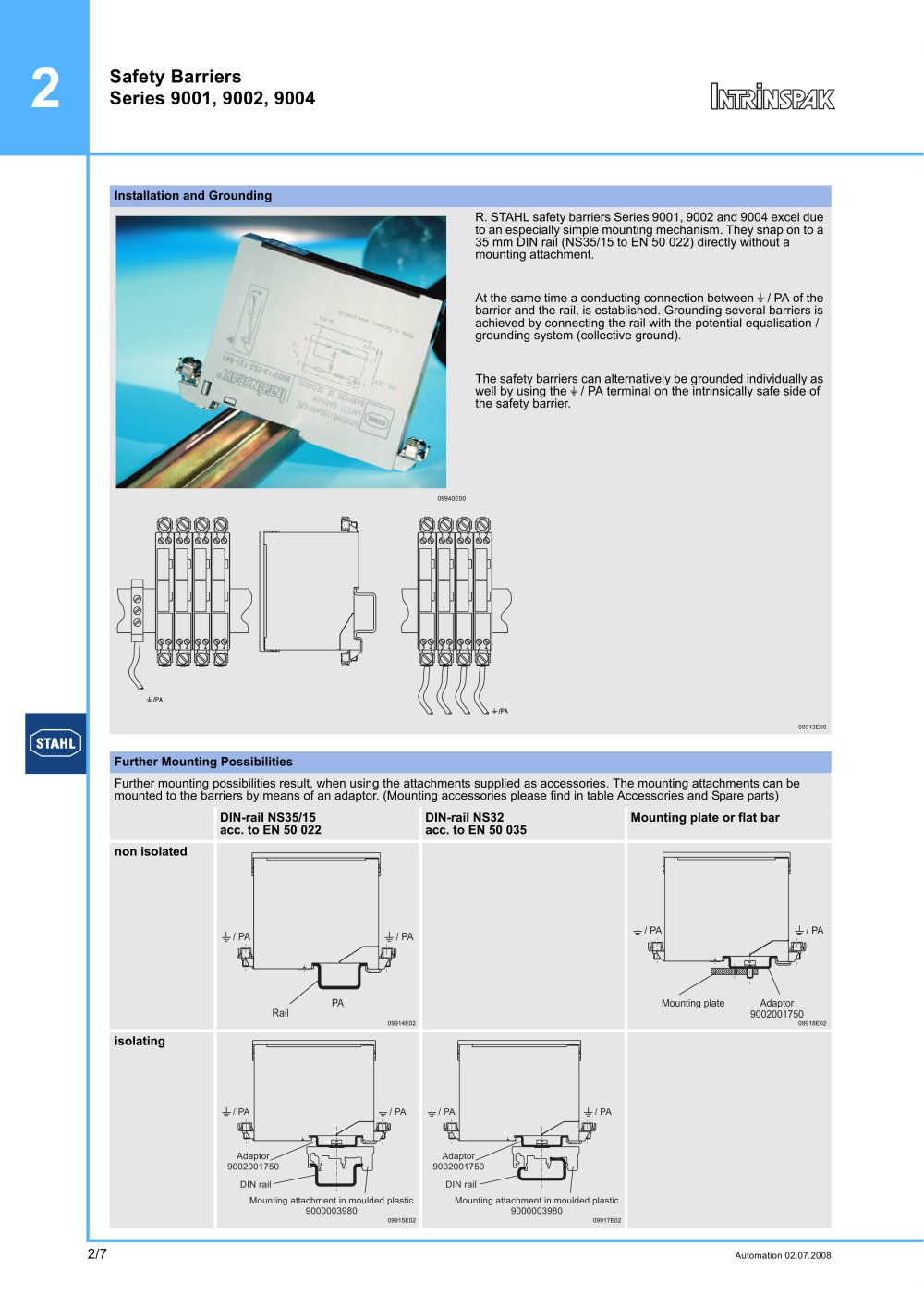

2/7 2 Automation 02.07.2008 Safety Barriers Series 9001, 9002, 9004 Installation and Grounding 09940E00 R. STAHL safety barriers Series 9001, 9002 and 9004 excel due to an especially simple mounting mechanism. They snap on to a 35 mm DIN rail (NS35/15 to EN 50 022) directly without a mounting attachment. At the same time a conducting connection between ¿ / PA of the barrier and the rail, is established. Grounding several barriers is achieved by connecting the rail with the potential equalisation / grounding system (collective ground). The safety barriers can alternatively be grounded individually as well by using the ¿ / PA terminal on the intrinsically safe side of the safety barrier. 09913E00 Further Mounting Possibilities Further mounting possibilities result, when using the attachments supplied as accessories. The mounting attachments can be mounted to the barriers by means of an adaptor. (Mounting accessories please find in table Accessories and Spare parts) DIN-rail NS35/15 acc. to EN 50 022 DIN-rail NS32 acc. to EN 50 035 Mounting plate or flat bar non isolated 09914E02 09918E02 isolating 09915E02 09917E02 Rail PA / PA / PA Adaptor 9002001750 / PA / PA Mounting plate Adaptor 9002001750 / PA / PA DIN rail Mounting attachment in moulded plastic 9000003980 Adaptor 9002001750 / PA / PA DIN rail Mounting attachment in moulded plastic 9000003980
