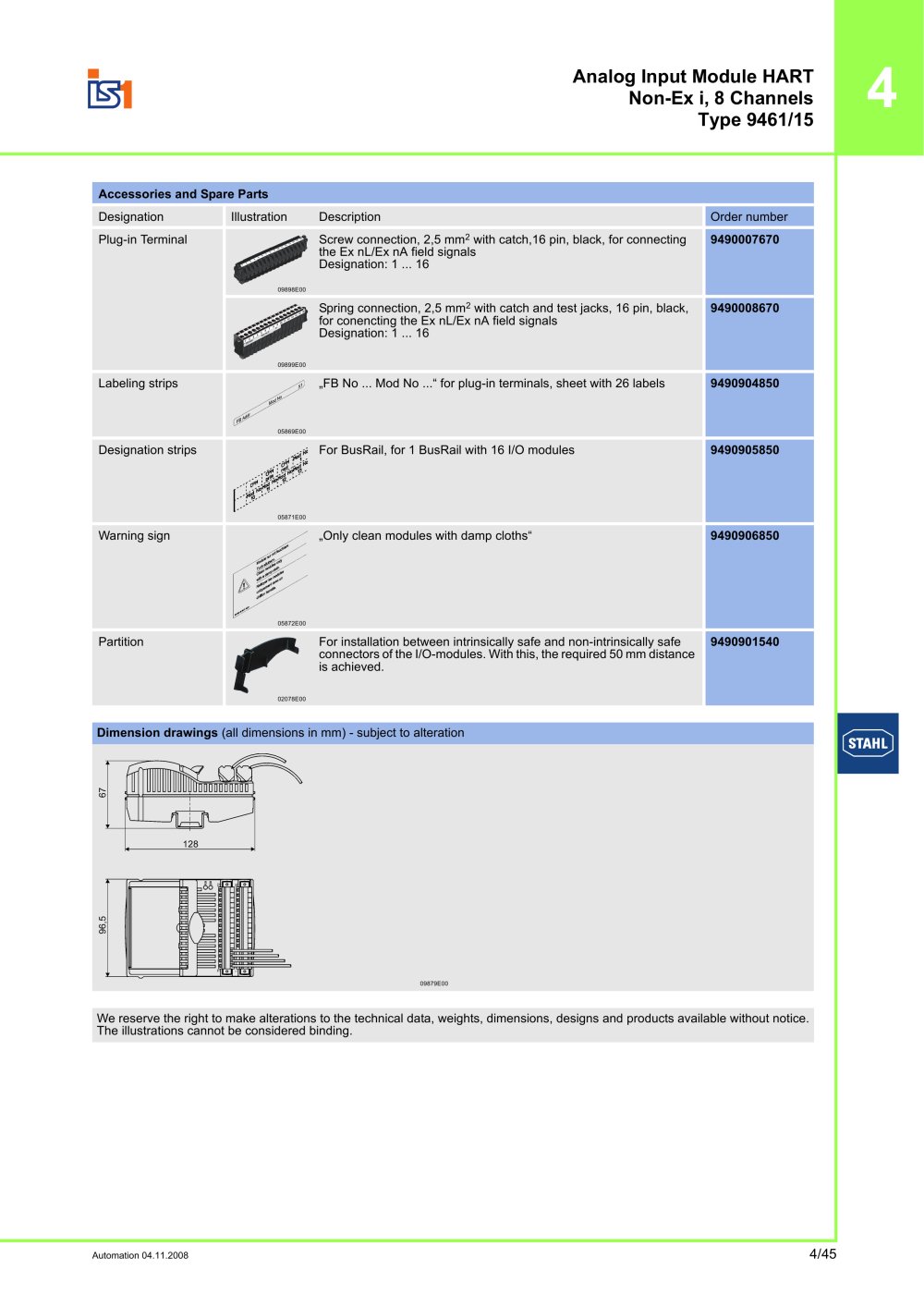

4/45 4 Automation 04.11.2008 Analog Input Module HART Non-Ex i, 8 Channels Type 9461/15 Accessories and Spare Parts Designation Illustration Description Order number Plug-in Terminal 09898E00 Screw connection, 2,5 mm2 with catch,16 pin, black, for connecting the Ex nL/Ex nA field signals Designation: 1 ... 16 9490007670 09899E00 Spring connection, 2,5 mm2 with catch and test jacks, 16 pin, black, for conencting the Ex nL/Ex nA field signals Designation: 1 ... 16 9490008670 Labeling strips 05869E00 „FB No ... Mod No ...“ for plug-in terminals, sheet with 26 labels 9490904850 Designation strips 05871E00 For BusRail, for 1 BusRail with 16 I/O modules 9490905850 Warning sign 05872E00 „Only clean modules with damp cloths“ 9490906850 Partition 02078E00 For installation between intrinsically safe and non-intrinsically safe connectors of the I/O-modules. With this, the required 50 mm distance is achieved. 9490901540 Dimension drawings (all dimensions in mm) - subject to alteration 09879E00 We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice. The illustrations cannot be considered binding.
