3 Isolators
3/1 Automation 17.04.2008
09731E00

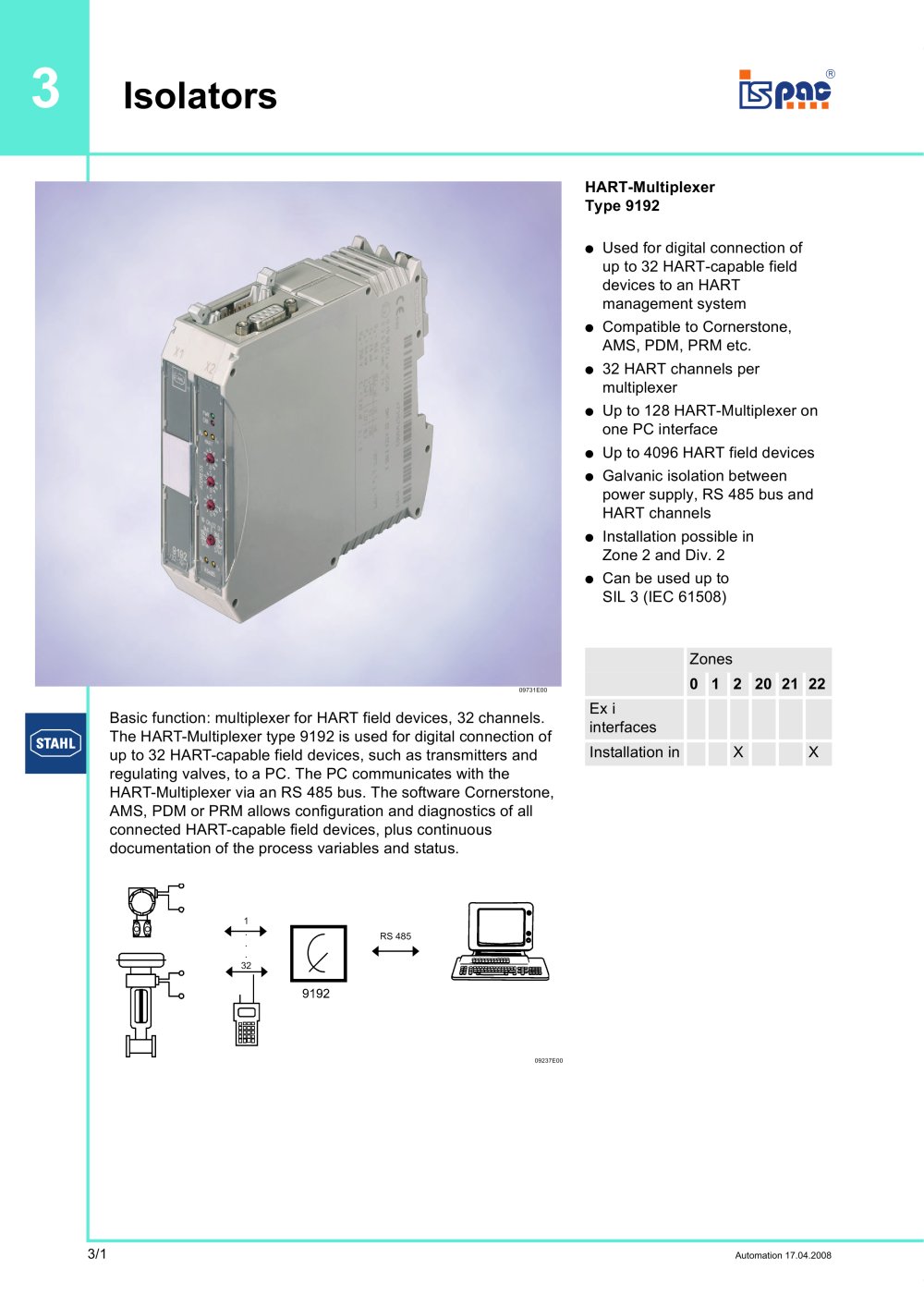

HART-Multiplexer
Type 9192
Used for digital connection of
up to 32 HART-capable field
devices to an HART
management system
Compatible to Cornerstone,
AMS, PDM, PRM etc.
32 HART channels per
multiplexer
Up to 128 HART-Multiplexer on
one PC interface
Up to 4096 HART field devices
Galvanic isolation between
power supply, RS 485 bus and
HART channels
Installation possible in
Zone 2 and Div. 2
Can be used up to
SIL 3 (IEC 61508)
Zones
0 1 2 20 21 22
Ex i
interfaces
Installation in X X
Basic function: multiplexer for HART field devices, 32 channels.
The HART-Multiplexer type 9192 is used for digital connection of
up to 32 HART-capable field devices, such as transmitters and
regulating valves, to a PC. The PC communicates with the
HART-Multiplexer via an RS 485 bus. The software Cornerstone,
AMS, PDM or PRM allows configuration and diagnostics of all
connected HART-capable field devices, plus continuous
documentation of the process variables and status.
09237E00
