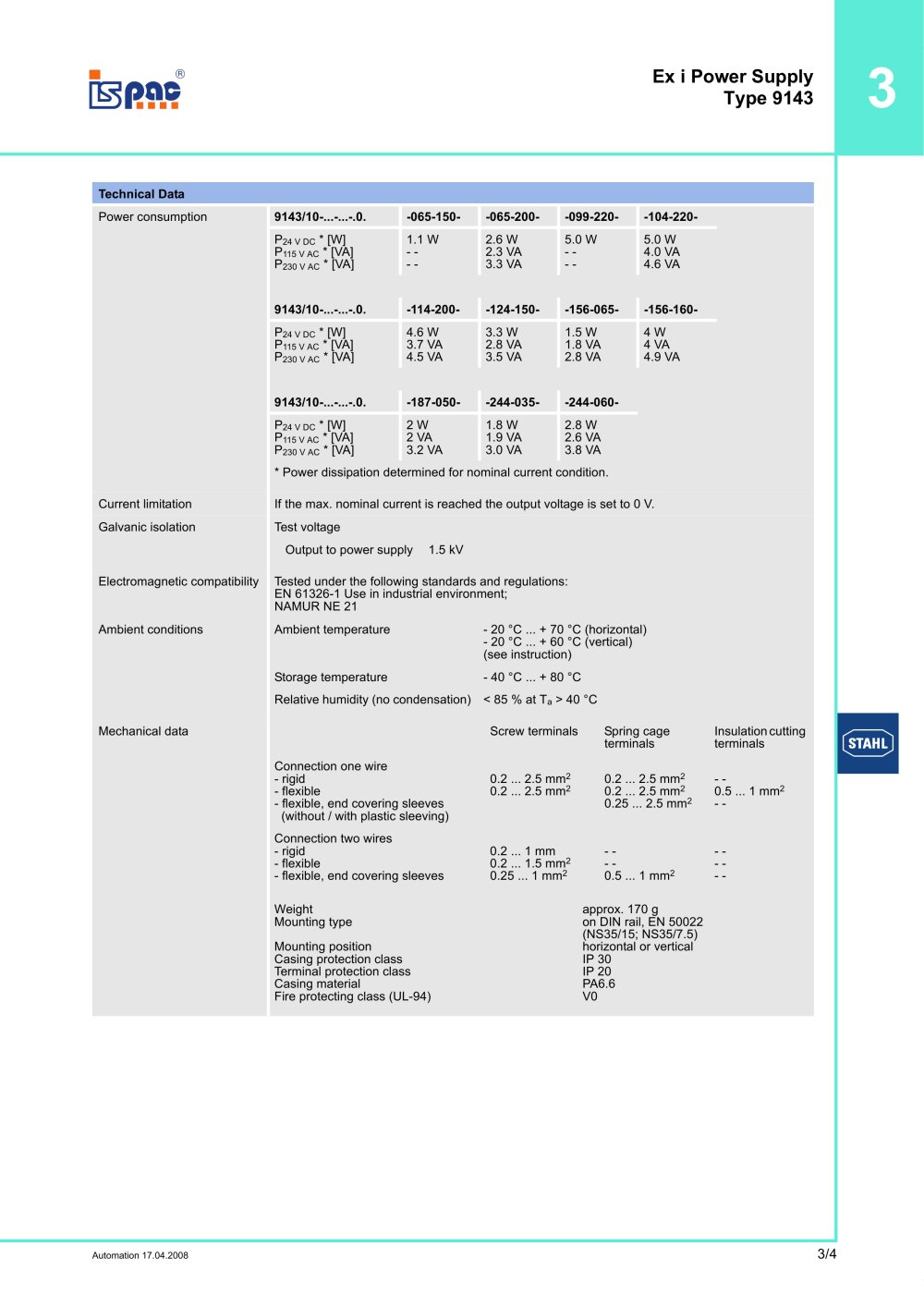

3/4 3 Automation 17.04.2008 Ex i Power Supply Type 9143 Power consumption Current limitation If the max. nominal current is reached the output voltage is set to 0 V. Galvanic isolation Electromagnetic compatibility Tested under the following standards and regulations: EN 61326-1 Use in industrial environment; NAMUR NE 21 Ambient conditions Mechanical data Technical Data 9143/10-...-...-.0. -065-150- -065-200- -099-220- -104-220- P24 V DC * [W] P115 V AC * [VA] P230 V AC * [VA] 1.1 W - - - - 2.6 W 2.3 VA 3.3 VA 5.0 W - - - - 5.0 W 4.0 VA 4.6 VA 9143/10-...-...-.0. -114-200- -124-150- -156-065- -156-160- P24 V DC * [W] P115 V AC * [VA] P230 V AC * [VA] 4.6 W 3.7 VA 4.5 VA 3.3 W 2.8 VA 3.5 VA 1.5 W 1.8 VA 2.8 VA 4 W 4 VA 4.9 VA 9143/10-...-...-.0. -187-050- -244-035- -244-060- P24 V DC * [W] P115 V AC * [VA] P230 V AC * [VA] 2 W 2 VA 3.2 VA 1.8 W 1.9 VA 3.0 VA 2.8 W 2.6 VA 3.8 VA * Power dissipation determined for nominal current condition. Test voltage Output to power supply 1.5 kV Ambient temperature - 20 °C ... + 70 °C (horizontal) - 20 °C ... + 60 °C (vertical) (see instruction) Storage temperature - 40 °C ... + 80 °C Relative humidity (no condensation) 40 °C Screw terminals Spring cage terminals Insulation cutting terminals Connection one wire - rigid - flexible - flexible, end covering sleeves (without / with plastic sleeving) 0.2 ... 2.5 mm2 0.2 ... 2.5 mm2 0.2 ... 2.5 mm2 0.2 ... 2.5 mm2 0.25 ... 2.5 mm2 - - 0.5 ... 1 mm2 - - Connection two wires - rigid - flexible - flexible, end covering sleeves 0.2 ... 1 mm 0.2 ... 1.5 mm2 0.25 ... 1 mm2 - - - - 0.5 ... 1 mm2 - - - - - - Weight Mounting type Mounting position Casing protection class Terminal protection class Casing material Fire protecting class (UL-94) approx. 170 g on DIN rail, EN 50022 (NS35/15; NS35/7.5) horizontal or vertical IP 30 IP 20 PA6.6 V0
