3/2
3
Automation 17.04.2008

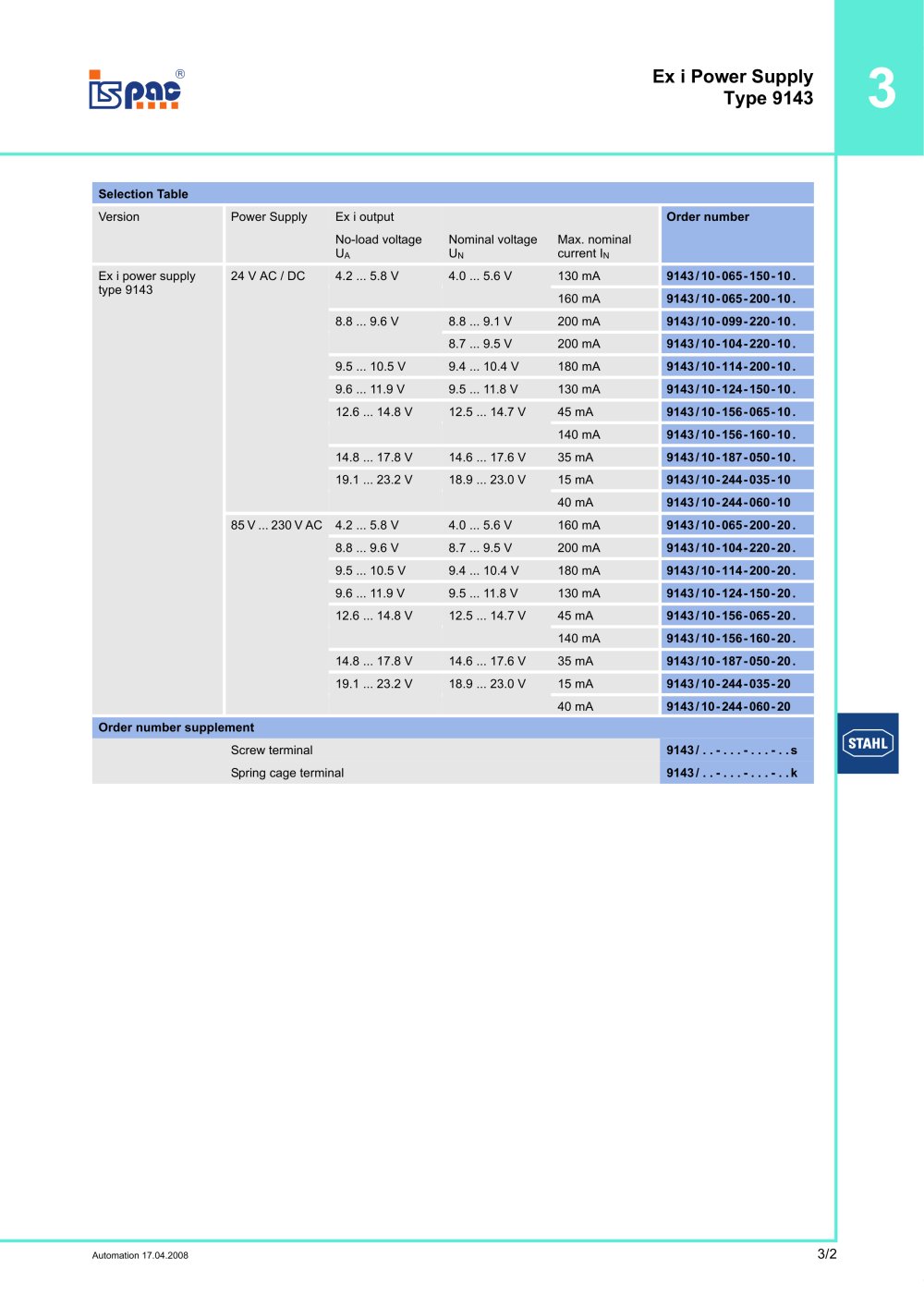

Ex i Power Supply
Type 9143
Selection Table
Version Power Supply Ex i output Order number
No-load voltage
UA
Nominal voltage
UN
Max. nominal
current IN
Ex i power supply
type 9143
24 V AC / DC 4.2 ... 5.8 V 4.0 ... 5.6 V 130 mA 9143/10-065-150-10.
160 mA 9143/10-065-200-10.
8.8 ... 9.6 V 8.8 ... 9.1 V 200 mA 9143/10-099-220-10.
8.7 ... 9.5 V 200 mA 9143/10-104-220-10.
9.5 ... 10.5 V 9.4 ... 10.4 V 180 mA 9143/10-114-200-10.
9.6 ... 11.9 V 9.5 ... 11.8 V 130 mA 9143/10-124-150-10.
12.6 ... 14.8 V 12.5 ... 14.7 V 45 mA 9143/10-156-065-10.
140 mA 9143/10-156-160-10.
14.8 ... 17.8 V 14.6 ... 17.6 V 35 mA 9143/10-187-050-10.
19.1 ... 23.2 V 18.9 ... 23.0 V 15 mA 9143/10-244-035-10
40 mA 9143/10-244-060-10
85 V ... 230 V AC 4.2 ... 5.8 V 4.0 ... 5.6 V 160 mA 9143/10-065-200-20.
8.8 ... 9.6 V 8.7 ... 9.5 V 200 mA 9143/10-104-220-20.
9.5 ... 10.5 V 9.4 ... 10.4 V 180 mA 9143/10-114-200-20.
9.6 ... 11.9 V 9.5 ... 11.8 V 130 mA 9143/10-124-150-20.
12.6 ... 14.8 V 12.5 ... 14.7 V 45 mA 9143/10-156-065-20.
140 mA 9143/10-156-160-20.
14.8 ... 17.8 V 14.6 ... 17.6 V 35 mA 9143/10-187-050-20.
19.1 ... 23.2 V 18.9 ... 23.0 V 15 mA 9143/10-244-035-20
40 mA 9143/10-244-060-20
Order number supplement
Screw terminal 9143/..-...-...-..s
Spring cage terminal 9143/..-...-...-..k
