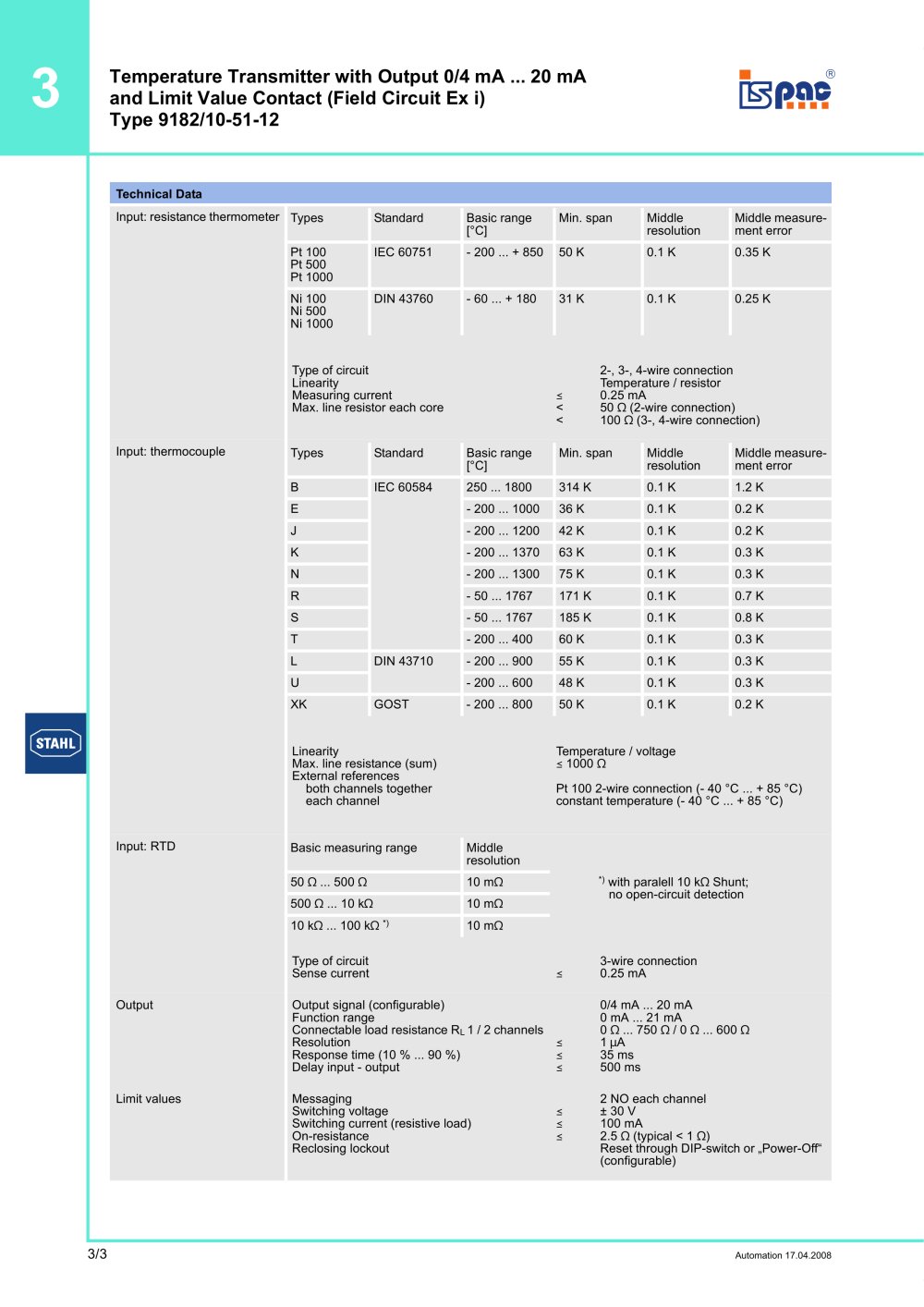

3/3 3 Automation 17.04.2008 Temperature Transmitter with Output 0/4 mA ... 20 mA and Limit Value Contact (Field Circuit Ex i) Type 9182/10-51-12 Input: resistance thermometer Input: thermocouple Input: RTD Output Limit values Technical Data Types Standard Basic range [°C] Min. span Middle resolution Middle measurement error Pt 100 Pt 500 Pt 1000 IEC 60751 - 200 ... + 850 50 K 0.1 K 0.35 K Ni 100 Ni 500 Ni 1000 DIN 43760 - 60 ... + 180 31 K 0.1 K 0.25 K Type of circuit Linearity Measuring current Max. line resistor each core ( << 2-, 3-, 4-wire connection Temperature / resistor 0.25 mA 50 O (2-wire connection) 100 O (3-, 4-wire connection) Types Standard Basic range [°C] Min. span Middle resolution Middle measurement error B IEC 60584 250 ... 1800 314 K 0.1 K 1.2 K E - 200 ... 1000 36 K 0.1 K 0.2 K J - 200 ... 1200 42 K 0.1 K 0.2 K K - 200 ... 1370 63 K 0.1 K 0.3 K N - 200 ... 1300 75 K 0.1 K 0.3 K R - 50 ... 1767 171 K 0.1 K 0.7 K S - 50 ... 1767 185 K 0.1 K 0.8 K T - 200 ... 400 60 K 0.1 K 0.3 K L DIN 43710 - 200 ... 900 55 K 0.1 K 0.3 K U - 200 ... 600 48 K 0.1 K 0.3 K XK GOST - 200 ... 800 50 K 0.1 K 0.2 K Linearity Max. line resistance (sum) External references both channels together each channel Temperature / voltage ( 1000 O Pt 100 2-wire connection (- 40 °C ... + 85 °C) constant temperature (- 40 °C ... + 85 °C) Basic measuring range Middle resolution 50 O ... 500 O 10 mO *) with paralell 10 kO Shunt; no open-circuit detection 500 O ... 10 kO 10 mO 10 kO ... 100 kO *) 10 mO Type of circuit Sense current ( 3-wire connection 0.25 mA Output signal (configurable) Function range Connectable load resistance RL 1 / 2 channels Resolution Response time (10 % ... 90 %) Delay input - output ((( 0/4 mA ... 20 mA 0 mA ... 21 mA 0 O ... 750 O / 0 O ... 600 O 1 mA 35 ms 500 ms Messaging Switching voltage Switching current (resistive load) On-resistance Reclosing lockout ((( 2 NO each channel ± 30 V 100 mA 2.5 O (typical < 1 O) Reset through DIP-switch or „Power-Off“ (configurable)
