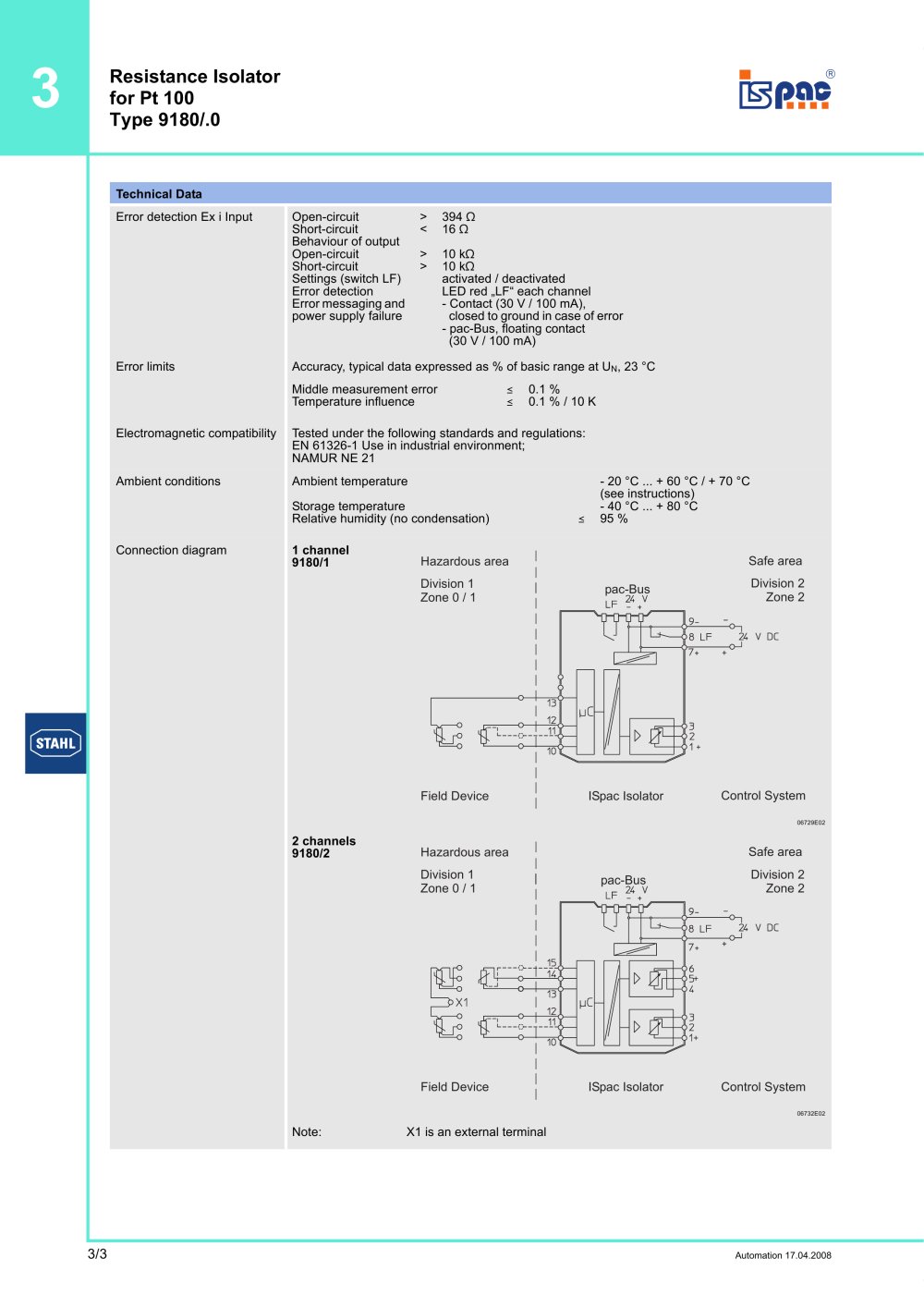

3/3 3 Automation 17.04.2008 Resistance Isolator for Pt 100 Type 9180/.0 Error detection Ex i Input Error limits Electromagnetic compatibility Tested under the following standards and regulations: EN 61326-1 Use in industrial environment; NAMUR NE 21 Ambient conditions Connection diagram Technical Data Open-circuit Short-circuit Behaviour of output Open-circuit Short-circuit Settings (switch LF) Error detection Error messaging and power supply failure >> 394 O 16 O 10 kO 10 kO activated / deactivated LED red „LF“ each channel - Contact (30 V / 100 mA), closed to ground in case of error - pac-Bus, floating contact (30 V / 100 mA) Accuracy, typical data expressed as % of basic range at UN, 23 °C Middle measurement error Temperature influence (( 0.1 % 0.1 % / 10 K Ambient temperature Storage temperature Relative humidity (no condensation) ( - 20 °C ... + 60 °C / + 70 °C (see instructions) - 40 °C ... + 80 °C 95 % 1 channel 9180/1 06729E02 2 channels 9180/2 06732E02 Note: X1 is an external terminal Field Device ISpac Isolator Control System Division 1 Zone 0 / 1 Division 2 Zone 2 pac-Bus Hazardous area Safe area Field Device ISpac Isolator Control System Division 1 Zone 0 / 1 Division 2 Zone 2 pac-Bus Hazardous area Safe area
