3/4
3
Automation 17.04.2008

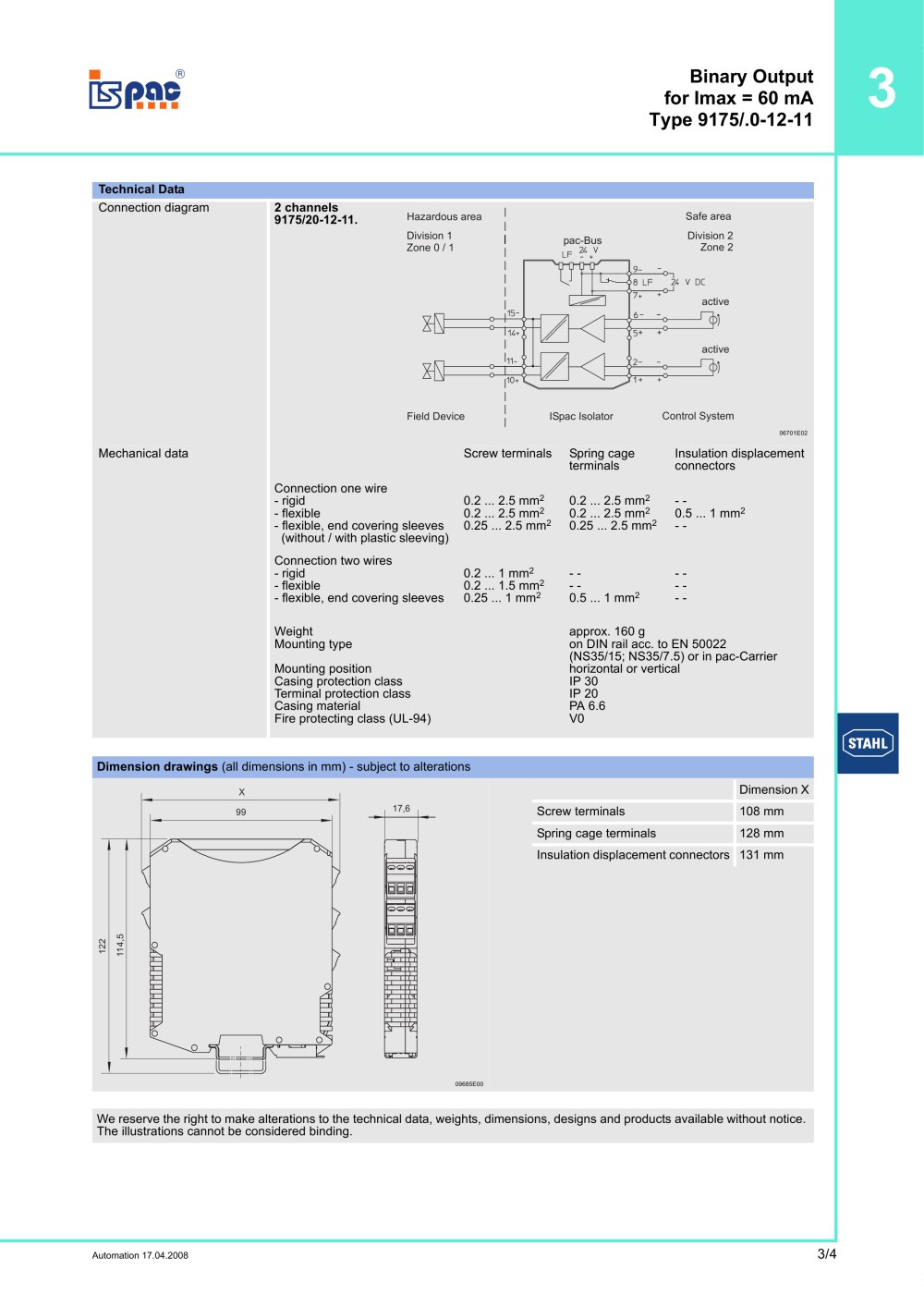

Binary Output
for Imax = 60 mA
Type 9175/.0-12-11
Connection diagram
Mechanical data
Dimension drawings (all dimensions in mm) - subject to alterations
09685E00
We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice.
The illustrations cannot be considered binding.
Technical Data
2 channels
9175/20-12-11.
06701E02
Field Device ISpac Isolator Control System
Division 1
Zone 0 / 1
Division 2
Zone 2
pac-Bus
active
Hazardous area Safe area
active
Screw terminals Spring cage
terminals
Insulation displacement
connectors
Connection one wire
- rigid
- flexible
- flexible, end covering sleeves
(without / with plastic sleeving)
0.2 ... 2.5 mm2
0.2 ... 2.5 mm2
0.25 ... 2.5 mm2
0.2 ... 2.5 mm2
0.2 ... 2.5 mm2
0.25 ... 2.5 mm2
- -
0.5 ... 1 mm2
- -
Connection two wires
- rigid
- flexible
- flexible, end covering sleeves
0.2 ... 1 mm2
0.2 ... 1.5 mm2
0.25 ... 1 mm2
- -
- -
0.5 ... 1 mm2
- -
- -
- -
Weight
Mounting type
Mounting position
Casing protection class
Terminal protection class
Casing material
Fire protecting class (UL-94)
approx. 160 g
on DIN rail acc. to EN 50022
(NS35/15; NS35/7.5) or in pac-Carrier
horizontal or vertical
IP 30
IP 20
PA 6.6
V0
122
114,5
X
99 17,6
Dimension X
Screw terminals 108 mm
Spring cage terminals 128 mm
Insulation displacement connectors 131 mm
