3/3
3
Automation 17.04.2008

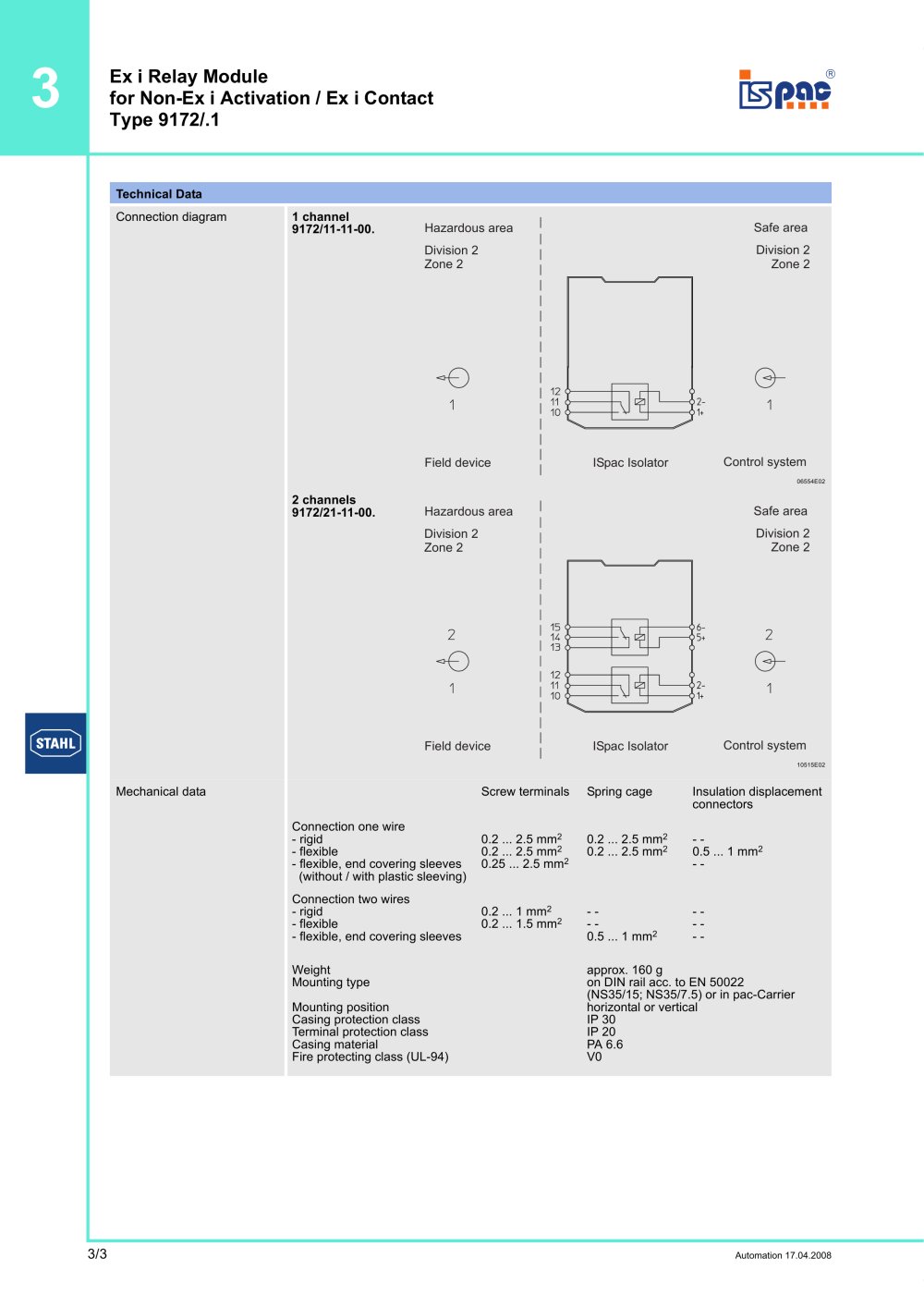

Ex i Relay Module
for Non-Ex i Activation / Ex i Contact
Type 9172/.1
Connection diagram
Mechanical data
Technical Data
1 channel
9172/11-11-00.
06554E02
2 channels
9172/21-11-00.
10515E02
Hazardous area Safe area
Field device ISpac Isolator Control system
Division 2
Zone 2
Division 2
Zone 2
Hazardous area Safe area
Field device ISpac Isolator Control system
Division 2
Zone 2
Division 2
Zone 2
Screw terminals Spring cage Insulation displacement
connectors
Connection one wire
- rigid
- flexible
- flexible, end covering sleeves
(without / with plastic sleeving)
0.2 ... 2.5 mm2
0.2 ... 2.5 mm2
0.25 ... 2.5 mm2
0.2 ... 2.5 mm2
0.2 ... 2.5 mm2
- -
0.5 ... 1 mm2
- -
Connection two wires
- rigid
- flexible
- flexible, end covering sleeves
0.2 ... 1 mm2
0.2 ... 1.5 mm2
- -
- -
0.5 ... 1 mm2
- -
- -
- -
Weight
Mounting type
Mounting position
Casing protection class
Terminal protection class
Casing material
Fire protecting class (UL-94)
approx. 160 g
on DIN rail acc. to EN 50022
(NS35/15; NS35/7.5) or in pac-Carrier
horizontal or vertical
IP 30
IP 20
PA 6.6
V0
