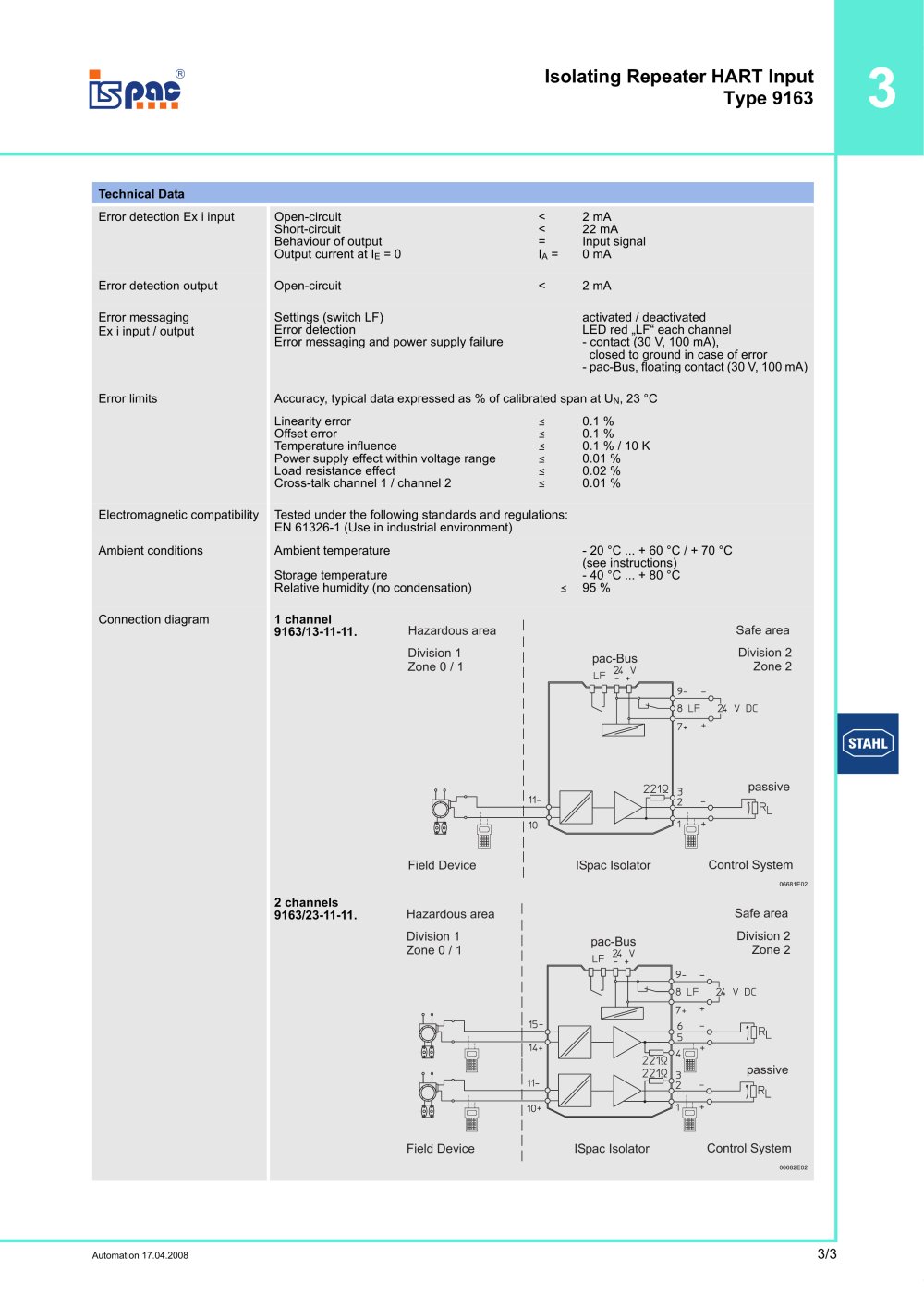

3/3 3 Automation 17.04.2008 Isolating Repeater HART Input Type 9163 Error detection Ex i input Error detection output Error messaging Ex i input / output Error limits Electromagnetic compatibility Tested under the following standards and regulations: EN 61326-1 (Use in industrial environment) Ambient conditions Connection diagram Technical Data Open-circuit Short-circuit Behaviour of output Output current at IE = 0 <<=I A = 2 mA 22 mA Input signal 0 mA Open-circuit < 2 mA Settings (switch LF) Error detection Error messaging and power supply failure activated / deactivated LED red „LF“ each channel - contact (30 V, 100 mA), closed to ground in case of error - pac-Bus, floating contact (30 V, 100 mA) Accuracy, typical data expressed as % of calibrated span at UN, 23 °C Linearity error Offset error Temperature influence Power supply effect within voltage range Load resistance effect Cross-talk channel 1 / channel 2 (((((( 0.1 % 0.1 % 0.1 % / 10 K 0.01 % 0.02 % 0.01 % Ambient temperature Storage temperature Relative humidity (no condensation) ( - 20 °C ... + 60 °C / + 70 °C (see instructions) - 40 °C ... + 80 °C 95 % 1 channel 9163/13-11-11. 06681E02 2 channels 9163/23-11-11. 06682E02 Field Device ISpac Isolator Control System Division 1 Zone 0 / 1 Division 2 Zone 2 pac-Bus passive Hazardous area Safe area Field Device ISpac Isolator Control System Division 1 Zone 0 / 1 Division 2 Zone 2 pac-Bus passive Hazardous area Safe area
