Automation 17.04.2008
Transmitter Supply Unit with Output 0/4 mA ... 20 mA
with HART (Field Circuit Non-Ex i)
Type 9160/..-11-61

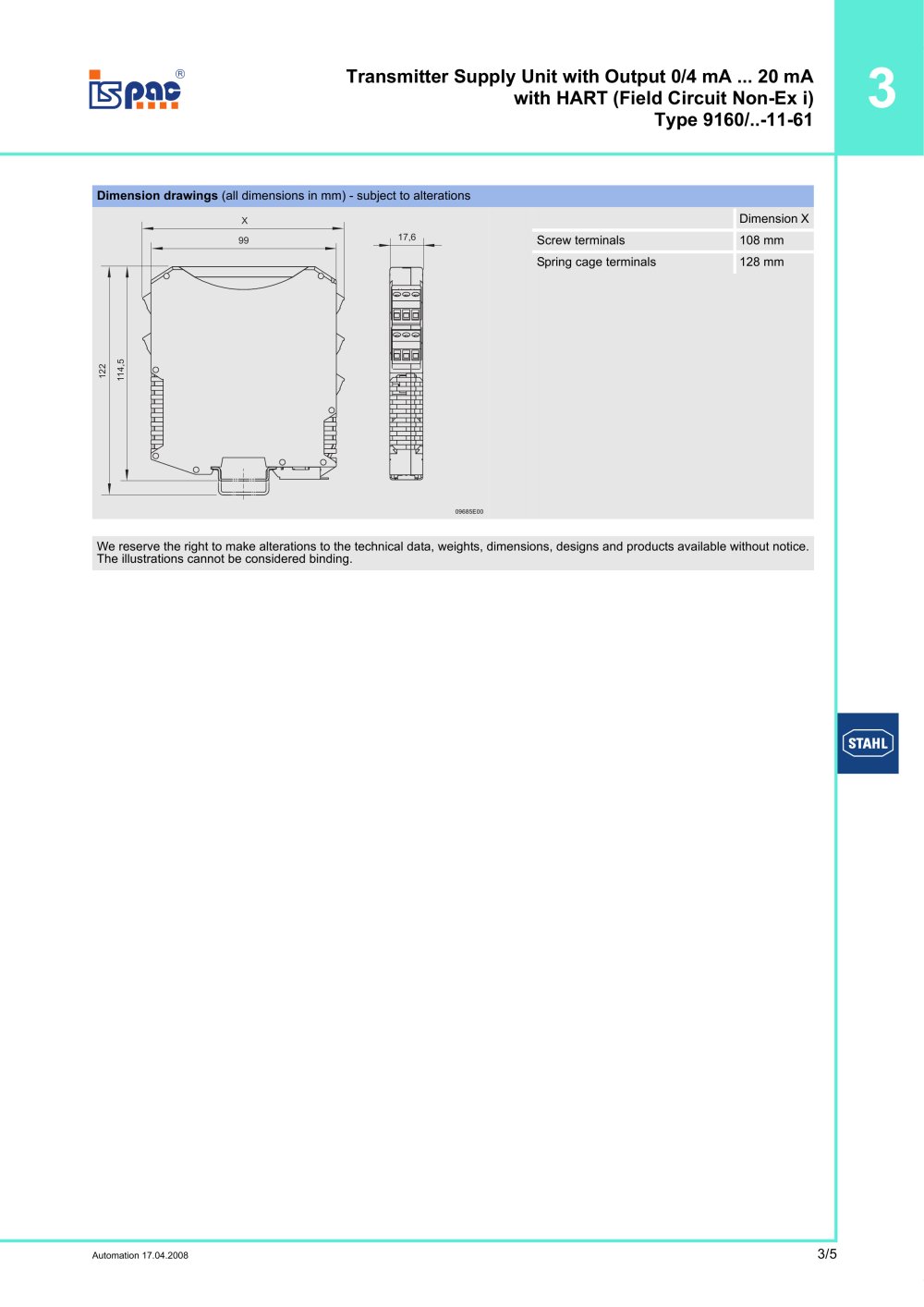

Dimension drawings (all dimensions in mm) - subject to alterations
09685E00
We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice.
The illustrations cannot be considered binding.
122
114,5
X
99 17,6
Dimension X
Screw terminals 108 mm
Spring cage terminals 128 mm
