Automation 17.04.2008

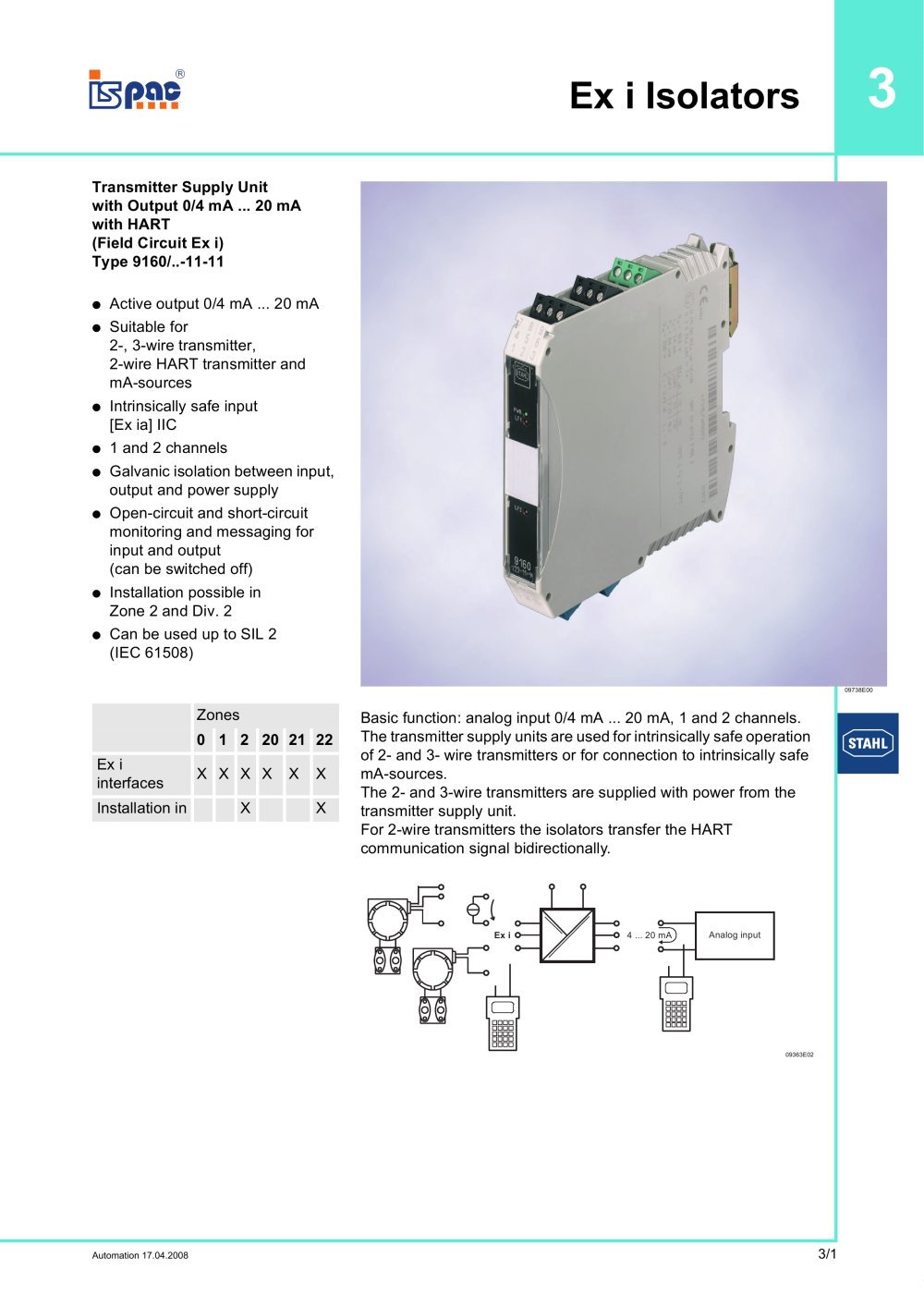

Ex i Isolators
09738E00
Transmitter Supply Unit
with Output 0/4 mA ... 20 mA
with HART
(Field Circuit Ex i)
Type 9160/..-11-11
Active output 0/4 mA ... 20 mA
Suitable for
2-, 3-wire transmitter,
2-wire HART transmitter and
mA-sources
Intrinsically safe input
[Ex ia] IIC
1 and 2 channels
Galvanic isolation between input,
output and power supply
Open-circuit and short-circuit
monitoring and messaging for
input and output
(can be switched off)
Installation possible in
Zone 2 and Div. 2
Can be used up to SIL 2
(IEC 61508)
Zones
0 1 2 20 21 22
Ex i
interfaces X X X X X X
Installation in X X
Basic function: analog input 0/4 mA ... 20 mA, 1 and 2 channels.
The transmitter supply units are used for intrinsically safe operation
of 2- and 3- wire transmitters or for connection to intrinsically safe
mA-sources.
The 2- and 3-wire transmitters are supplied with power from the
transmitter supply unit.
For 2-wire transmitters the isolators transfer the HART
communication signal bidirectionally.
09363E02
Ex i 4 ... 20 mA Analog input
