Automation 17.04.2008

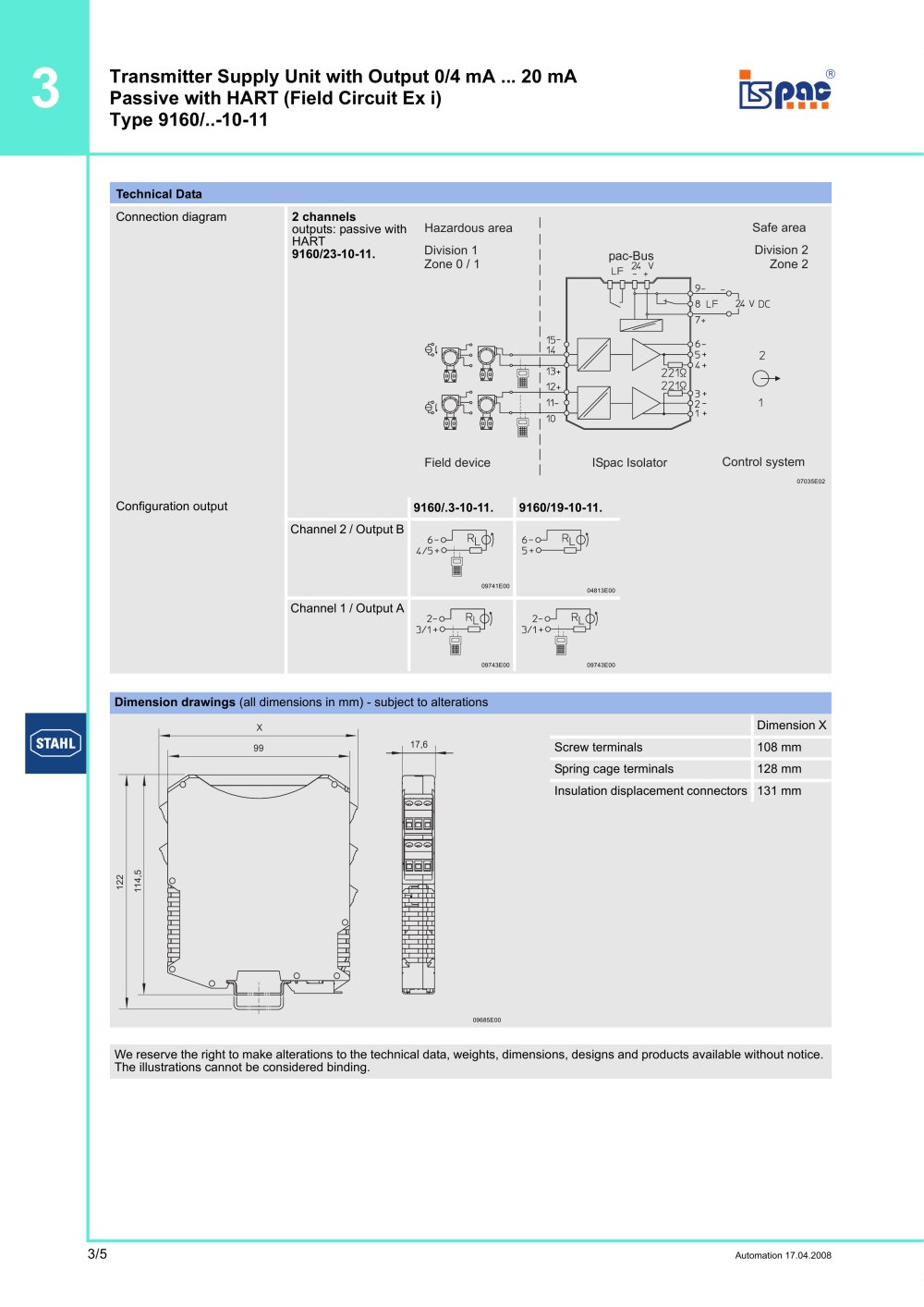

Transmitter Supply Unit with Output 0/4 mA ... 20 mA
Passive with HART (Field Circuit Ex i)
Type 9160/..-10-11
Connection diagram
Configuration output
Dimension drawings (all dimensions in mm) - subject to alterations
09685E00
We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice.
The illustrations cannot be considered binding.
Technical Data
2 channels
outputs: passive with
HART
9160/23-10-11.
07035E02
Hazardous area Safe area
Field device ISpac Isolator Control system
Division 1
Zone 0 / 1
Division 2
Zone 2
pac-Bus
9160/.3-10-11. 9160/19-10-11.
Channel 2 / Output B
09741E00
04813E00
Channel 1 / Output A
09743E00 09743E00
122
114,5
X
99 17,6
Dimension X
Screw terminals 108 mm
Spring cage terminals 128 mm
Insulation displacement connectors 131 mm
