11/19
11
Internal Catalogue 13.07.2006

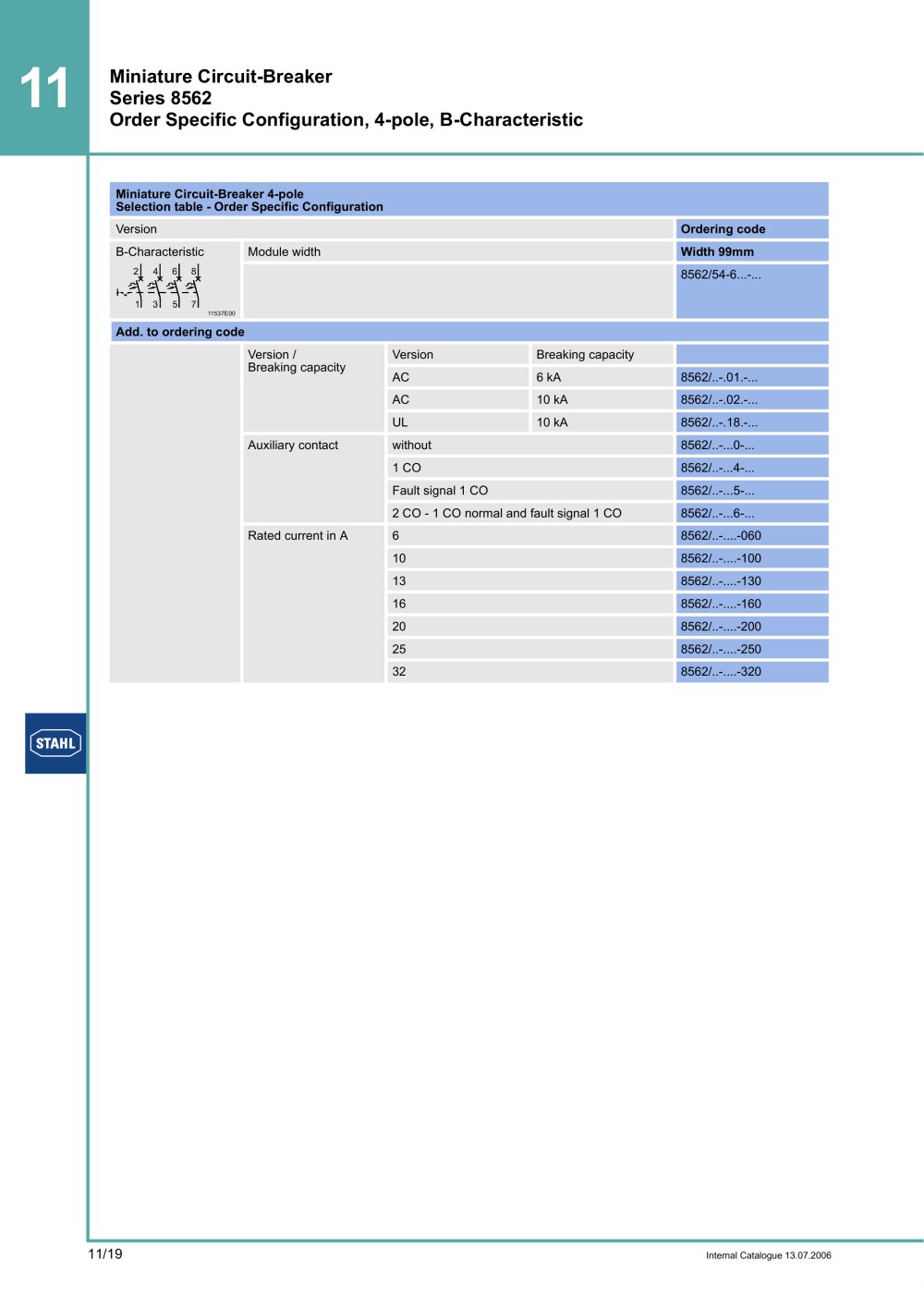

Miniature Circuit-Breaker
Series 8562
Order Specific Configuration, 4-pole, B-Characteristic
Miniature Circuit-Breaker 4-pole
Selection table - Order Specific Configuration
Version Ordering code
B-Characteristic
11537E00
Module width Width 99mm
8562/54-6...-...
Add. to ordering code
Version /
Breaking capacity
Version Breaking capacity
AC 6 kA 8562/..-.01.-...
AC 10 kA 8562/..-.02.-...
UL 10 kA 8562/..-.18.-...
Auxiliary contact without 8562/..-...0-...
1 CO 8562/..-...4-...
Fault signal 1 CO 8562/..-...5-...
2 CO - 1 CO normal and fault signal 1 CO 8562/..-...6-...
Rated current in A 6 8562/..-....-060
10 8562/..-....-100
13 8562/..-....-130
16 8562/..-....-160
20 8562/..-....-200
25 8562/..-....-250
32 8562/..-....-320
