Text version of the page
3/5
3
Automation 17.04.2008

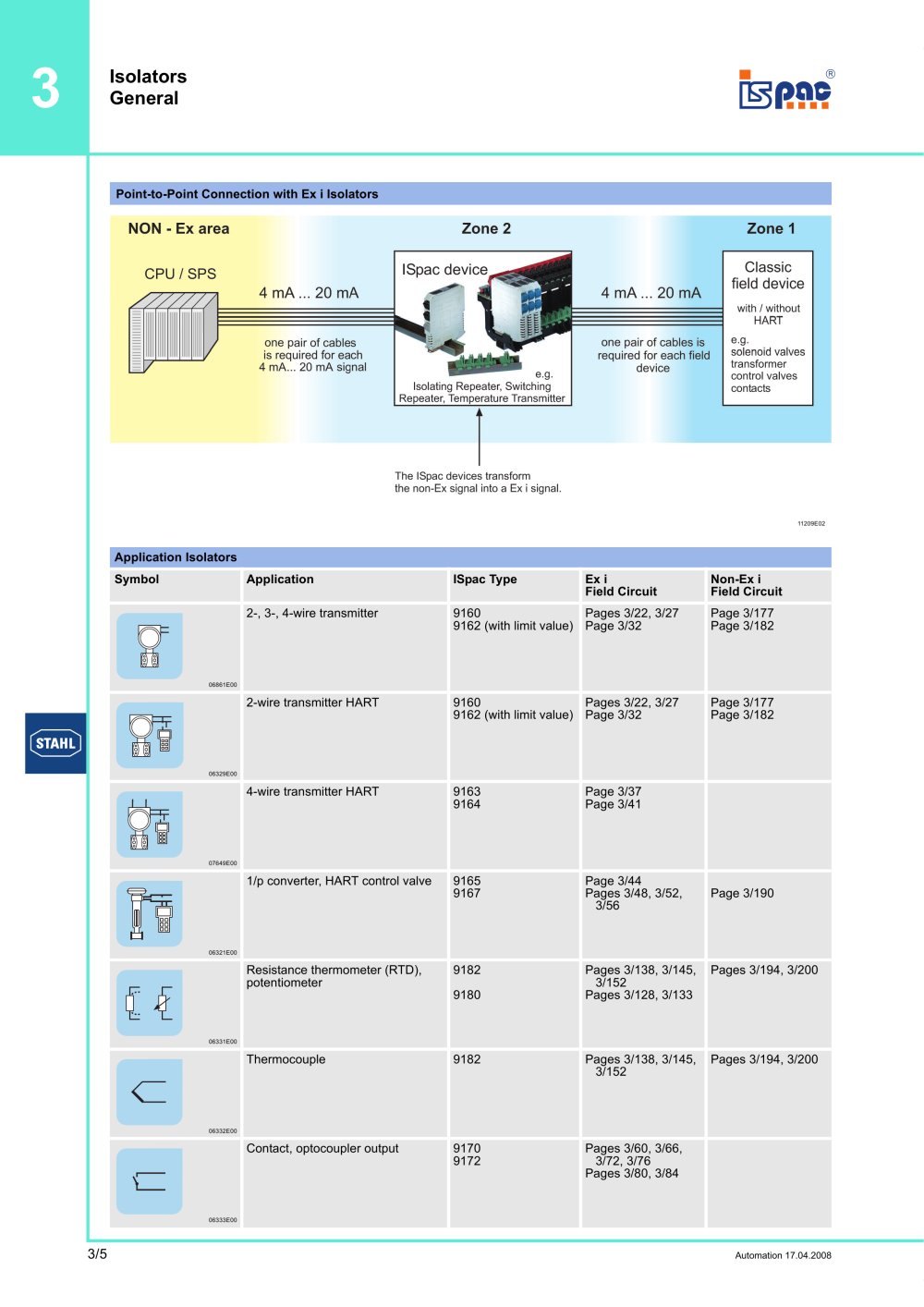

Isolators
General
Point-to-Point Connection with Ex i Isolators
11209E02
Application Isolators
Symbol Application ISpac Type Ex i
Field Circuit
Non-Ex i
Field Circuit
06861E00
2-, 3-, 4-wire transmitter 9160
9162 (with limit value)
Pages 3/22, 3/27
Page 3/32
Page 3/177
Page 3/182
06329E00
2-wire transmitter HART 9160
9162 (with limit value)
Pages 3/22, 3/27
Page 3/32
Page 3/177
Page 3/182
07649E00
4-wire transmitter HART 9163
9164
Page 3/37
Page 3/41
06321E00
1/p converter, HART control valve 9165
9167
Page 3/44
Pages 3/48, 3/52,
3/56
Page 3/190
06331E00
Resistance thermometer (RTD),
potentiometer
9182
9180
Pages 3/138, 3/145,
3/152
Pages 3/128, 3/133
Pages 3/194, 3/200
06332E00
Thermocouple 9182 Pages 3/138, 3/145,
3/152
Pages 3/194, 3/200
06333E00
Contact, optocoupler output 9170
9172
Pages 3/60, 3/66,
3/72, 3/76
Pages 3/80, 3/84
