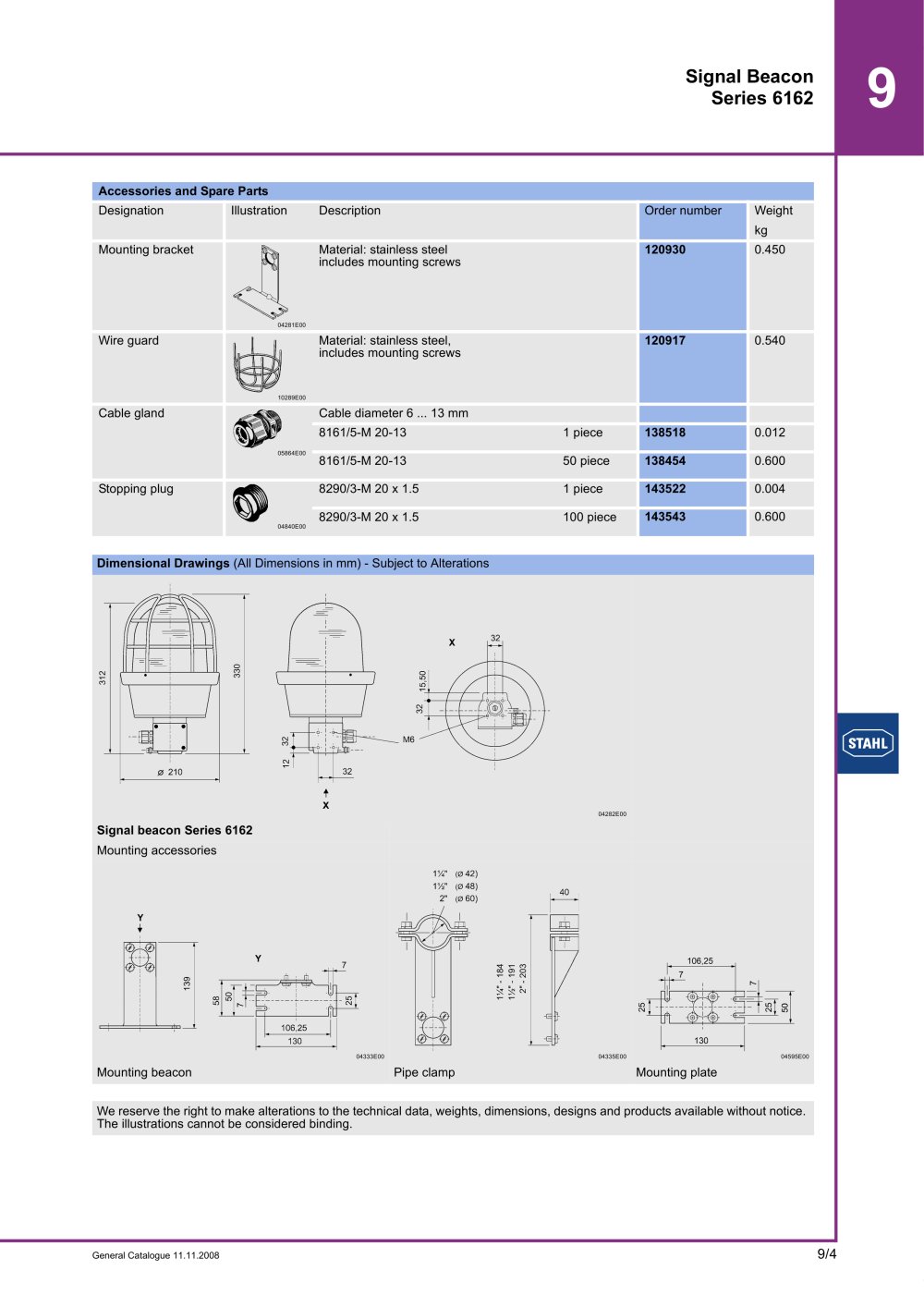

9/4 9 General Catalogue 11.11.2008 Signal Beacon Series 6162 Mounting bracket 04281E00 Material: stainless steel includes mounting screws 120930 0.450 Wire guard 10289E00 Material: stainless steel, includes mounting screws 120917 0.540 Cable gland 05864E00 Cable diameter 6 ... 13 mm 138518 0.012 138454 0.600 Stopping plug 04840E00 143522 0.004 143543 0.600 Dimensional Drawings (All Dimensions in mm) - Subject to Alterations 04282E00 Signal beacon Series 6162 Mounting accessories 04333E00 04335E00 04595E00 Mounting beacon Pipe clamp Mounting plate We reserve the right to make alterations to the technical data, weights, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Accessories and Spare Parts Designation Illustration Description Order number Weight kg 8161/5-M 20-13 1 piece 8161/5-M 20-13 50 piece 8290/3-M 20 x 1.5 1 piece 8290/3-M 20 x 1.5 100 piece
