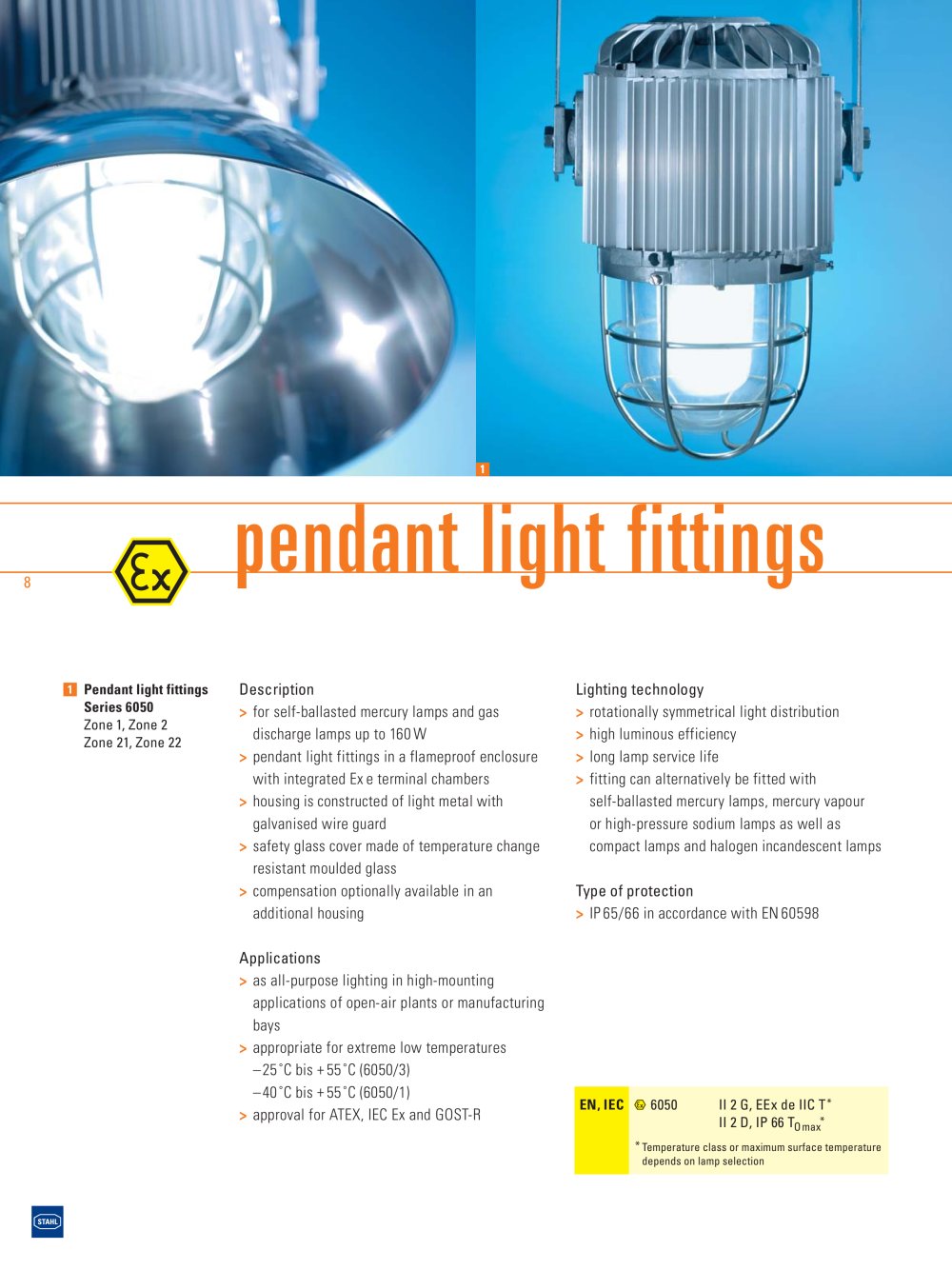

Lighting - 9224 pendant light fittings

Lighting technology > rotationally symmetrical light distribution
1 Pendant light fittings Series 6050 Zone1, Zone 2 Zone 21, Zone 22 Description > high luminous efficiency > for self-ballasted mercury lamps and gas discharge lamps up to 160W > long lamp service life > fitting can alternatively be fitted with self-ballasted mercury lamps, mercury vapour or high-pressure sodium lamps as well as compact lamps and halogen incandescent lamps > pendant light fittings in a flameproof enclosure with integrated Exe terminal chambers Type of protection > IP65/66 in accordance with EN60598 > housingisconstructed of light metalwithgalvanised wire guard > safety glass cover made of temperature changeresistant moulded glass > compensation optionally available in anadditional housing Applications > as all-purpose lighting in high-mounting applications of open-air plants or manufacturing bays > appropriate for extreme low temperatures–25ËšC bis +55ËšC (6050/3)–40ËšC bis +55ËšC (6050/1) > approval for ATEX, IEC Ex and GOST-R
EN,IEC 6050II 2 G, EEx de IIC T * II 2 D, IP 66 T Omax* *Temperature class or maximum surface temperaturedepends on lamp selection
