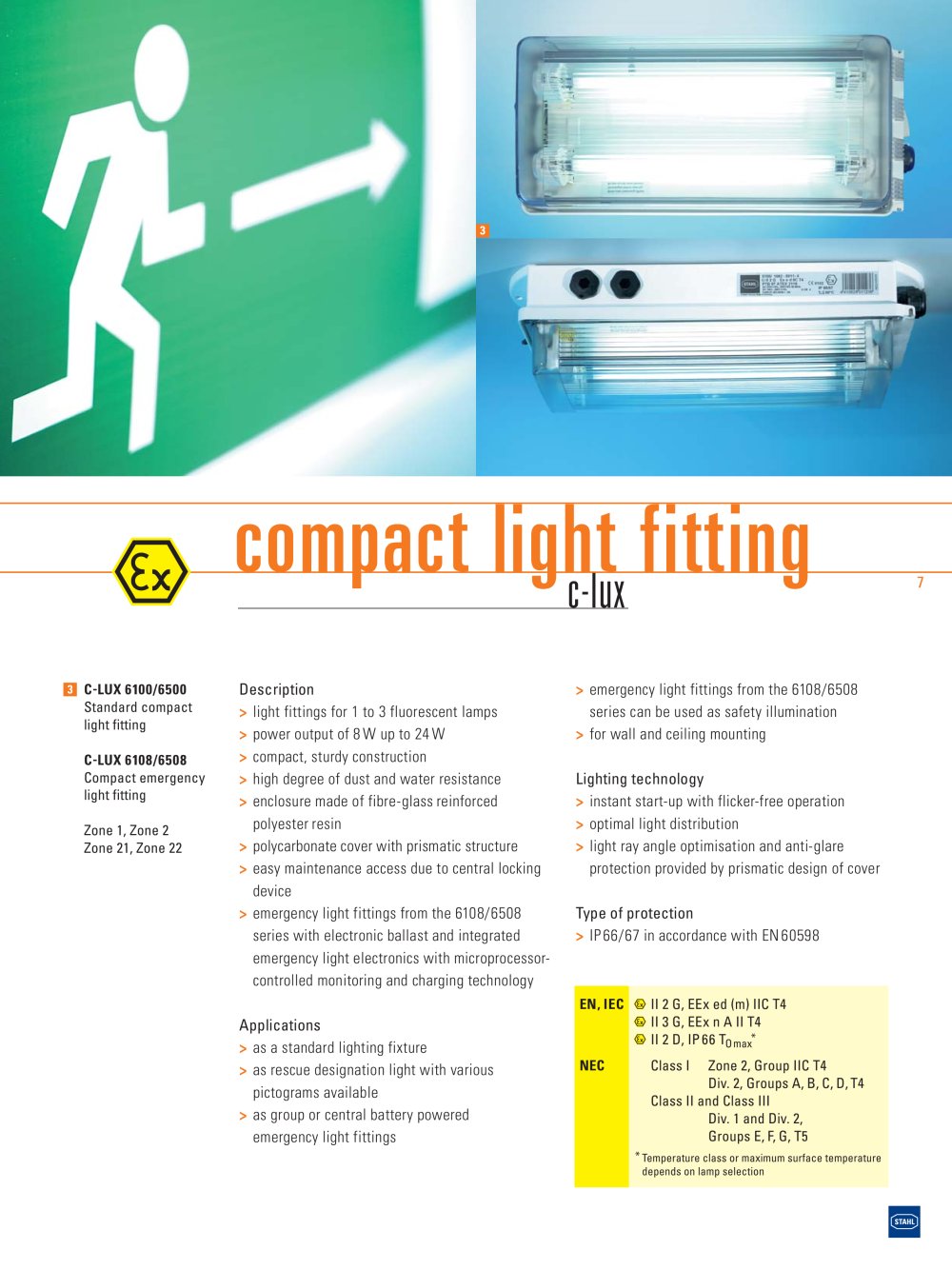

Lighting - 9224 compactlightfitting

c-lux

7 > emergency light fittings from the 6108/6508 series can be used as safety illumination > for wall and ceiling mounting
3 C-LUX 6100/6500 Description Lighting technology
Standard compact light fitting > light fittings for 1 to 3 fluorescent lamps > instant start-up with flicker-free operation
C-LUX 6108/6508 Compact emergency light fittingZone 1, Zone 2Zone 21, Zone 22 > power output of 8W up to 24W > optimal light distribution > compact, sturdy construction > light ray angle optimisation and anti-glareprotection provided by prismatic design of cover > high degree of dust and water resistance > enclosure made of fibre-glassreinforced polyesterresin Type of protection > polycarbonate cover with prismatic structure > IP66/67 in accordance with EN60598 > easy maintenance access due to central locking device > emergency light fittings from the 6108/6508series with electronic ballast and integrated emergency light electronics with microprocessor- controlled monitoring and charging technology Applications > as a standard lighting fixture > as rescue designation light with variouspictograms available
EN,IECNEC II 2 G, EEx ed (m) IIC T4II 3 G, EEx n A II T4 II 2 D, IP66 T > as group or central battery powered emergency light fittings
Omax* Class I Zone 2, Group IIC T4Div. 2, Groups A,B,C,D,T4Class II and Class IIIDiv. 1 and Div. 2, Groups E,F,G, T5 *Temperature class or maximum surface temperaturedepends on lamp selection
