13

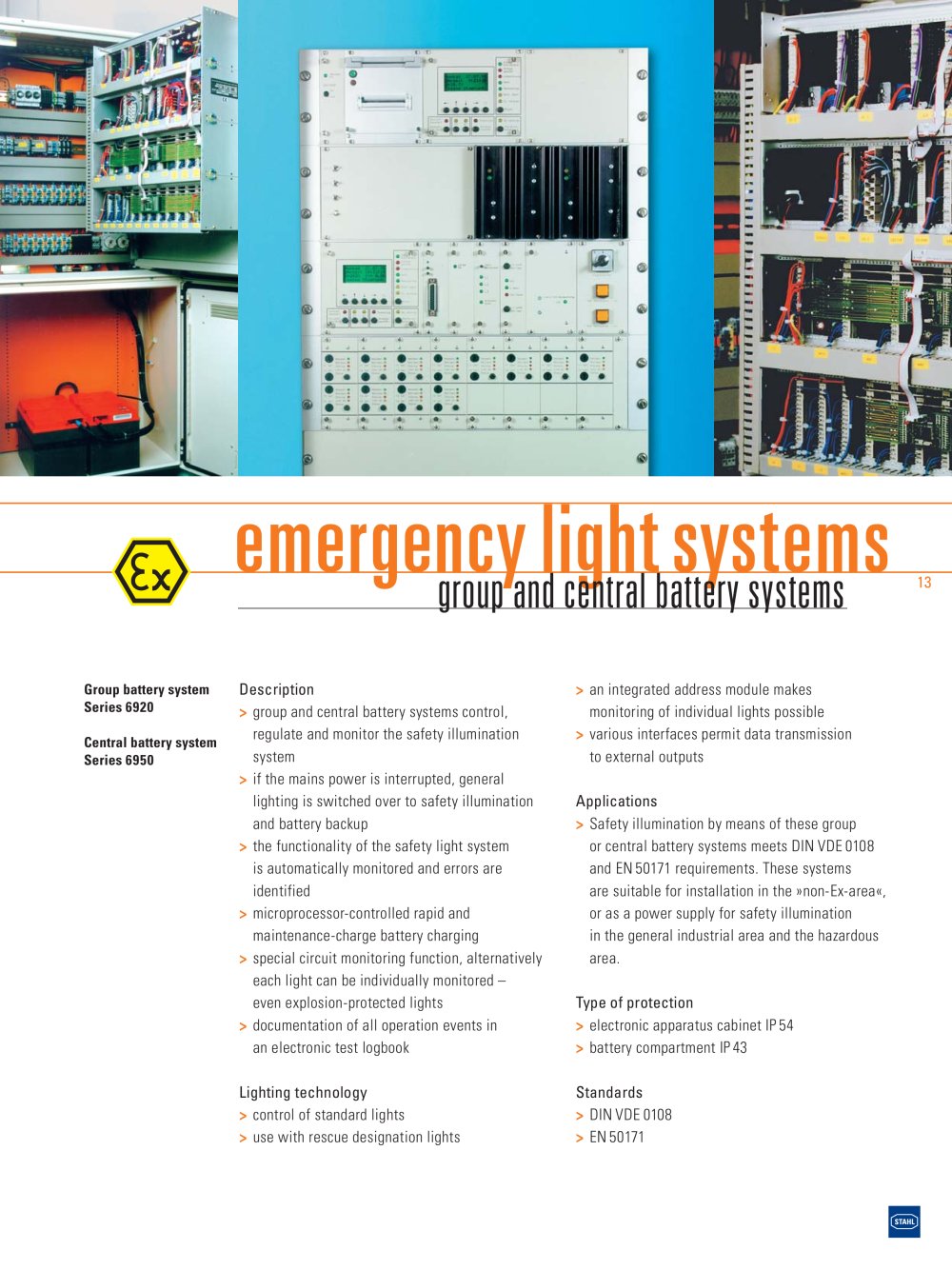

Lighting - 9224 emergencylightsystems

> an integrated address module makes monitoring of individual lights possible > various interfaces permit data transmission to external outputs

group and centralbattery systems

Type of protection Applications > electronic apparatus cabinet IP54 > > Safety illumination by means of these group or central battery systems meets DINVDE0108 and EN50171 requirements. These systems are suitable for installation in the »non-Ex-area«, or as a power supply for safety illumination in the general industrial area and the hazardous area. battery compartment IP43
Group battery system Series 6920Central battery system Series 6950 Description Standards > group and central battery systems control, regulate and monitor the safety illumination system > DINVDE0108 > if the mains power is interrupted, general lighting is switched over to safety illumination and battery backup > EN50171 > the functionality of the safety light system is automatically monitored and errors are identified > microprocessor-controlled rapid and maintenance-charge battery charging > special circuit monitoring function, alternatively each light can be individually monitored – even explosion-protected lights > documentation of all operation events in an electronic test logbook Lighting technology > control of standard lights > use with rescue designation lights
