3 > asymmetrical flat optics spotlight forilluminating extensive areas from a laterally mounted light position > strong, direct-where-you-need-it light beam 11 > higher luminous efficiency available if needed Light technology > symmetrical light distribution can be adjusted narrow or broad-beamed. Alternatively, an asymmetrical reflector can be inserted

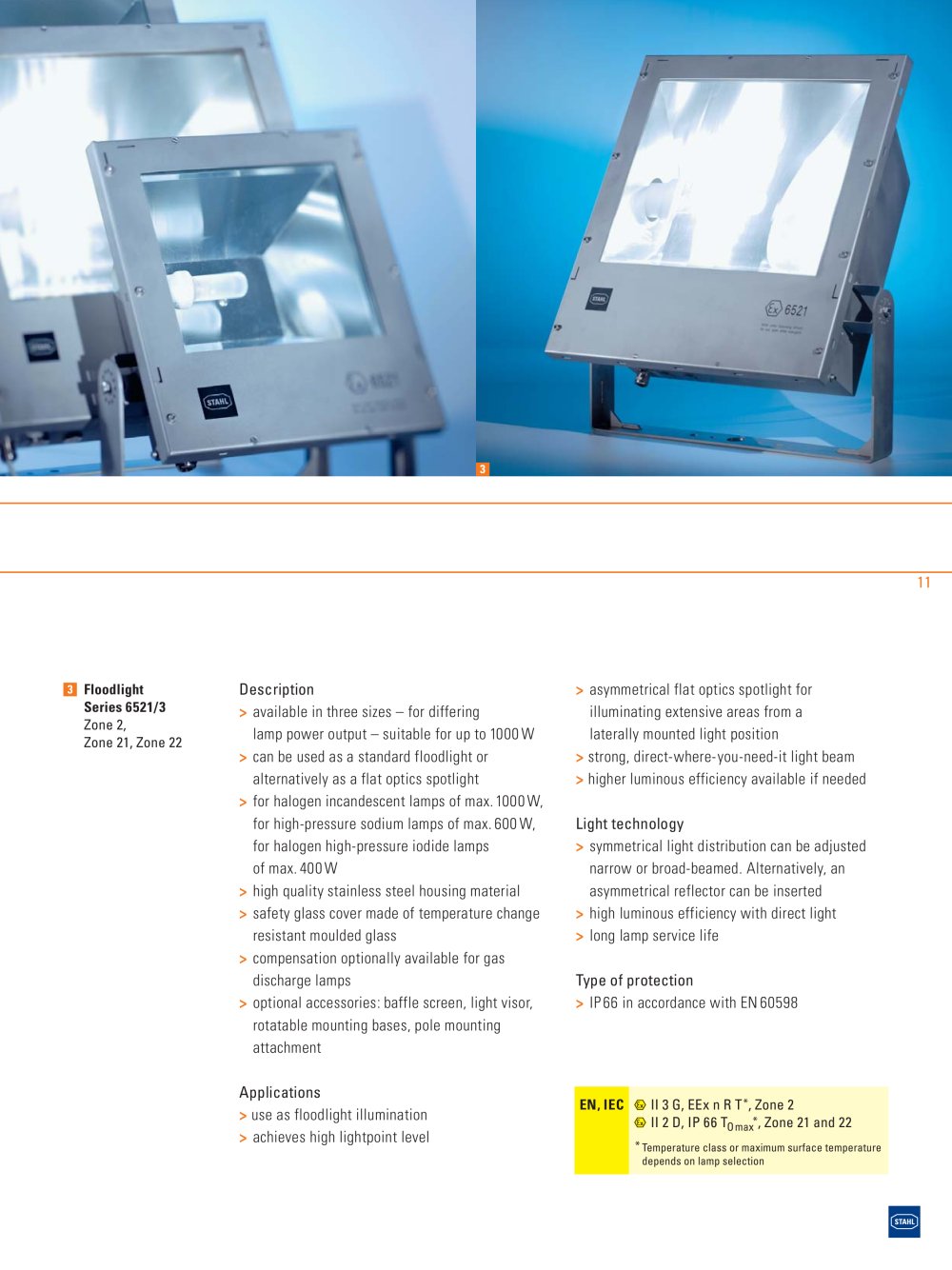

3 FloodlightSeries 6521/3 Zone 2,Zone 21, Zone 22 Description > high luminous efficiency with direct light > available in three sizes – for differing lamp power output – suitable for up to1000W > long lamp service life > can be used as a standard floodlight or alternatively as a flat optics spotlight Type of protection > IP66in accordance with EN60598 > > for halogen incandescent lamps of max.1000W, for high-pressure sodium lamps of max.600W, for halogen high-pressure iodide lamps of max.400W high quality stainless steel housing material > safety glass cover made of temperature changeresistant moulded glass > compensation optionally available for gasdischarge lamps > optional accessories:baffle screen, light visor, rotatable mounting bases, pole mounting attachment Applications > use as floodlight illumination > achieves high lightpoint level
EN,IEC II 3 G, EEx n R T * , Zone 2II 2 D, IP 66 T Omax* , Zone 21 and 22 *Temperature class or maximum surface temperaturedepends on lamp selection
