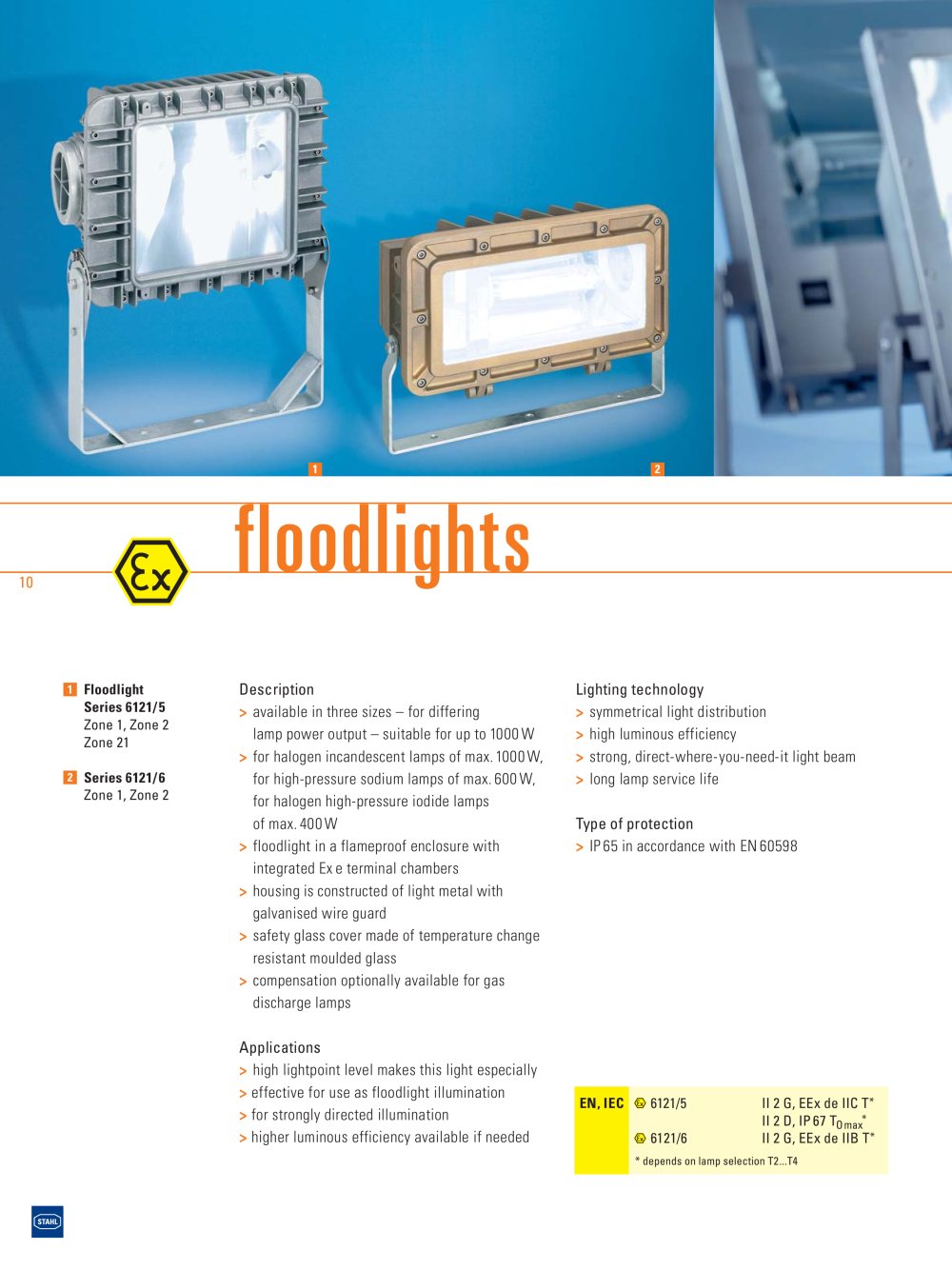

Lighting - 9224 floodlights

Lighting technology > symmetrical light distribution > high luminous efficiency > strong, direct-where-you-need-it light beam
1 FloodlightSeries 6121/5 Zone 1, Zone 2Zone 21 Description > long lamp service life > available in three sizes – for differing lamp power output – suitable for up to1000W
Series 6121/6 Type of protection
Zone 1, Zone 2 > > for halogen incandescent lamps of max.1000W, for high-pressure sodium lamps of max.600W, for halogen high-pressure iodide lamps of max.400W floodlight in a flameproof enclosure withintegrated Exe terminal chambers > IP65 in accordance with EN60598
2 > housingisconstructed of light metalwithgalvanised wire guard > safety glass cover made of temperature changeresistant moulded glass > compensation optionally available for gasdischarge lamps Applications > high lightpoint level makes this light especially > effective for use as floodlight illumination > for strongly directed illumination > higher luminous efficiency available if needed
EN,IEC 6121/5II 2 G, EEx de IIC T * II 2 D, IP67 T Omax* 6121/6II 2 G, EEx de IIB T ** depends on lamp selection T2...T4
