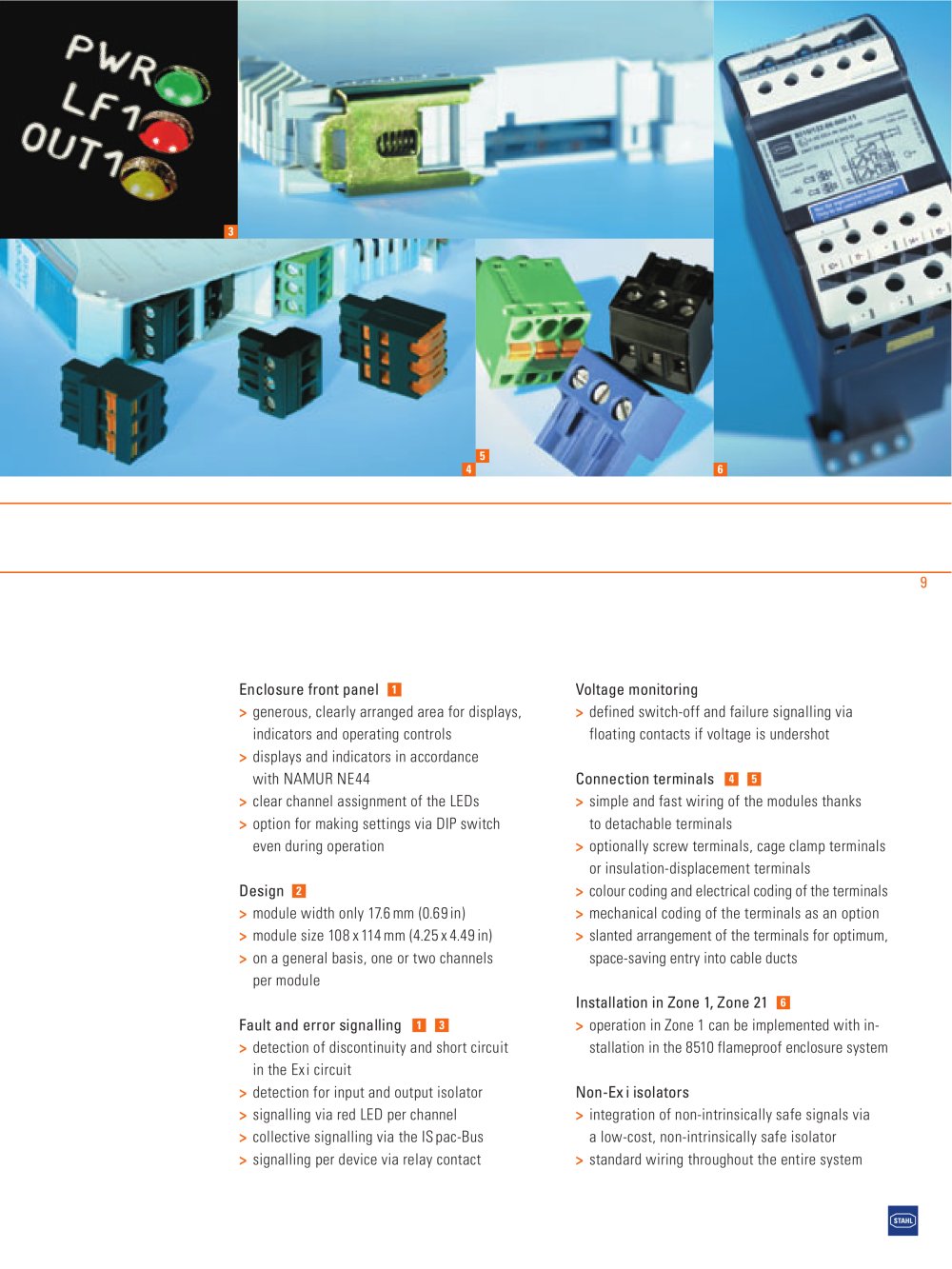

| Enclosure front panel F generous, clearly arranged area for displays, indicators and operating controls > displays and indicators in accordance with NAMUR NE44 > clear channel assignment of the LEDs > option for making settings via DIP switch even during operation Design |T > module width only 17.6 mm (0.69 in) > module size 108x114mm (4.25x4.49in) > on a general basis, one or two channels per module Fault and error signalling 111^ > detection of discontinuity and short circuit in the Exi circuit > detection for input and output isolator > signalling via red LED per channel > collective signalling via the ISpac-Bus > signalling per device via relay contact | |||||||||||||||||||||||||||||
| Voltage monitoring > defined switch-off and failure signalling via floating contacts if voltage is undershot Connection terminals l]l ^ > simple and fast wiring of the modules thanks to detachable terminals > optionally screw terminals, cage clamp terminals or insulation-displacement terminals > colour coding and electrical coding of the terminals > mechanical coding of the terminals as an option > slanted arrangement of the terminals for optimum, space-saving entry into cable ducts Installation in Zone 1, Zone 21 ^ > operation in Zone 1 can be implemented with installation in the 8510 flameproof enclosure system Non-Exi isolators > integration of non-intrinsically safe signals via a low-cost, non-intrinsically safe isolator > standard wiring throughout the entire system | |||||||||||||||||||||||||||||
