8

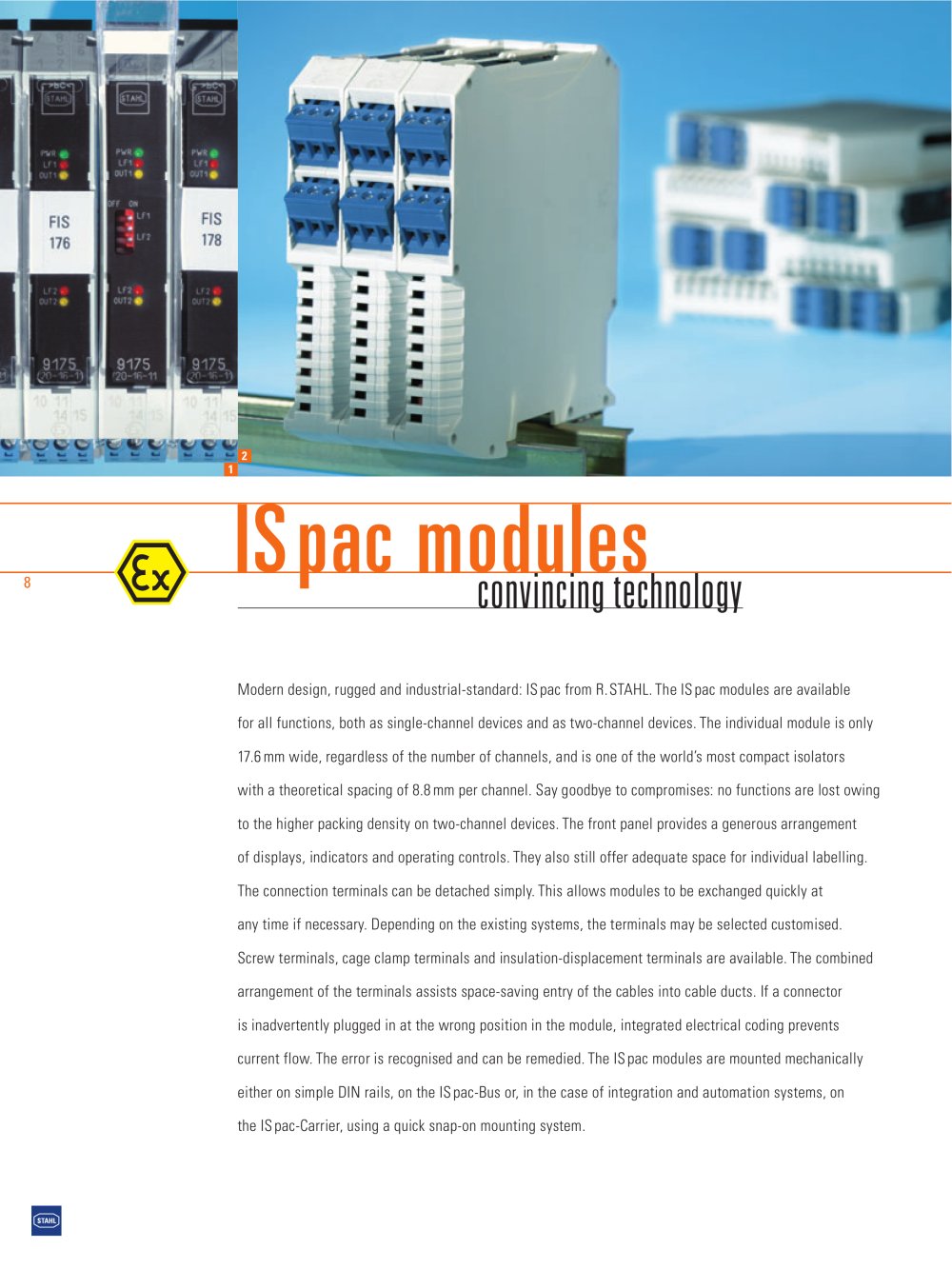

ISpac isolators - 9224 ISpac modules

convincing technology

Modern design, rugged and industrial-standard: ISpac from R.STAHL.The ISpac modules are available for all functions, both as single-channel devices and as two-channel devices.The individual module is only 17.6mm wide, regardless of the number of channels, and is one of the world’s most compact isolators with a theoretical spacing of 8.8mm per channel. Say goodbye to compromises: no functions are lost owing to the higher packing density on two-channel devices.The front panel provides a generous arrangement of displays, indicators and operating controls.They also still offer adequate space for individual labelling. The connection terminals can be detached simply.This allows modules to be exchanged quickly at any time if necessary. Depending on the existing systems, the terminals may be selected customised. Screw terminals, cage clamp terminals and insulation-displacement terminals are available.The combined arrangement of the terminals assists space-saving entry of the cables into cable ducts. If a connector is inadvertently plugged in at the wrong position in the module, integrated electrical coding prevents current flow.The error is recognised and can be remedied.The ISpac modules are mounted mechanically either on simple DIN rails, on the ISpac-Bus or, in the case of integration and automation systems, on the ISpac-Carrier, using a quick snap-on mounting system.
