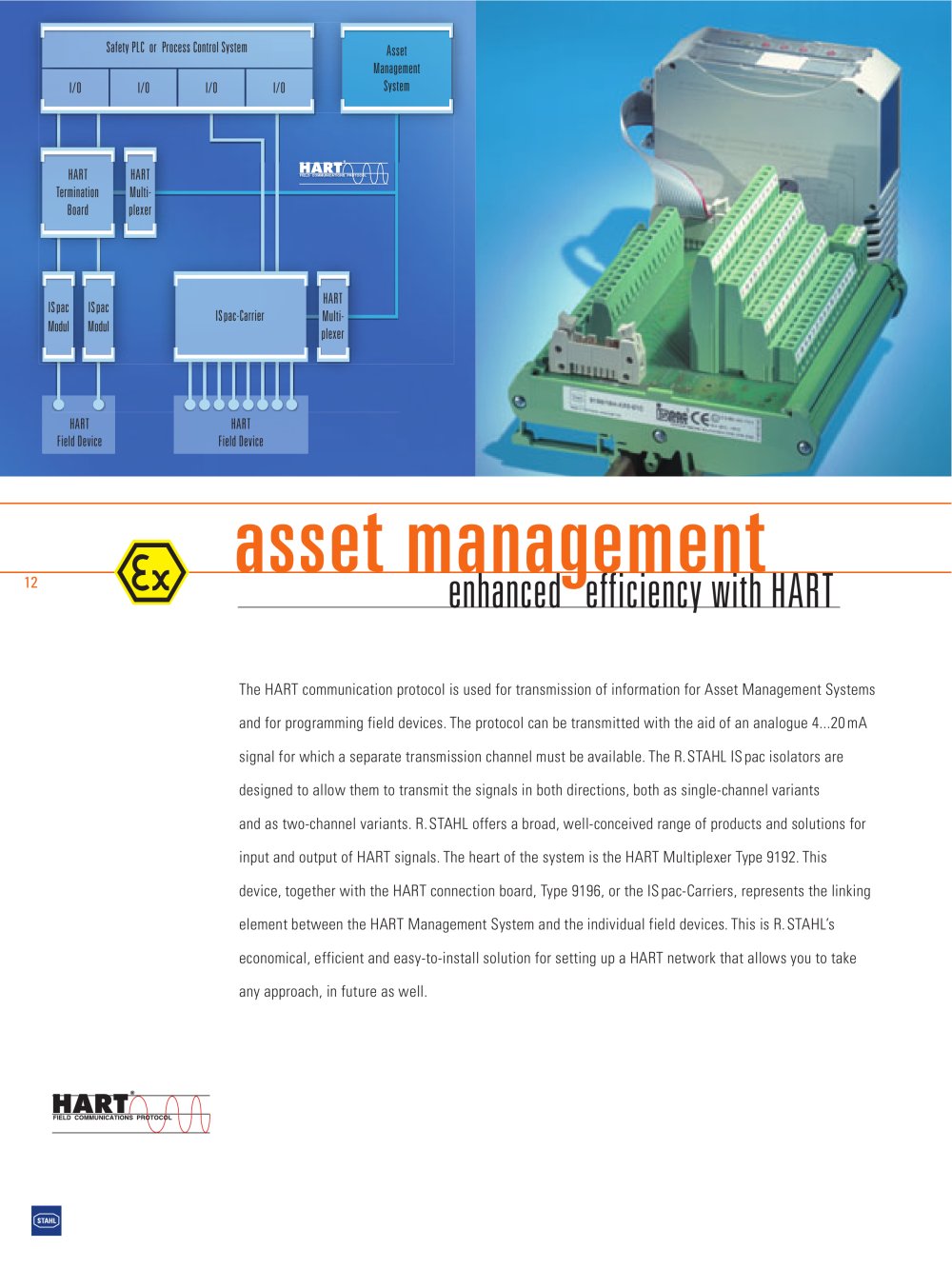

| asset m | Rnhannfiri RfflnlRnny with HART | ||||||||||||
| 12 | |||||||||||||
| The HART communication protocol is used for transmission of information for Asset Management Systems and for programming field devices. The protocol can be transmitted with the aid of an analogue 4...20 mA signal for which a separate transmission channel must be available. The R.STAHL ISpac isolators are designed to allow them to transmit the signals in both directions, both as single-channel variants and as two-channel variants. R. STAHL offers a broad, well-conceived range of products and solutions for input and output of HART signals. The heart of the system is the HART Multiplexer Type 9192. This device, together with the HART connection board, Type 9196, or the ISpac-Carriers, represents the linking element between the HART Management System and the individual field devices. This is R.STAHL's economical, efficient and easy-to-install solution for setting up a HART network that allows you to take any approach, in future as well. | |||||||||||||
| HART | |||||||||||||
| FIELD COMMUNICATIONS PRI | |||||||||||||
