> Compact system structure thanks to 8 or 16-channel modules

> Hot-Swap of all I/O modules, power supply and communication modules

> Easy installation on standard DIN rails

> Power supply either DC or AC

> Optical ring with of fibre-optic cable

> Optional Servicebus for commissioning, fault-finding and HART communication

> Complete HART support for inputs and outputs

> Transmission of HART variables via DP V1 HART and DP V0 (cyclic data exchange)

> Extended parameter set for single modular configuration of the I/O modules

> System integration and Asset Management with FDT/DTM and EDD available

> Installation in Zone 1, Zone 2, Zone 21, Zone 22, Division 1 and Division 2

> Worldwide approvals: lECEx, ATEX, FM, CSA and CTB

> Plant Stop SIL 2; system SIL 1 in accordance with IEC 61508

> DNV and ABS approval for installation on board ships, including open deck option

> Intrinsically safe fieldbus: Profibus DP V0

and DP V1 HART in accordance with RS 485-IS, Modbus RTU

> BusRail with integrated, redundant Data/Address and Ex i Powerbus for very easy project planning

> Fieldbus with either with copper or fibre-optic cables

> Inputs and outputs: Ex ia, Ex e, Ex nL (non arcing), Ex nA (non incendive) and non-Ex connection

> High-performance digital outputs for non-intrinsi-cally safe solenoid valves

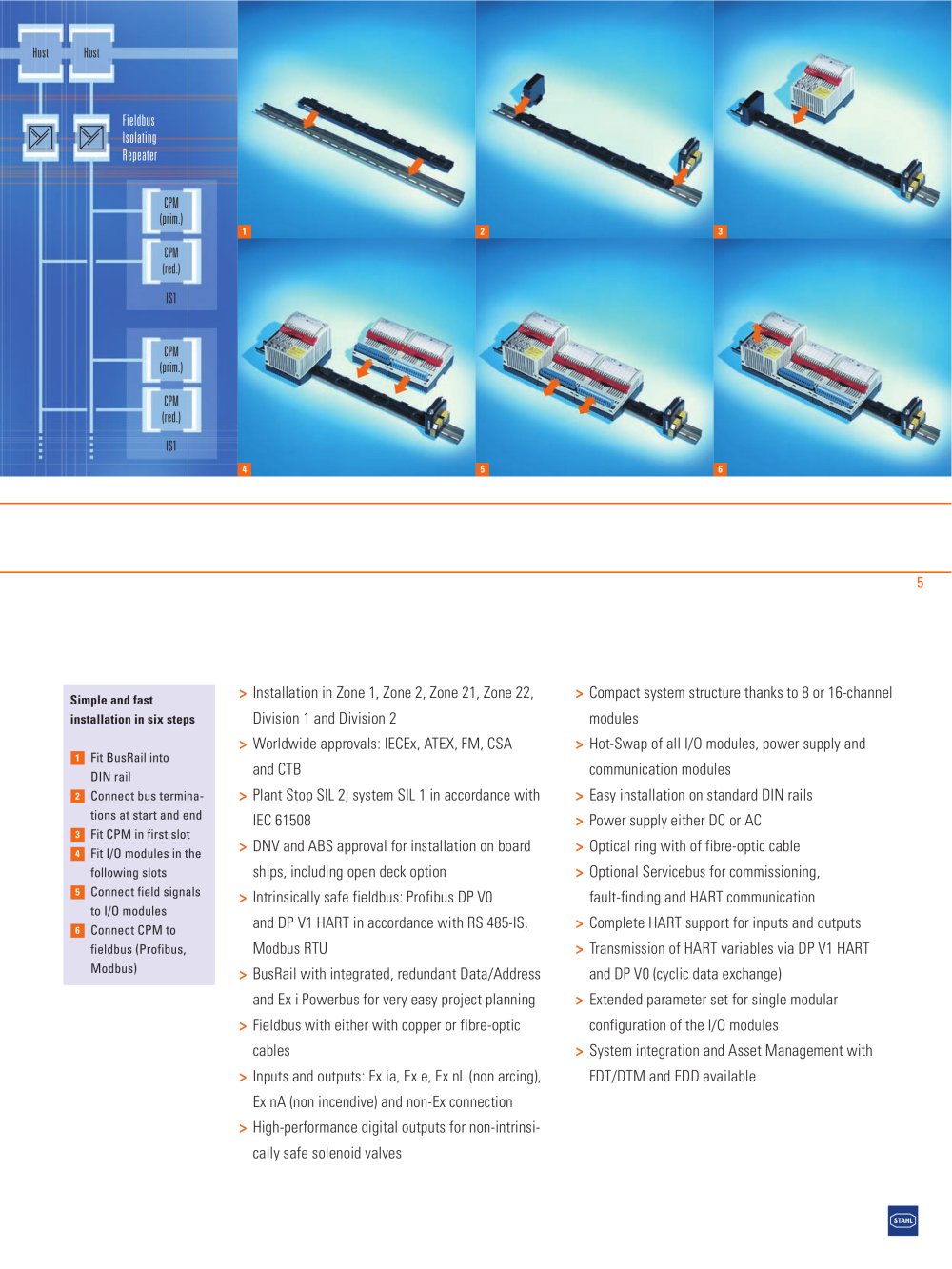

Simple and fast installation in six steps

|i| Fit BusRail into DIN rail

Q Connect bus terminations at start and end

H Fit CPM in first slot

|4| Fit I/O modules in the following slots

|s| Connect field signals to I/O modules

|| Connect CPM to fieldbus (Profibus, Modbus)
