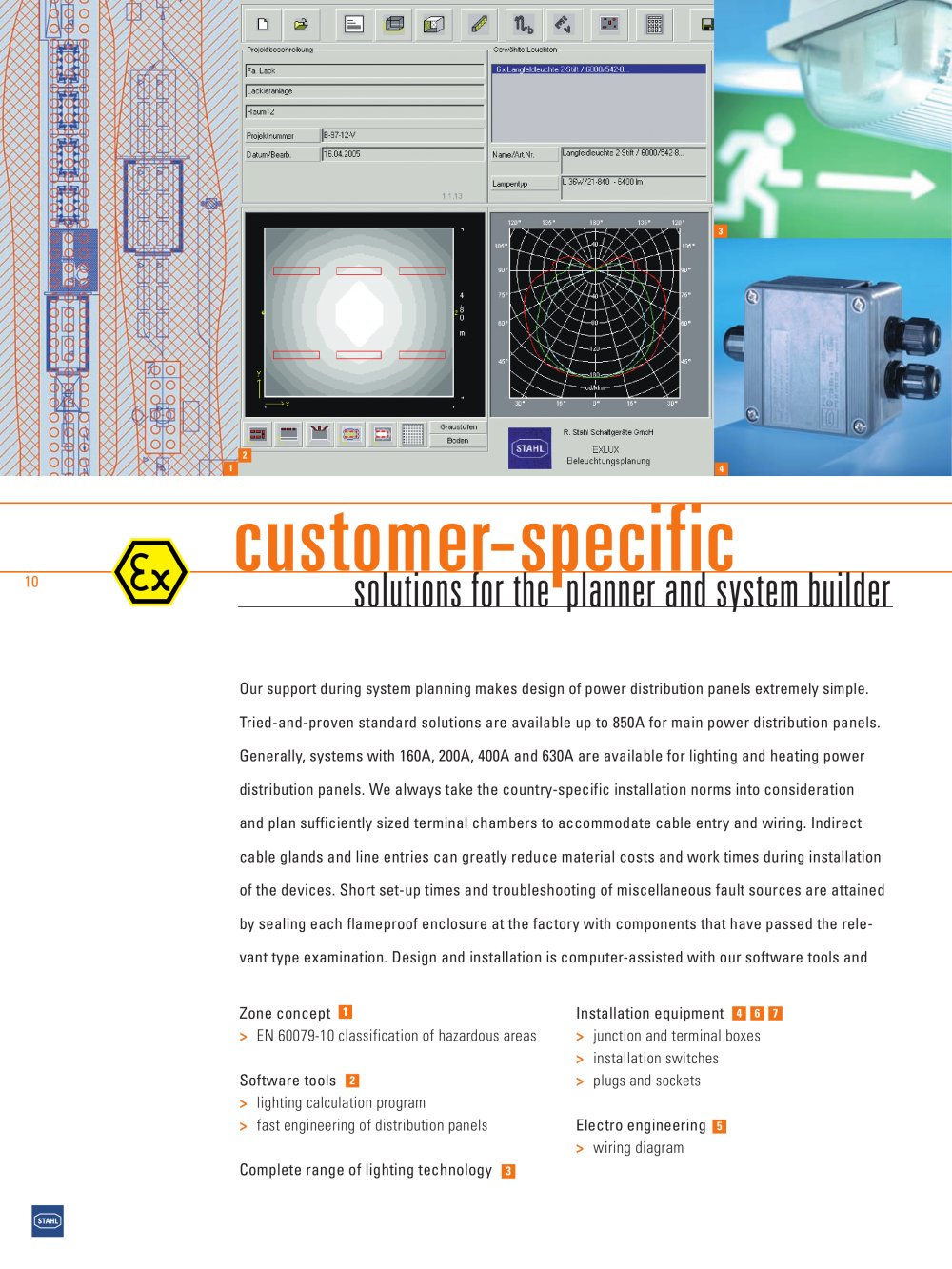

Distributing and Controlling - 9224 customer-specific

solutions for the planner and system builder

Our support during system planning makes design of power distribution panels extremely simple.Tried-and-proven standard solutions are available up to 850A for main power distribution panels. Generally, systems with 160A, 200A, 400A and 630A are available for lighting and heating power distribution panels. We always take the country-specific installation norms into consideration and plan sufficiently sized terminal chambers to accommodate cable entry and wiring. Indirect cable glands and line entries can greatly reduce material costs and work times during installation of the devices. Short set-up times and troubleshooting of miscellaneous fault sources are attained by sealing each flameproof enclosure at the factory with components that have passed the rele- vant type examination. Design and installation is computer-assisted with our software tools and Zone concept
1 Installation equipment
4 6 7 > EN 60079-10 classification of hazardous areas > junction and terminal boxes > installation switches Software tools
2 > plugs and sockets > lighting calculation program > fast engineering of distribution panels Electro engineering
5 > wiring diagram Complete range of lighting technology
3
