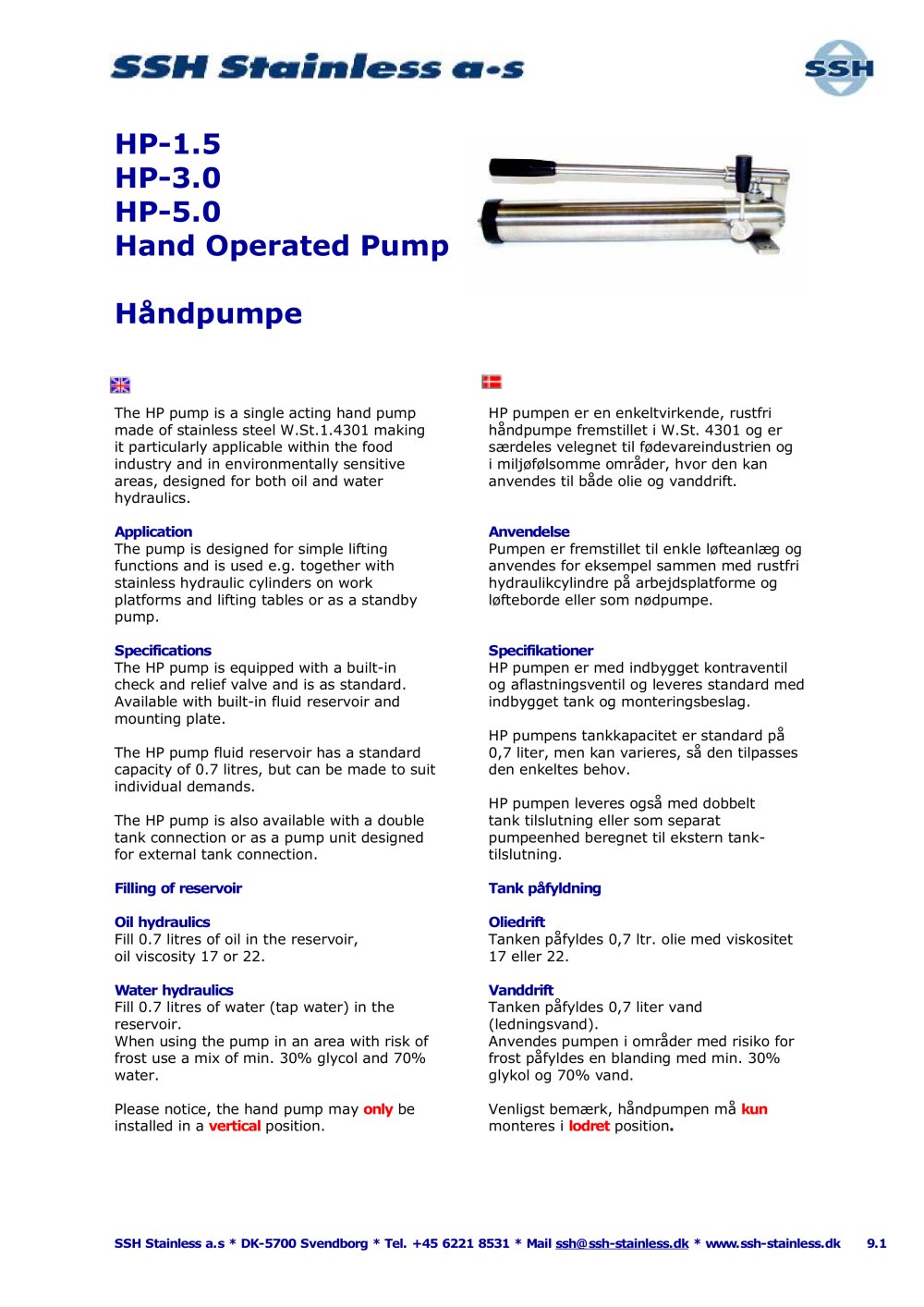

Hand Operated Pumps - SSH Stainless - #1

The HP pump is a single acting hand pump made of stainless steel W.St.1.4301 making it particularly applicable within the food industry and in environmentally sensitive areas, designed for both oil and water h yd rau lics.

The pump is designed for simple lifting functions and is used e.g. together with stainless hydraulic cylinders on work platforms and lifting tables or as a standby pump.

The HP pump is equipped with a built-in check and relief valve and is as standard. Available with built-in fluid reservoir and m ou ntin g p late.

The HP pump fluid reservoir has a standard capacity of 0.7 litres, but can be made to suit individual demands.

The HP pump is also available with a double tank connection or as a pump unit designed for external tank connection.

Fill 0.7 litres of oil in the reservoir, oil viscosity 17 or 22.

Fill 0.7 litres of water (tap water) in the reservoir.

When using the pump in an area with risk of frost use a mix of min. 30% glycol and 70% water.

Please notice, the hand pump may only be installed in a vertical position.

HP pumpen er en enkeltvirkende, rustfri händpumpe fremstillet i W.St. 4301 og er saerdeles velegnet til f0devareindustrien og i milj0f0lsomme omräder, hvor den kan anvendes til bäde olie og vanddrift.

Pumpen er fremstillet til enkle l0fteanlaeg og anvendes for eksempel sammen med rustfri hydraulikcylindre pä arbejdsplatforme og l0fteborde eller som n0dpumpe.

HP pumpen er med indbygget kontraventil og aflastningsventil og leveres standard med indbygget tank og m onteringsbeslag.

HP pumpens tankkapacitet er standard pä 0,7 liter, men kan varieres, sä den tilpasses den enkeltes behov.

HP pumpen leveres ogsä med dobbelt tank tilslutning eller som separat pumpeenhed beregnet til ekstern tank-tilslutning.

Tanken päfyldes 0,7 ltr. olie med viskositet 17 eller 22.

Tanken päfyldes 0, 7 liter vand (ledningsvand).

Anvendes pumpen i omräder med risiko for frost päfyldes en blanding med min. 30% glykol og 70% vand.

Venligst bemaerk, händpumpen mä kun m on teres i lodret position.
