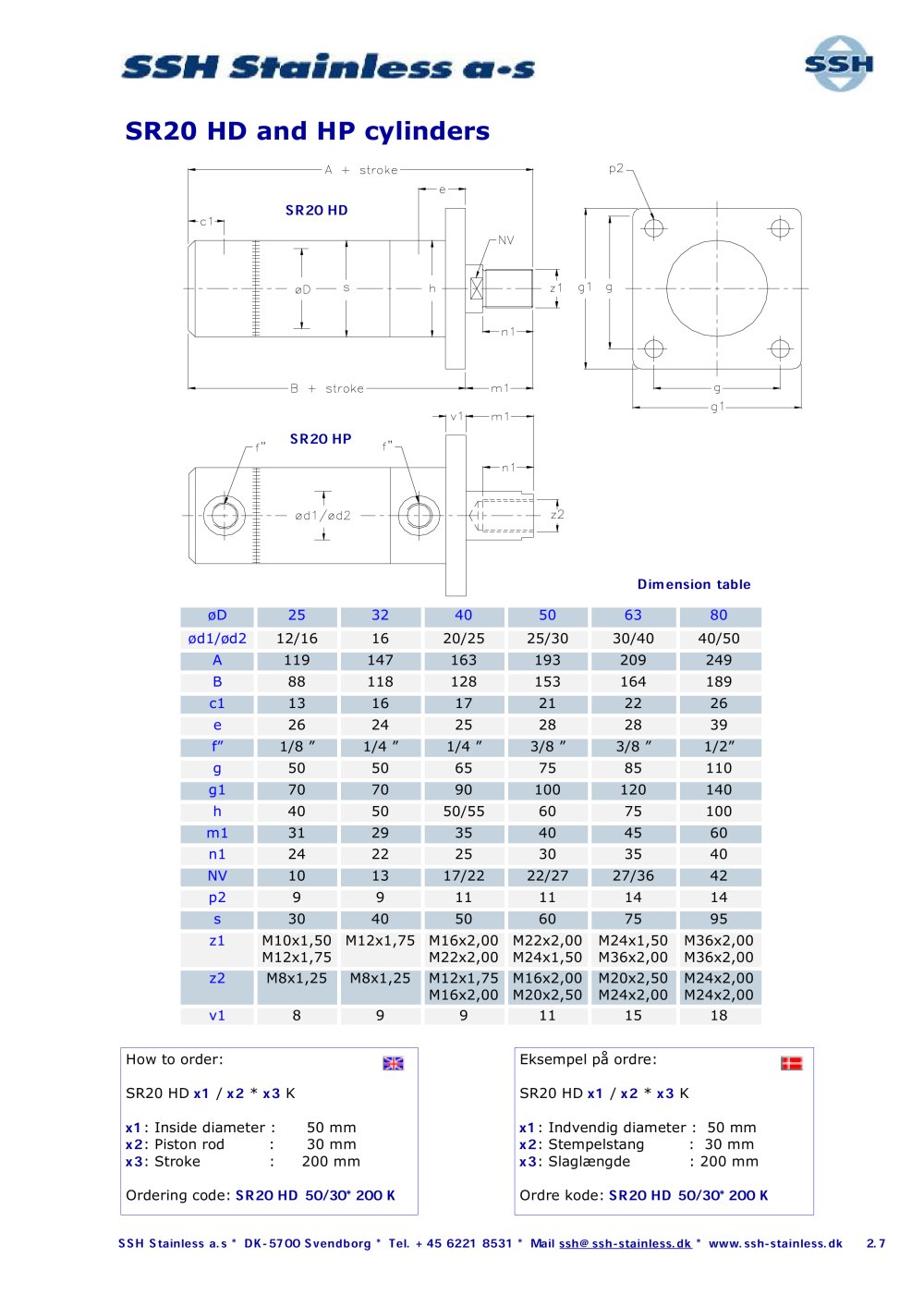

SR20HDandHPcylinders
SR20HD SR20HP D imensiontable øD 25 32 40 50 63 80 ød1/ød2 12/16 16 20/25 25/30 30/40 40/50 A 119 147 163 193 209 249 B 88 118 128 153 164 189 c1 13 16 17 21 22 26 e 26 24 25 28 28 39 f” 1/8 ” 1/4 ” 1/4 ” 3/8 ” 3/8 ” 1/2” g 50 50 65 75 85 110 g1 70 70 90 100 120 140 h 40 50 50/55 60 75 100 m1 31 29 35 40 45 60 n1 24 22 25 30 35 40 NV 10 13 17/22 22/27 27/36 42 p2 9 9 11 11 14 14 s 30 40 50 60 75 95 z1 M10x1,50M12x1,75 M12x1,75 M16x2,00 M22x2,00 M22x2,00 M24x1,50 M24x1,50 M36x2,00 M36x2,00 M36x2,00 z2 M8x1,25 M8x1,25 M12x1,75M16x2,00 M16x2,00 M20x2,50 M20x2,50 M24x2,00 M24x2,00 M24x2,00 v1 8 9 9 11 15 18 Howtoorder:SR20HD Eksempelpåordre:SR20HD x 1 / x 2 * x 3 K x 1 / x 2 * x 3 K x 1 :Insidediameter:50mm x 1 :Indvendigdiameter:50mm x 2 :Pistonrod:30mm x 2 :Stempelstang:30mm x 3 :Stroke:200mmOrderingcode: x 3 :Slaglængde:200mmOrdrekode: SR20HD50/30*200 K SR20HD50/30*200 KSSH S tainlessa . s *DK-5700 S vendborg *T el .+4562218531*M ailssh @ ssh - stainless . dk * www . ssh - stainless . dk 2.7
