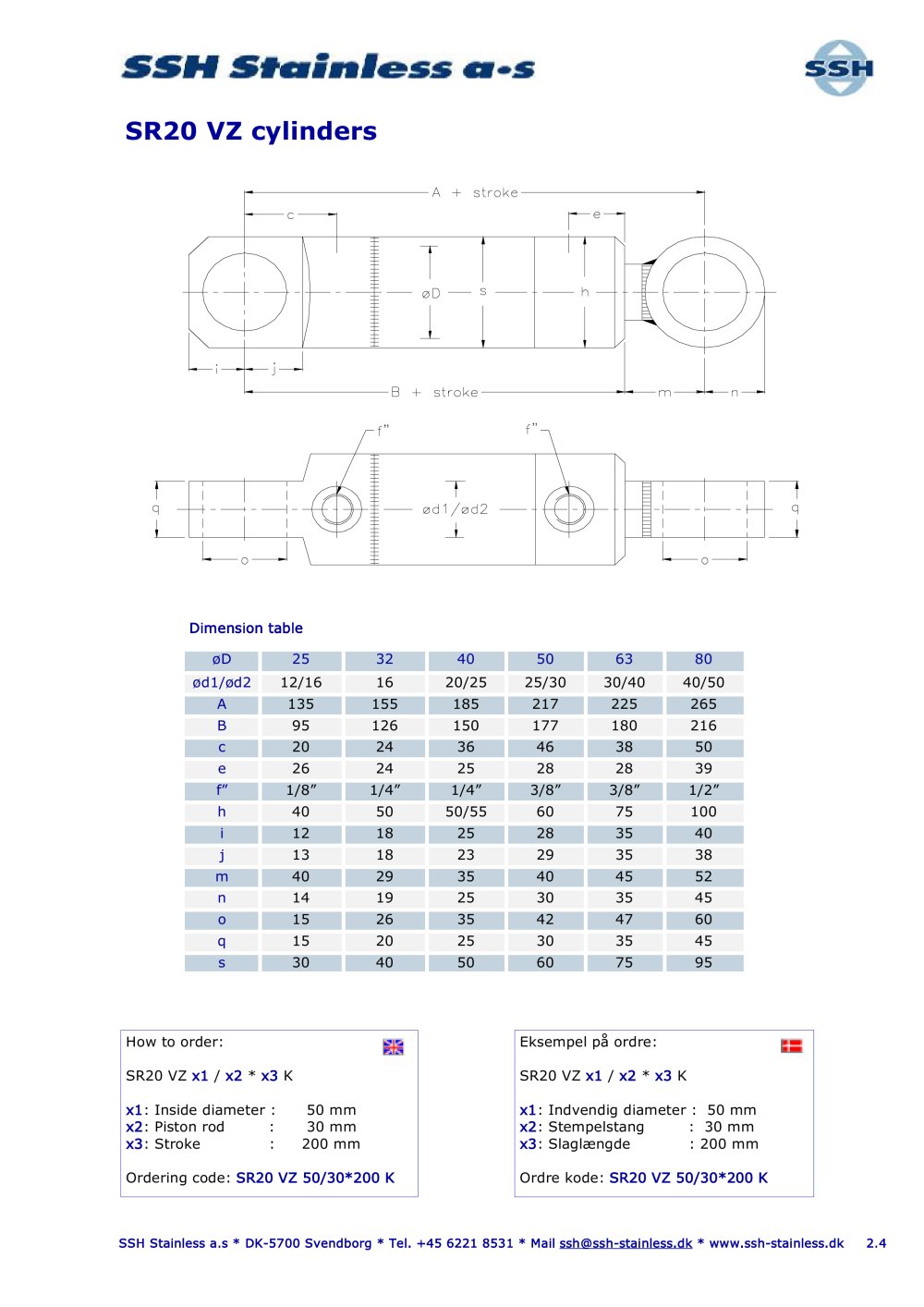

SR20VZcylinders

Dimensiontable øD 25 32 40 50 63 80 ød1/ød2 12/16 16 20/25 25/30 30/40 40/50 A 135 155 185 217 225 265 B 95 126 150 177 180 216 c 20 24 36 46 38 50 e 26 24 25 28 28 39 f” 1/8” 1/4” 1/4” 3/8” 3/8” 1/2” h 40 50 50/55 60 75 100 i 12 18 25 28 35 40 j 13 18 23 29 35 38 m 40 29 35 40 45 52 n 14 19 25 30 35 45 o 15 26 35 42 47 60 q 15 20 25 30 35 45 s 30 40 50 60 75 95 Howtoorder:SR20VZ Eksempelpåordre:SR20VZ x1 / x2 * x3 K x1 / x2 * x3 K x1 :Insidediameter:50mm x1 :Indvendigdiameter:50mm x2 :Pistonrod:30mm x2 :Stempelstang:30mm x3 :Stroke:200mmOrderingcode: x3 :Slaglængde:200mmOrdrekode: SR20VZ50/30*200 K SR20VZ50/30*200 K
SSH Stainlessa.s*DK-5700 Svendborg*Tel.+4562218531*Mailssh@ssh-stainless.dk *www.ssh- stainless.dk2.4
