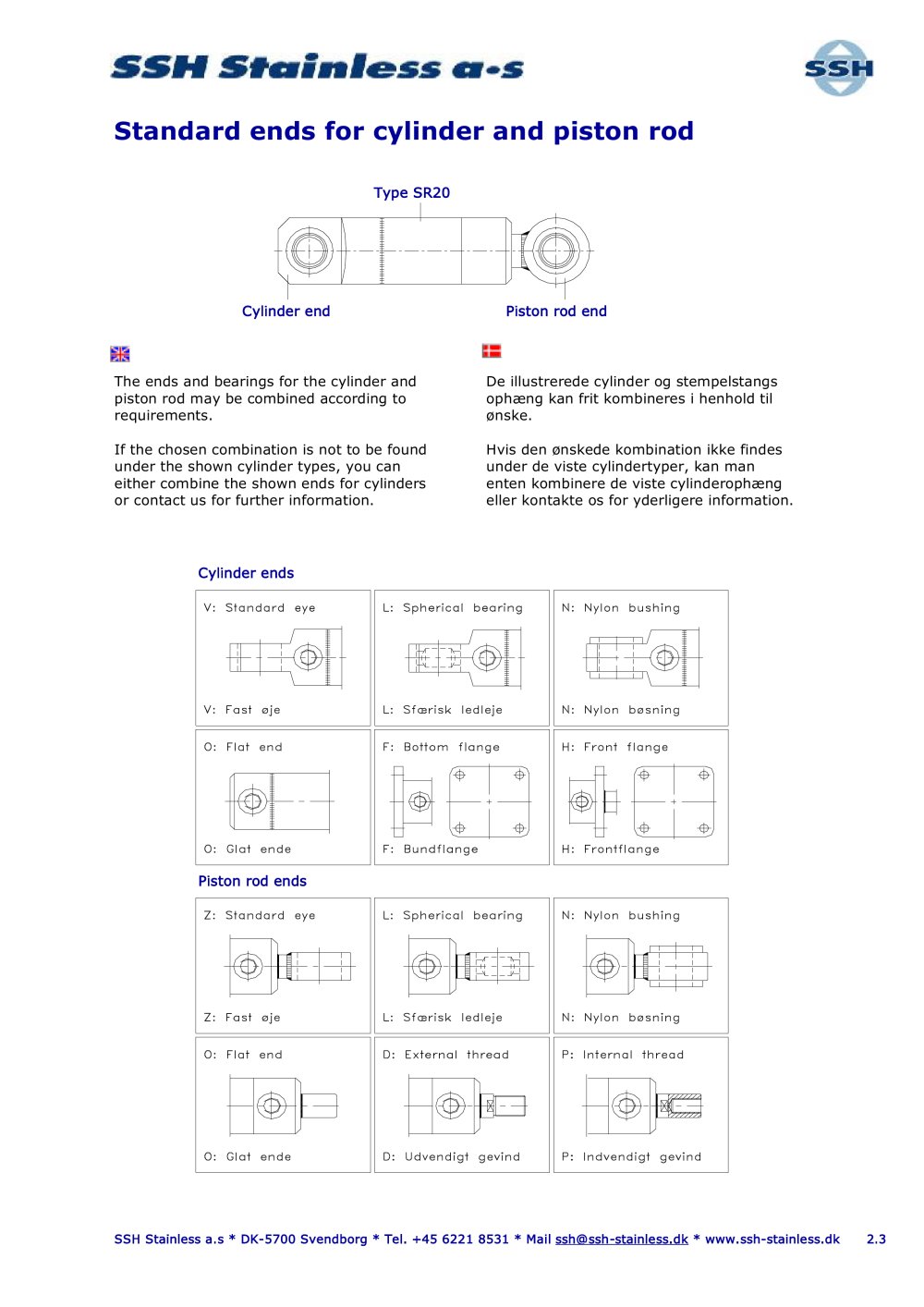

Standard ends for cylinder and piston rod

Type SR20


				\

Cylinder end

Piston rod end

-.1.-

The ends and manufacturer of bearings for the cylinder and piston rod may be combined according to requirements.

De illustrerede cylinder og stempelstangs ophœng kan frit kombineres i henhold til 0nske.

If the chosen combination is not to be found under the shown cylinder types, you can either combine the shown ends for industrial cylinders or contact us for further information.

Hvis den onskede kombination ikke findes under de viste cylindertyper, kan man enten kombinere de viste cylinderophœng eller kontakte os for yderligere information.

Cylinder ends

V: Standard eye

L: Spherical bearing manufacturer

N: Nylon bushing

V: Fast oje

L: Sfaerisk ledleje

N: Nylon bosning

O: Flat end

F: Bottom flange

^ I ^

H: Front flange

O: Glat ende

F: Bundf lang«

H: Frontflange

Piston rod ends

Z: Standard eye

L: Spherical bearing

N: Nylon bushing

-i——r-

Z: Fast oje

L: Sfaerisk ledleje

N: Nylon bosning

O: Flat end

D: External thread

P: Internal thread

-SÉ

O: Glat ende

D: Udvendigt gevind

P: Indvendigt gevind

SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-stainless.dk 2.3
