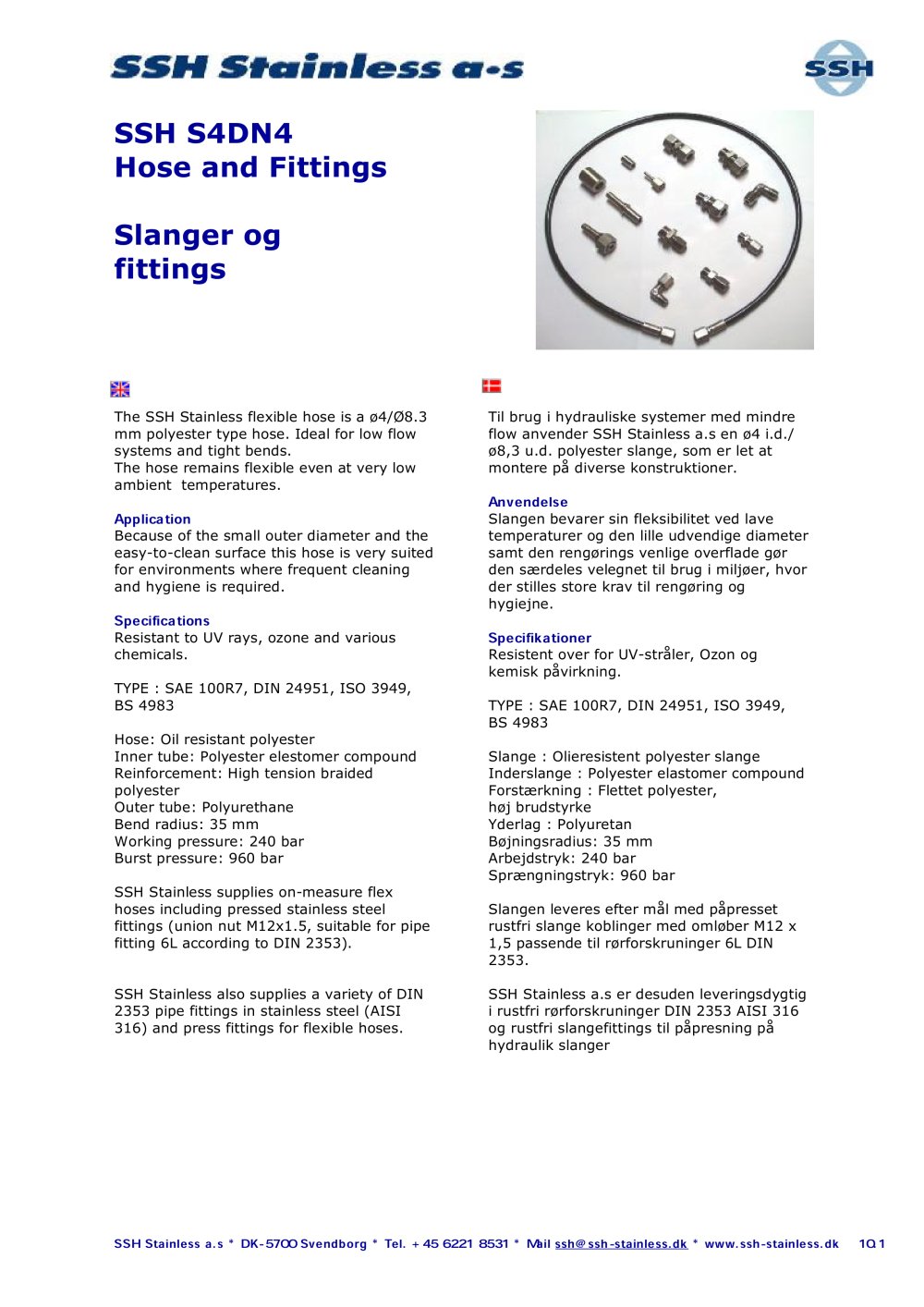

| SSH S4DN4 Hose and Fittings Slanger og fittings | ||||||||||||
| The SSH Stainless flexible hose is a 04/08.3 mm polyester type hose. Ideal for low flow systems and tight bends. The hose remains flexible even at very low ambient temperatures. Application Because of the small outer diameter and the easy-to-clean surface this hose is very suited for environments where frequent cleaning and hygiene is required. Specifications ResistanttoUVrays, ozone and various chemicals. TYPE : SAE 100R7, DIN 24951, ISO 3949, BS 4983 Hose: Oil resistant polyester Inner tube: Polyester elestomer compound Reinforcement: High tension braided polyester Outer tube: Polyurethane Bend radius: 35 mm Working pressure: 240 bar Burst pressure: 960 bar SSH Stainless supplies on-measure flex hoses including pressed stainless steel fittings (union nut M12x1.5, suitable for pipe fitting 6L according to DIN 2353). | ||||||||||||
| Til brug i hydrauliske systemer med mindre flow anvender SSH Stainless a.s en 04 i.d./ 08,3 u.d. polyester slange, som er let at montere pā diverse konstruktioner. Anvendelse Slangen bevarer sin fleksibilitet ved lave temperaturer og den lille udvendige diameter samt den reng0rings venlige overflade g0r den sœrdeles velegnet til brug i milj0er, hvor der stilles store krav til reng0ring og hygiejne. Specifikationer Resistent over for UV-strāler, Ozon og kemisk pāvirkning. TYPE : SAE 100R7, DIN 24951, ISO 3949, BS 4983 Slange : Olieresistent polyester slange Inderslange : Polyester elastomer compound Forstœrkning : Flettet polyester, h0j brudstyrke Yderlag : Polyuretan B0jningsradius: 35 mm Arbejdstryk: 240 bar Sprœngningstryk: 960 bar Slangen leveres efter māl med pāpresset rustfri slange koblinger med oml0ber M12 x 1,5 passende til r0rforskruninger 6L DIN 2353. | ||||||||||||
| SSH Stainless also supplies a variety of DIN 2353 pipe fittings in stainless steel (AISI 316) and press fittings for flexible hoses. | SSH Stainless a.s er desuden leveringsdygtig i rustfri r0rforskruninger DIN 2353 AISI 316 og rustfri slangefittings til pāpresning pā hydraulik slanger | |||||||||||
| SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-stainless.dk 1q1 | ||||||||||||
