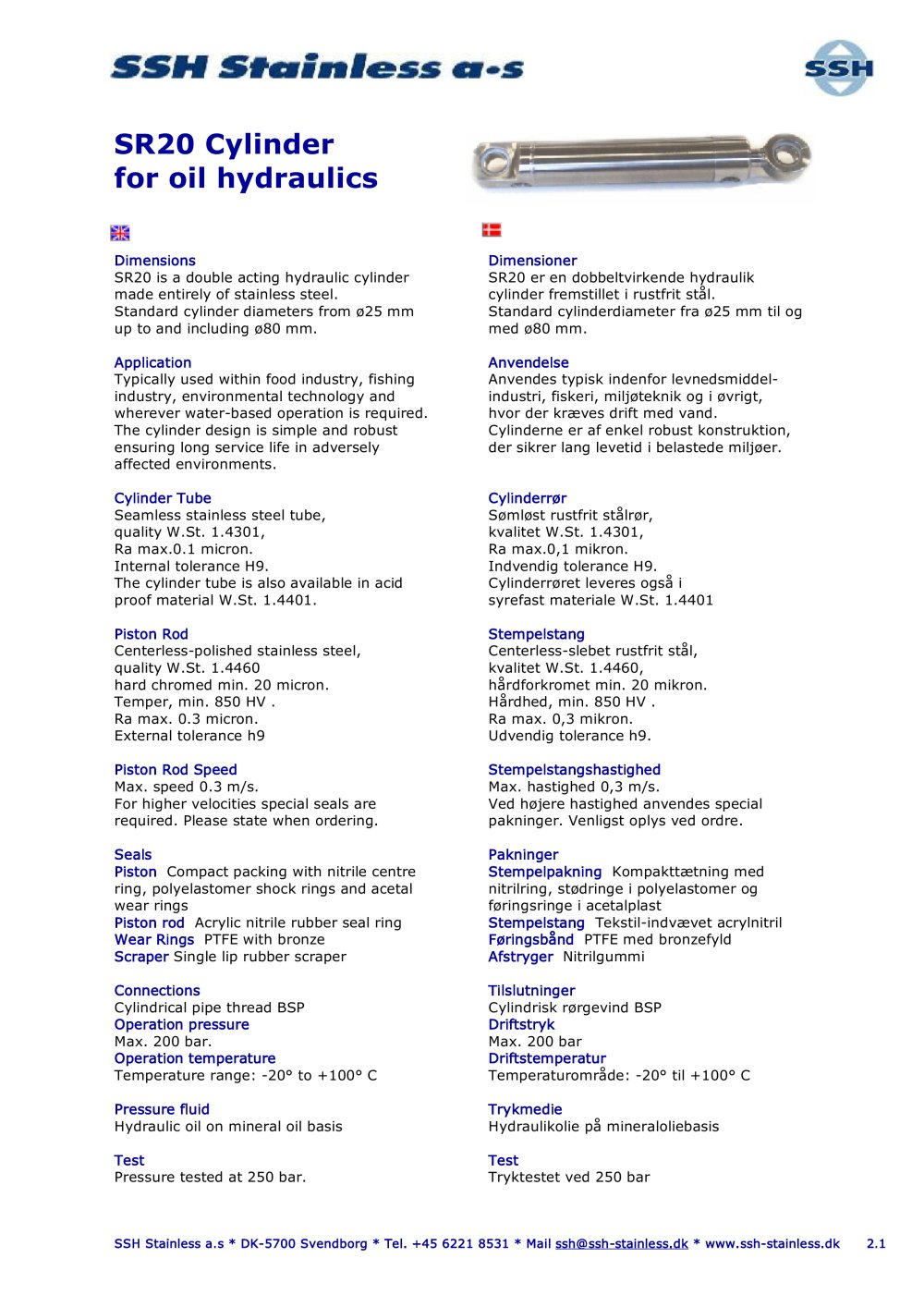

| SR20 Cylinder for oil hydraulics | ||||||||||||
| -.1.- Dimensions SR20 is a double acting hydraulic cylinder made entirely of stainless steel. Standard cylinder diameters from 025 mm up to and including 080 mm. Application Typically used within food industry, fishing industry, environmental technology and wherever water-based operation is required. The cylinder design is simple and robust ensuring long service life in adversely affected environments. | ||||||||||||
| Dimensioner SR20 er en dobbeltvirkende hydraulik cylinder fremstillet i rustfrit stal. Standard cylinderdiameter fra 025 mm til og med 08O mm. Anvendelse Anvendes typisk indenfor levnedsmiddel-industri, fiskeri, milj0teknik og i 0vrigt, hvor der krasves drift med vand. Cylinderne er af enkel robust konstruktion, der sikrer lang levetid i belastede milj0er. | ||||||||||||
| Cylinder Tube Seamless stainless steel tube, quality W.St. 1.4301, Ra max.0.1 micron. Internal tolerance H9. The cylinder tube is also available in acid proof material W.St. 1.4401. Piston Rod Centerless-polished stainless steel, quality W.St. 1.4460 hard chromed min. 20 micron. Temper,min.850 HV . Ra max. 0.3 micron. External tolerance h9 Piston Rod Speed Max. speed 0.3 m/s. For higher velocities special seals are required. Please state when ordering. Seals Piston Compact packing with nitrile centre ring, polyelastomer shock rings and acetal wear rings Piston rod Acrylic nitrile rubber seal ring Wear Rings PTFE with bronze Scraper Single lip rubber scraper Connections Cylindrical pipe thread BSP Operation pressure Max. 200 bar. Operation temperature Temperature range: -20° to +100° C Pressure fluid Hydraulic oil on mineral oil basis Test Pressure tested at 250 bar. | Cylinderror S0ml0st rustfrit stalror, kvalitet W.St. 1.4301, Ra max.0,1 mikron. Indvendig tolerance H9. Cylinderroret leveres ogsa i syrefast materiale W.St. 1.4401 Stempelstang Centerless-slebet rustfrit stal, kvalitet W.St. 1.4460, hardforkromet min. 20 mikron. Hardhed, min. 850 HV . Ra max. 0,3 mikron. Udvendig tolerance h9. Stempelstangshastighed Max. hastighed 0,3 m/s. Ved hojere hastighed anvendes special pakninger. Venligst oplys ved ordre. Pakninger Stempelpakning Kompakttastning med nitrilring, st0dringe i polyelastomer og f0ringsringe i acetalplast Stempelstang Tekstil-indvasvet acrylnitril Foringsband PTFE med bronzefyld Afstryger Nitrilgummi Tilslutninger Cylindrisk rorgevind BSP Driftstryk Max. 200 bar Driftstemperatur Temperaturomrade: -20° til +100° C Trykmedie Hydraulikolie pa mineraloliebasis Test Tryktestet ved 250 bar | |||||||||||
| SSH Stainless a.s * DK-5700 Svendborg * Tel. +45 6221 8531 * Mail ssh@ssh-stainless.dk * www.ssh-stainless.dk 2.1 | ||||||||||||
