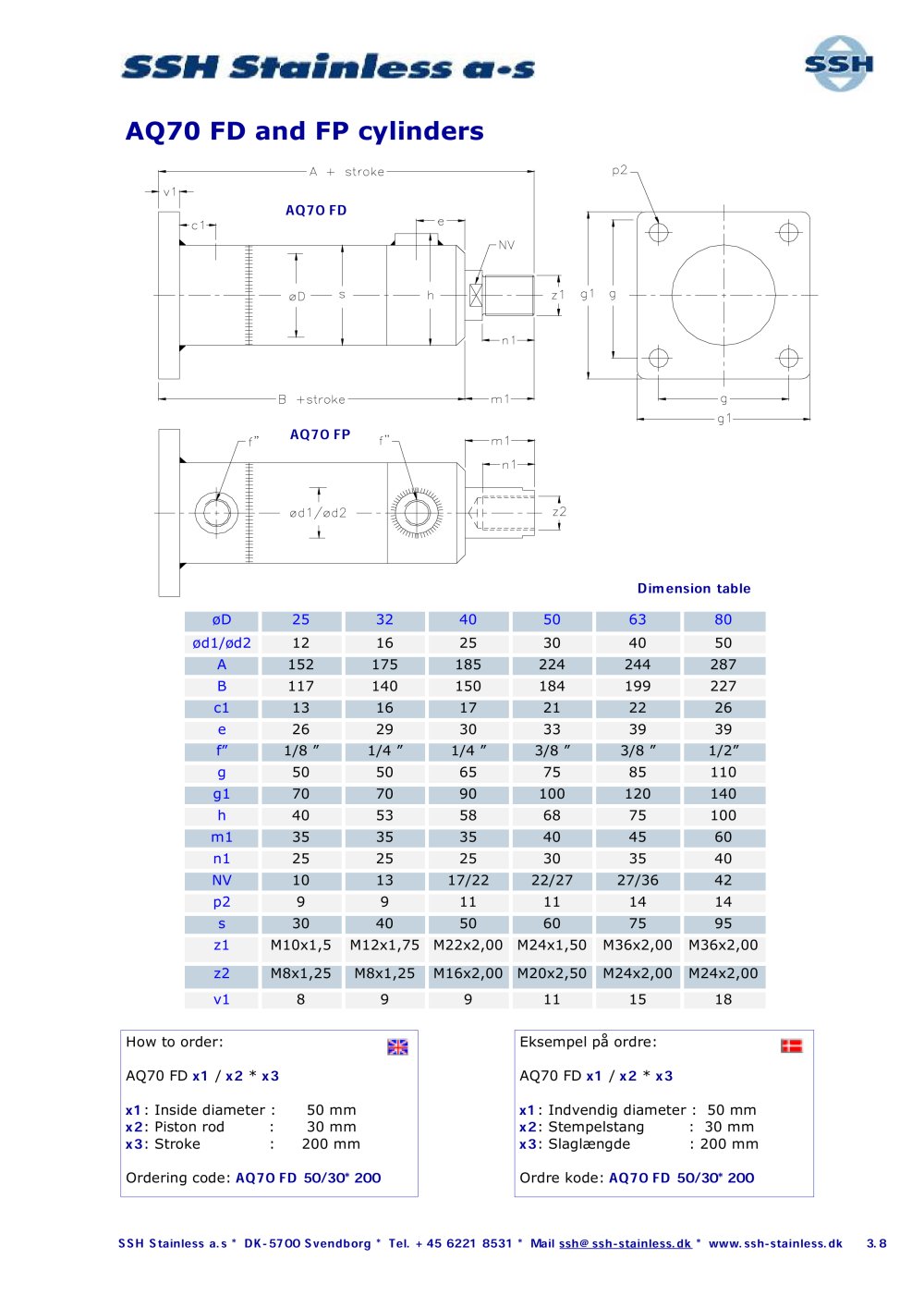

AQ70FDandFPcylinders
AQ70FD AQ70FP D imensiontable øD 25 32 40 50 63 80 ød1/ød2 12 16 25 30 40 50 A 152 175 185 224 244 287 B 117 140 150 184 199 227 c1 13 16 17 21 22 26 e 26 29 30 33 39 39 f” 1/8 ” 1/4 ” 1/4 ” 3/8 ” 3/8 ” 1/2” g 50 50 65 75 85 110 g1 70 70 90 100 120 140 h 40 53 58 68 75 100 m1 35 35 35 40 45 60 n1 25 25 25 30 35 40 NV 10 13 17/22 22/27 27/36 42 p2 9 9 11 11 14 14 s 30 40 50 60 75 95 z1 M10x1,5 M12x1,75 M22x2,00 M24x1,50 M36x2,00 M36x2,00 z2 M8x1,25 M8x1,25 M16x2,00 M20x2,50 M24x2,00 M24x2,00 v1 8 9 9 11 15 18 Howtoorder:AQ70FD Eksempelpåordre:AQ70FD x 1 / x 2 * x 3 x 1 / x 2 * x 3 x 1 :Insidediameter:50mm x 1 :Indvendigdiameter:50mm x 2 :Pistonrod:30mm x 2 :Stempelstang:30mm x 3 :Stroke:200mmOrderingcode: x 3 :Slaglængde:200mmOrdrekode: AQ70FD50/30*200 AQ70FD50/30*200SSH S tainlessa . s *DK-5700 S vendborg *T el .+4562218531*M ailssh @ ssh - stainless . dk * www . ssh - stainless . dk 3.8
