KC14

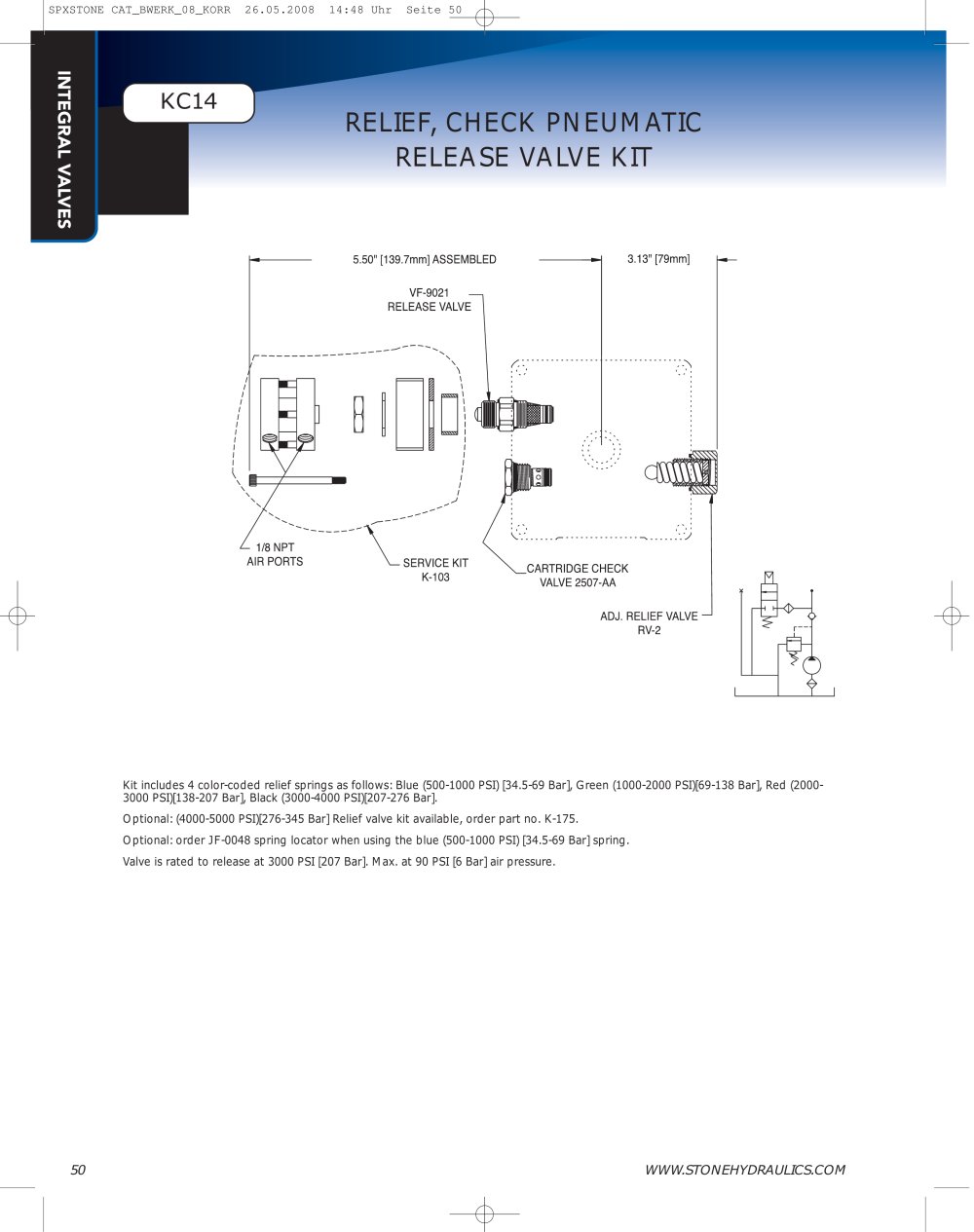

ST0608-EU - 7653 RELIEF, CHECK PNEUMATIC RELEASE VALVE KIT

Kit includes 4 color-coded relief springs as follows: Blue (500-1000 PSI) [34.5-69 Bar], Green (1000-2000 PSI)[69-138 Bar], Red (2000-3000 PSI)[138-207 Bar], Black (3000-4000 PSI)[207-276 Bar].Optional: (4000-5000 PSI)[276-345 Bar] Relief valve kit available, order part no. K-175. Optional: order JF-0048 spring locator when using the blue (500-1000 PSI) [34.5-69 Bar] spring. Valve is rated to release at 3000 PSI [207 Bar]. Max. at 90 PSI [6 Bar] air pressure.
