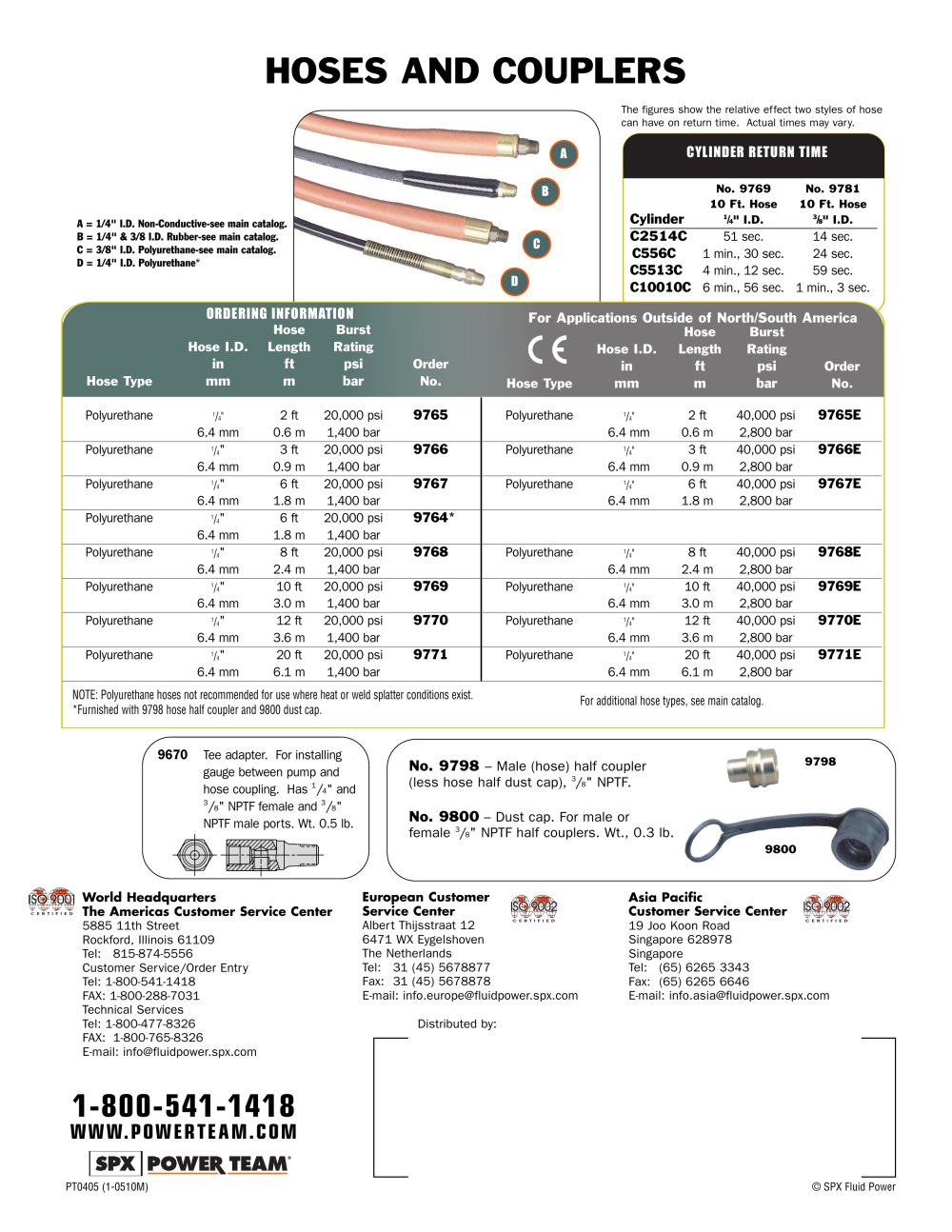

HOSES AND COUPLERS
The figures show the relative effect two styles of hose can have on return time. Actual times may vary.
CYLINDER RETURN TIME
No. 9769 10 Ft. Hose 'A" I.D.
No. 9781
10 Ft. Hose
3/8" I.D.
Cylinder
A = 1/4" I.D. Non-Conductive-see main catalog. B = 1/4" & 3/8 I.D. Rubber-see main catalog. C = 3/8" I.D. Polyiirethaiie-see main catalog. D = 1/4" I.D. Polyurethane*
C2514C 51 sec. 14 sec.
C556C 1 min., 30 sec. 24 sec.
C5513C 4 min., 12 sec. 59 sec.
C10010C 6 min., 56 sec. 1 min., 3 sec.
r
ORDER NGINFORMATI ON
For Applications Outside of North/South America Ě
Hose
Burst
C€
Hose
Burst
Hose I.D.
Length
Rating
Hose I.D.
Length
Rating
in
ft
psi
Order
in
ft
psi
Order
Hose Type
mm
m
bar
No.
Hose Type
mm
m
bar
No.
Polyurethane
'A"
2 ft
20,000 psi
9765
Polyurethane
'/4"
2 ft
40,000 psi
9765E
6.4 mm
0.6 m
1,400 bar
6.4 mm
0.6 m
2,800 bar
Polyurethane
'/4"
3 ft
20,000 psi
9766
Polyurethane
'/4"
3 ft
40,000 psi
9766E
6.4 mm
0.9 m
1,400 bar
6.4 mm
0.9 m
2,800 bar
Polyurethane
'/4"
6 ft
20,000 psi
9767
Polyurethane
'/4"
6 ft
40,000 psi
9767E
6.4 mm
1.8 m
1,400 bar
6.4 mm
1.8 m
2,800 bar
Polyurethane
'/4"
6 ft
20,000 psi
9764*
6.4 mm
1.8 m
1,400 bar
Polyurethane
'/4"
8 ft
20,000 psi
9768
Polyurethane
'/4"
8 ft
40,000 psi
9768E
6.4 mm
2.4 m
1,400 bar
6.4 mm
2.4 m
2,800 bar
Polyurethane
'/4"
10 ft
20,000 psi
9769
Polyurethane
'/4"
10 ft
40,000 psi
9769E
6.4 mm
3.0 m
1,400 bar
6.4 mm
3.0 m
2,800 bar
Polyurethane
'/4"
12 ft
20,000 psi
9770
Polyurethane
'/4"
12 ft
40,000 psi
9770E
6.4 mm
3.6 m
1,400 bar
6.4 mm
3.6 m
2,800 bar
Polyurethane
'/4"
20 ft
20,000 psi
9771
Polyurethane
'/4"
20 ft
40,000 psi
9771E
6.4 mm
6.1 m
1,400 bar
6.4 mm
6.1 m
2,800 bar
NOTE: Polyurethane hoses not recommended for use where heat or weld splatter conditions exist. *Furnished with 9798 hose half coupler and 9800 dust cap.
For additional hose types, see main catalog.
9670 Tee adapter. For installing gauge between pump and hose coupling. Has 1/4" and 7s" NPTF female and 3/s" NPTF male ports. Wt. 0.5 lb.
9798
No. 9798 - Male (hose) half coupler (less hose half dust cap), 3/»" NPTF.
No. 9800 - Dust cap. For male or female 3/»" NPTF half couplers. Wt., 0.3 lb.
