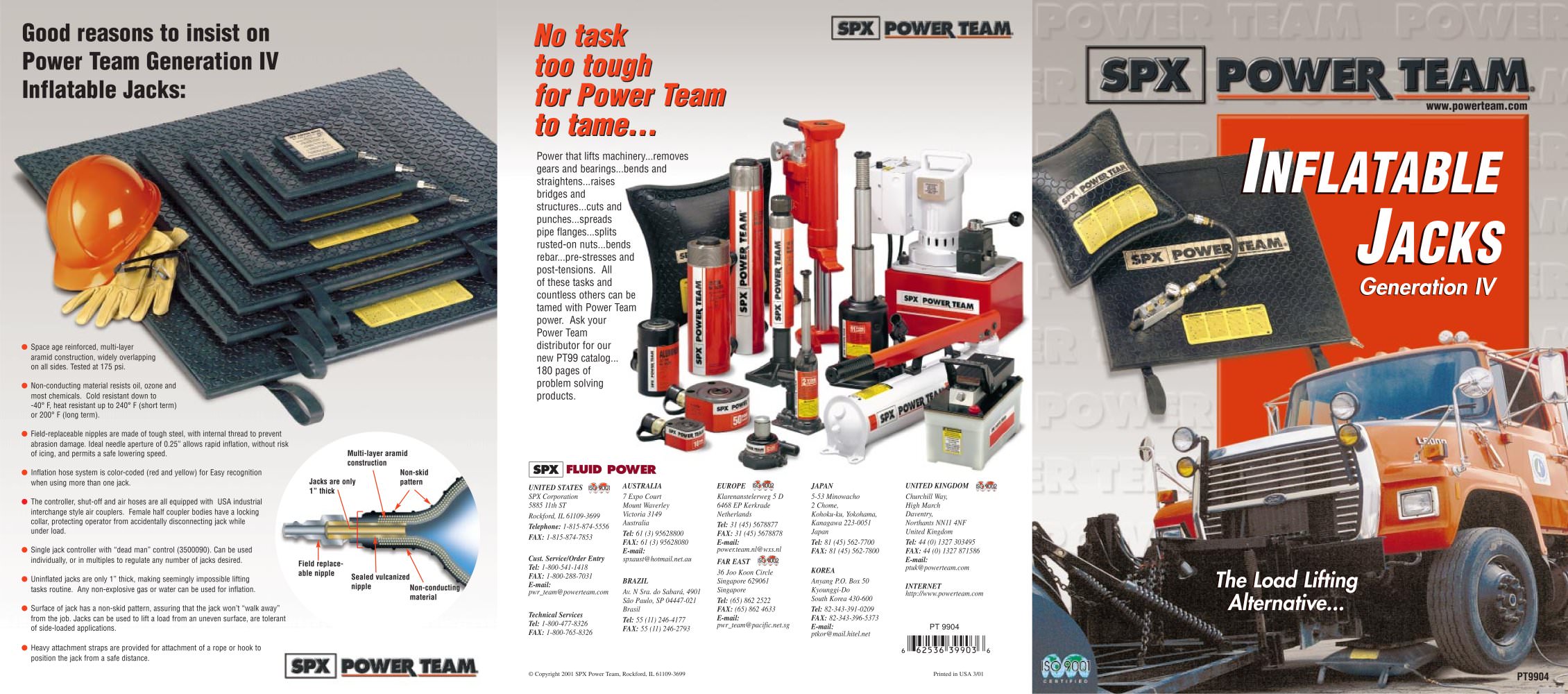

| Good reasons to insist on Power Team Generation IV Inflatable Jacks: | |||||||||||||||||||||||||||||||||||||||
| No task too tough for Power Team to tame... Power that lifts machinery...removes gears and bearings...bends and straightens...raises bridges and structures...cuts and 1 punches...spreads pipe flanges...splits rusted-on nuts...bends rebar...pre-stresses and post-tensions. All of these tasks and countless others can be tamed with Power Team power. Ask your Power Team distributor for our new PT99 catalog... 180 pages of problem solving products. | |||||||||||||||||||||||||||||||||||||||
| Space age reinforced, multi-layer aramid construction, widely overlapping on all sides. Tested at 175 psi. | |||||||||||||||||||||||||||||||||||||||
| • Non-conducting material resists oil, ozone and most chemicals. Cold resistant down to -40° F, heat resistant up to 240° F (short term) or 200° F (long term). | |||||||||||||||||||||||||||||||||||||||
| • Field-replaceable nipples are made of tough steel, with internal thread to prevent abrasion damage. Ideal needle aperture of 0.25" allows rapid inflation, without risk of icing, and permits a safe lowering speed. • Inflation hose system is color-coded (red and yellow) for Easy recognition when using more than one jack. | |||||||||||||||||||||||||||||||||||||||
| Multi-layer aramid construction Non-skid Jacks are only \ pattern 1" thick i | |||||||||||||||||||||||||||||||||||||||
| SPX FLUID | |||||||||||||||||||||||||||||||||||||||
| UNITED STATES ISS.fOGT. SPX Corporation 5885 11th ST Rockford, IL 61109-3699 Telephone: 1-815-874-5556 FAX: 1-815-874-7853 Cust. Service/Order Entry Tel: 1-800-541-1418 FAX: 1-800-288-7031 E-mail: pwr_team@powerteam.com Technical Services Tel: 1-800-477-8326 FAX: 1-800-765-8326 | |||||||||||||||||||||||||||||||||||||||
| • The controller, shut-off and air hoses are all equipped with USA industrial interchange style air couplers. Female half coupler bodies have a locking collar, protecting operator from accidentally disconnecting jack while under load. • Single jack controller with "dead man" control (3500090). Can be used individually, or in multiples to regulate any number of jacks desired. • Uninflated jacks are only 1" thick, making seemingly impossible lifting tasks routine. Any non-explosive gas or water can be used for inflation. • Surface of jack has a non-skid pattern, assuring that the jack won't "walk away" from the job. Jacks can be used to lift a load from an uneven surface, are tolerant of side-loaded applications. • Heavy attachment straps are provided for attachment of a rope or hook to | |||||||||||||||||||||||||||||||||||||||
| Mount Waverley Victoria 3149 Australia Tel: 61 (3) 95628800 FAX: 61 (3) 95628080 E-mail: spxaust@hotmail.net.au BRAZIL Av. N Sra. do Sahara, 4901 Sao Paulo, SP 04447-021 Brasil Tel: 55 (11) 246-4177 FAX: 55 (11) 246-2793 | |||||||||||||||||||||||||||||||||||||||
| FAR EAST IS 36 Joo Koon Circle Singapore 629061 Singapore Tel: (65) 862 2522 FAX: (65) 862 4633 E-mail: pwr_team@pacific.net.sg | |||||||||||||||||||||||||||||||||||||||
| Field replaceable nipple | |||||||||||||||||||||||||||||||||||||||
| Sealed vulcanized nipple | |||||||||||||||||||||||||||||||||||||||
| Non-conducting material | |||||||||||||||||||||||||||||||||||||||
| Kyounggi-Do South Korea 430-600 Tel: 82-343-391-0209 FAX: 82-343-396-5373 E-mail: ptkor@mail.hitel.net | |||||||||||||||||||||||||||||||||||||||
| 0662536399036 | |||||||||||||||||||||||||||||||||||||||
| position the jack from a safe distance. | |||||||||||||||||||||||||||||||||||||||
| SPX POWER TEAM | |||||||||||||||||||||||||||||||||||||||
| © Copyright 2001 SPX Power Team, Rockford, IL 61109-3699 | Printed in USA 3/01 | ||||||||||||||||||||||||||||||||||||||
