9
© Sprecher Automation 2010
7.2 kV 12 kV 17.5 kV 24 kV
... 3,150 A ... 3,150 A ... 3,150 A ... 2,500 A
... 50 kA ... 50 kA ... 40 kA ... 25 kA
... 125 kA ... 125 kA ... 100 kA ... 63 kA
... 20 kV ... 28 kV ... 38 kV ... 50 kV
... 60 kV ... 75 kV ... 95 kV ... 125 kV
7.2 / 12 kV 17.5 / 24 kV
2,250 mm 2,250 mm
650 / 800 / 1,000 mm 800 / 1,000 mm
1,300 / 2,600 mm 1,300 / 2,600 mm
Feeder
single busbar
Feeder
duplex double busbar

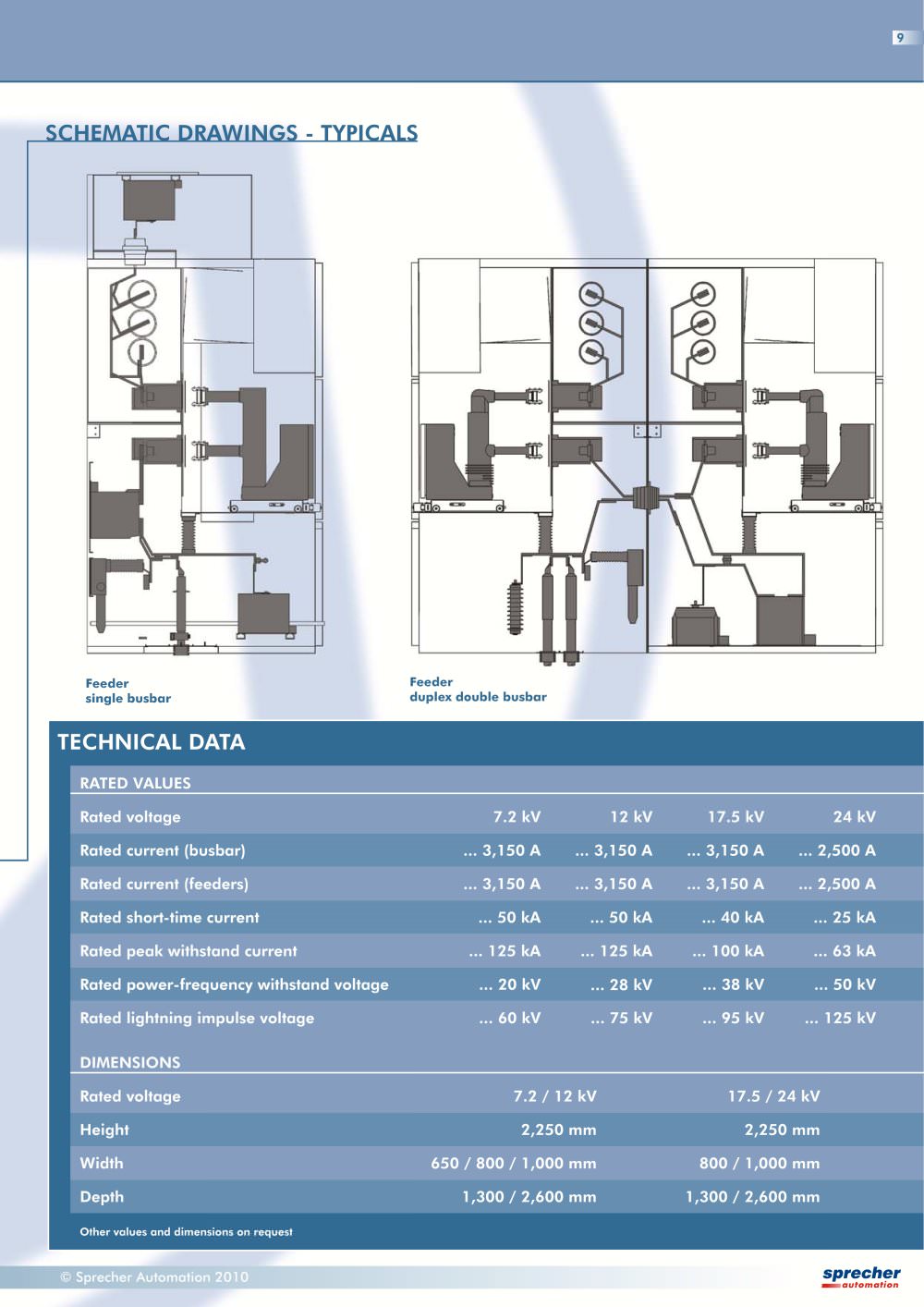

SCHEMATIC DRAWINGS - TYPICALS
TECHNICAL DATA
Rated voltage
Rated current (busbar)
Rated current (feeders)
Rated short-time current
Rated peak withstand current
Rated power-frequency withstand voltage
Rated lightning impulse voltage
RATED VALUES
Rated voltage
Height
Width
Depth
DIMENSIONS
Other values and dimensions on request
... 3,150 A ... 3,150 A ... 3,150 A ... 2,500 A
