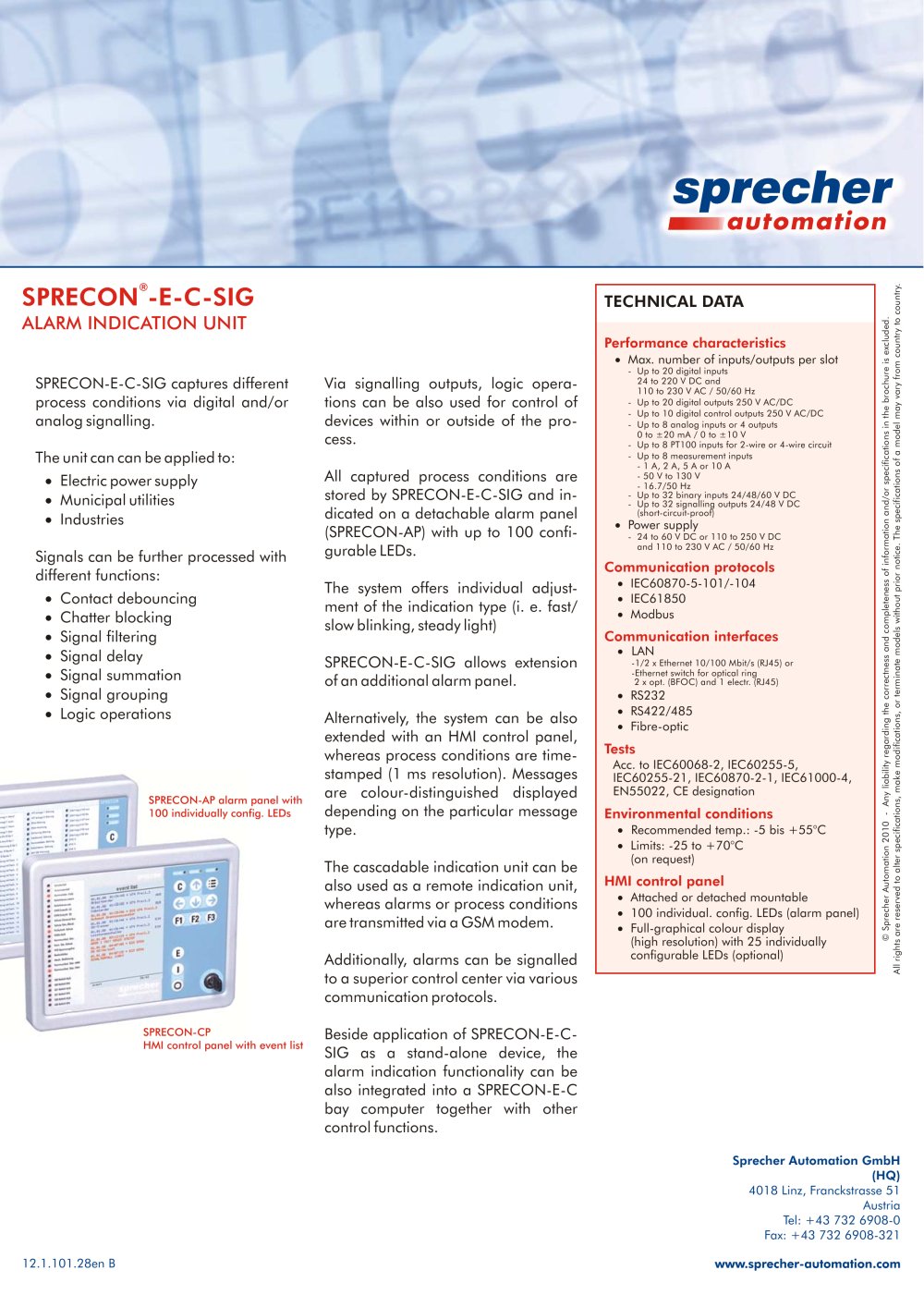

SPRECON -E-C-SIG ALARM INDICATION UNIT ® SPRECON-E-C-SIG captures different process conditions via digital and/or analog signalling. The unit can can be applied to: Electric power supply Municipal utilities Industries Signals can be further processed with different functions: Contact debouncing Chatter blocking Signal filtering Signal delay Signal summation Signal grouping Logic operations 12.1.101.28en B Via signalling outputs, logic operations can be also used for control of devices within or outside of the process. All captured process conditions are stored by SPRECON-E-C-SIG and indicated on a detachable alarm panel (SPRECON-AP) with up to 100 configurable LEDs. The system offers individual adjustment of the indication type (i. e. fast/ slow blinking, steady light) SPRECON-E-C-SIG allows extension of an additional alarm panel. Alternatively, the system can be also extended with an HMI control panel, whereas process conditions are timestamped (1 ms resolution). Messages are colour-distinguished displayed depending on the particular message type. The cascadable indication unit can be also used as a remote indication unit, whereas alarms or process conditions are transmitted via a GSM modem. Additionally, alarms can be signalled to a superior control center via various communication protocols. Beside application of SPRECON-E-CSIG as a stand-alone device, the alarm indication functionality can be also integrated into a SPRECON-E-C bay computer together with other control functions. SPRECON-AP alarm panel with 100 individually config. LEDs TECHNICAL DATA Performance characteristics Communication protocols Communication interfaces Tests Environmental conditions HMI control panel Max. number of inputs/outputs per slot - Up to 20 digital inputs 24 to 220 V DC and 110 to 230 V AC / 50/60 Hz - Up to 20 digital outputs 250 V AC/DC - Up to 10 digital control outputs 250 V AC/DC - Up to 8 analog inputs or 4 outputs 0 to ±20 mA / 0 to ±10 V - Up to 8 PT100 inputs for 2-wire or 4-wire circuit - Up to 8 measurement inputs - 1 A, 2 A, 5 A or 10 A - 50 V to 130 V - 16.7/50 Hz - Up to 32 binary inputs 24/48/60 V DC - Up to 32 signalling outputs 24/48 V DC (short-circuit-proof) Power supply - 24 to 60 V DC or 110 to 250 V DC and 110 to 230 V AC / 50/60 Hz IEC60870-5-101/-104 IEC61850 Modbus LAN -1/2 x Ethernet 10/100 Mbit/s (RJ45) or -Ethernet switch for optical ring 2 x opt. (BFOC) and 1 electr. (RJ45) RS232 RS422/485 Fibre-optic Acc. to IEC60068-2, IEC60255-5, IEC60255-21, IEC60870-2-1, IEC61000-4, EN55022, CE designation Recommended temp.: -5 bis +55°C Limits: -25 to +70°C (on request) Attached or detached mountable 100 individual. config. LEDs (alarm panel) Full-graphical colour display (high resolution) with 25 individually configurable LEDs (optional) SPRECON-CP HMI control panel with event list © Sprecher Automation 2010 - All rights are reserved to alter specifications, make modifications, or terminate models without prior notice. The specifications of a model may vary from country to country. Any liability regarding the correctness and completeness of information and/or specifications in the brochure is excluded. Sprecher Automation GmbH (HQ) 4018 Linz, Franckstrasse 51 Austria Tel: +43 732 6908-0 Fax: +43 732 6908-321 www.sprecher-automation.com
