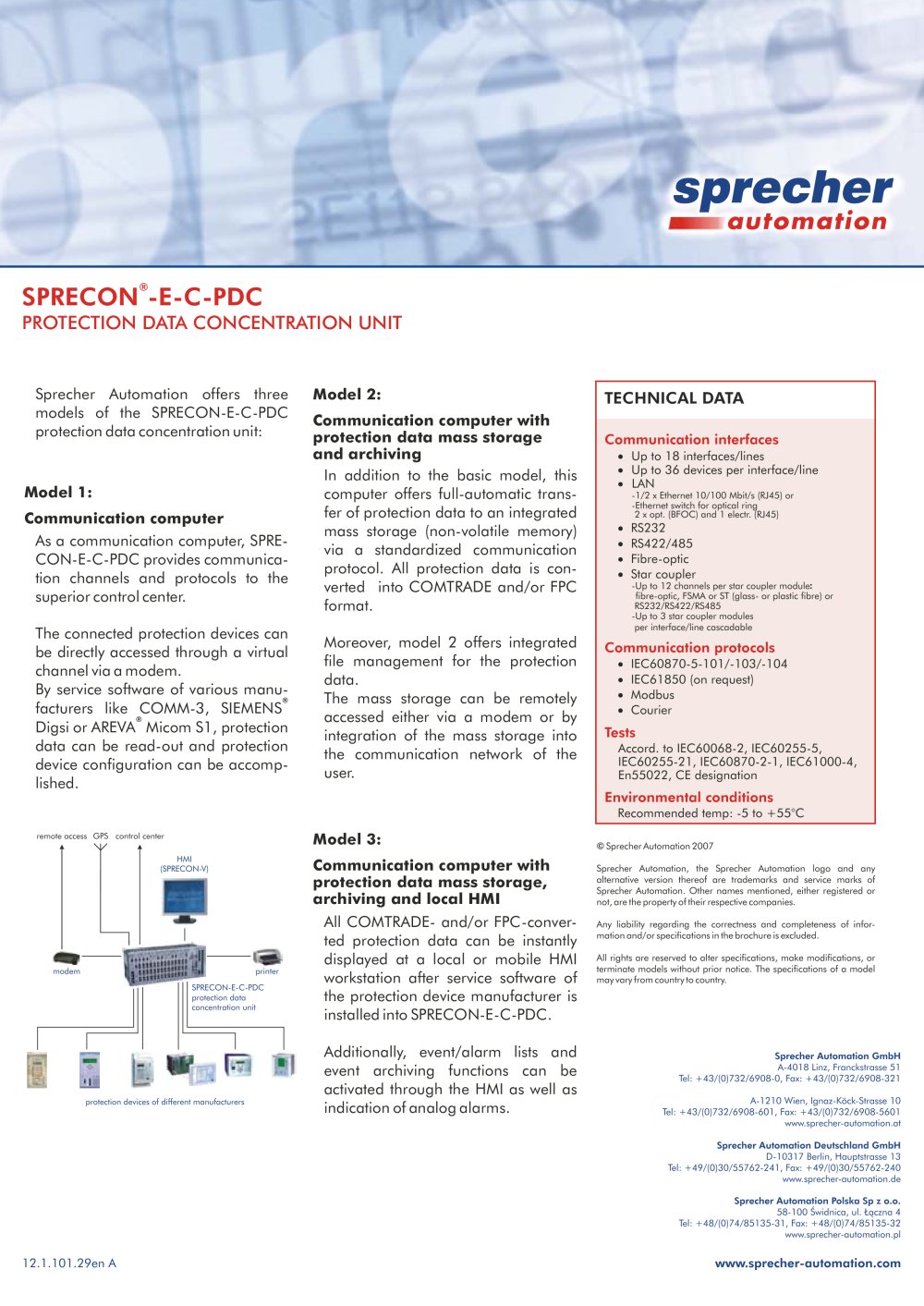

SPRECON-E-C-PDC
PROTECTION DATA CONCENTRATION UNIT
Sprecher Automation offers three models of the SPRECON-E-C-PDC protection data concentration unit:
Model 2:
Communication computer with protection data mass storage and archiving
In addition to the basic model, this computer offers full-automatic trans­fer of protection data to an integrated mass storage (non-volatile memory) via a standardized communication protocol. All protection data is con­verted into COMTRADE and/or FPC format.
Moreover, model 2 offers integrated file management for the protection data.
The mass storage can be remotely accessed either via a modem or by integration of the mass storage into the communication network of the user.
TECHNICAL DATA
Communication interfaces
• Upto 18 interfaces/lines
• Upto 36 devices per interface/line
• LAN
-1/2 x Ethernet 10/100 Mbit/s (RJ45) or -Ethernet switch for optical ring 2 x opt. (BFOC) and 1 electr. ]RJ45)
• RS232
• RS422/485
• Fibre-optic
• Star coupler
-Up to 12 channels per star coupler module: fibre-optic, FSMA or ST (glass- or plastic fibre) or RS232/RS422/RS485 -Up to 3 star coupler modules
per interface/line cascadable
Communication protocols
• IEC60870-5-101/-103/-104
• IEC61850 (on request)
• Modbus
• Courier
Tests
Accord. to IEC60068-2, IEC60255-5, IEC60255-21, IEC60870-2-1, IEC61000-4, En55022, CE designation
Environmental conditions
Recommended temp: -5 to +55°C
Model 1:
Communication computer
As a communication computer, SPRE­CON-E-C-PDC provides communica­tion channels and protocols to the superior control center.
The connected protection devices can be directly accessed through a virtual channel via a modem. By service software of various manu­facturers like COMM-3, SIEMENS® Digsi or AREVA Micom S1, protection data can be read-out and protection device configuration can be accomp­lished.
remote access GPS control center
Model 3:
Communication computer with protection data mass storage, archiving and local HMI
All COMTRADE- and/or FPC-conver-ted protection data can be instantly displayed at a local or mobile HMI workstation after service software of the protection device manufacturer is installed into SPRECON-E-C-PDC.
Additionally, event/alarm lists and event archiving functions can be activated through the HMI as well as indication of analog alarms.
© Sprecher Automation 2007
Sprecher Automation, the Sprecher Automation logo and any alternative version thereof are trademarks and service marks of Sprecher Automation. Other names mentioned, either registered or not, are the property of their respective companies.
Any liability regarding the correctness and completeness of infor­mation and/or specifications in the brochure is excluded.
All rights are reserved to alter specifications, make modifications, or terminate models without prior notice. The specifications of a model may vary from country to country.
