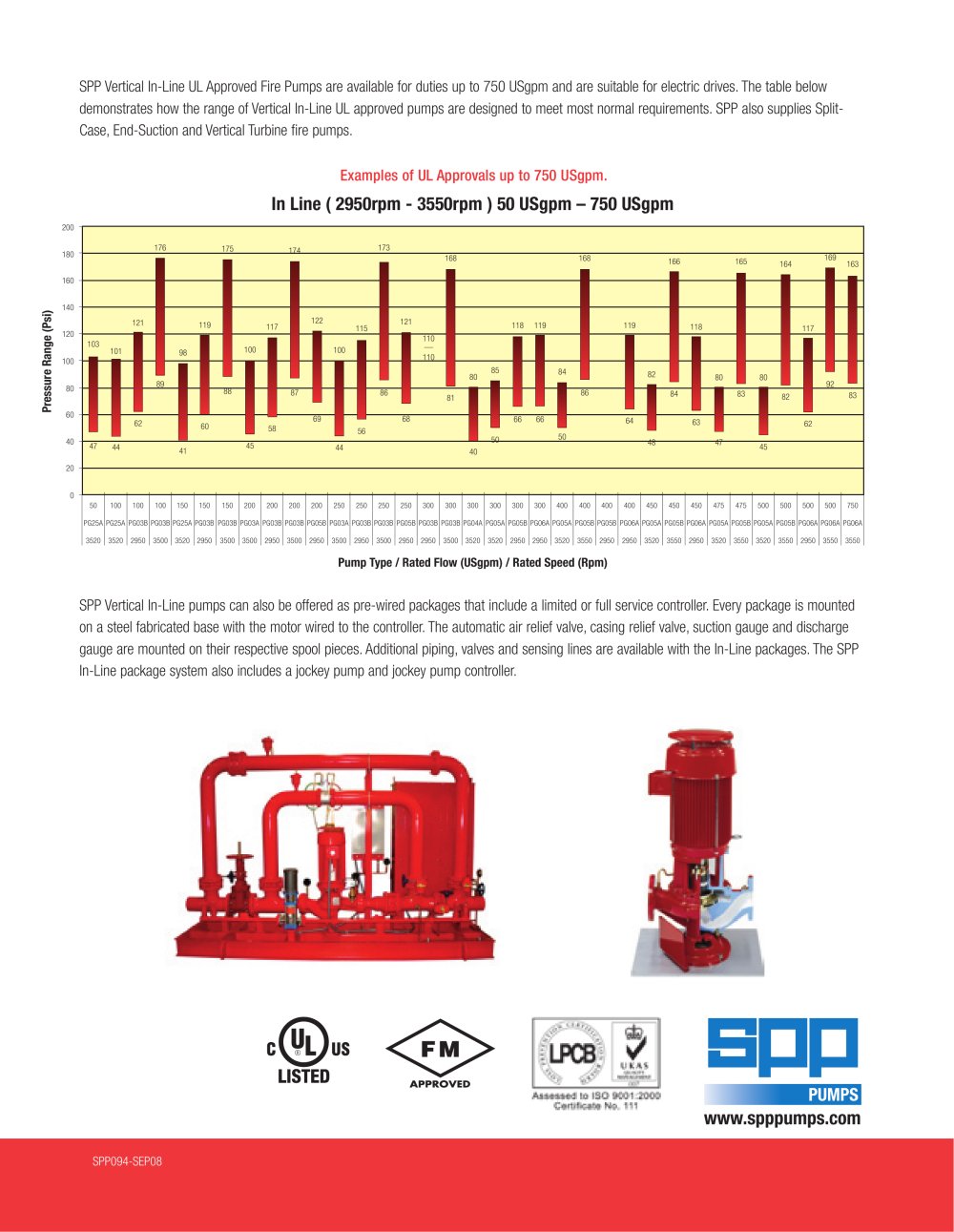

SPP094-SEP08 www.spppumps.com SPP Vertical In-Line UL Approved Fire Pumps are available for duties up to 750 USgpm and are suitable for electric drives. The table below demonstrates how the range of Vertical In-Line UL approved pumps are designed to meet most normal requirements. SPP also supplies Split- Case, End-Suction and Vertical Turbine fire pumps. Examples of UL Approvals up to 750 USgpm. 103 47 50 PG25A 3520 100 PG25A 3520 100 PG03B 2950 100 PG03B 3500 150 PG25A 3520 150 PG03B 2950 150 PG03B 3500 200 PG03A 3500 200 PG03B 2950 200 PG03B 3500 200 PG05B 2950 250 PG03A 3500 250 PG03B 2950 250 PG03B 3500 250 PG05B 2950 300 PG03B 2950 300 PG03B 3500 300 PG04A 3520 300 PG05A 3520 300 PG05B 2950 300 PG06A 2950 400 PG05A 3520 400 PG05B 3550 400 PG05B 2950 400 PG06A 2950 450 PG05A 3520 450 PG05B 3550 450 PG06A 2950 475 PG05A 3520 475 PG05B 3550 500 PG05A 3520 500 PG05B 3550 500 PG06A 2950 500 PG06A 3550 750 PG06A 3550 101 44 98 41 100 45 117 58 122 69 121 68 110 110 118 66 119 66 119 64 118 63 117 62 100 44 80 40 82 48 80 47 80 45 85 50 84 50 115 56 119 60 121 62 176 200 180 160 140 120 100 80 60 Pressure Range (Psi) Pump Type / Rated Flow (USgpm) / Rated Speed (Rpm) In Line ( 2950rpm - 3550rpm ) 50 USgpm – 750 USgpm 40 20 0 89 175 88 174 87 173 86 168 81 168 86 166 84 165 83 164 82 163 83 169 92 SPP Vertical In-Line pumps can also be offered as pre-wired packages that include a limited or full service controller. Every package is mounted on a steel fabricated base with the motor wired to the controller. The automatic air relief valve, casing relief valve, suction gauge and discharge gauge are mounted on their respective spool pieces. Additional piping, valves and sensing lines are available with the In-Line packages. The SPP In-Line package system also includes a jockey pump and jockey pump controller.
