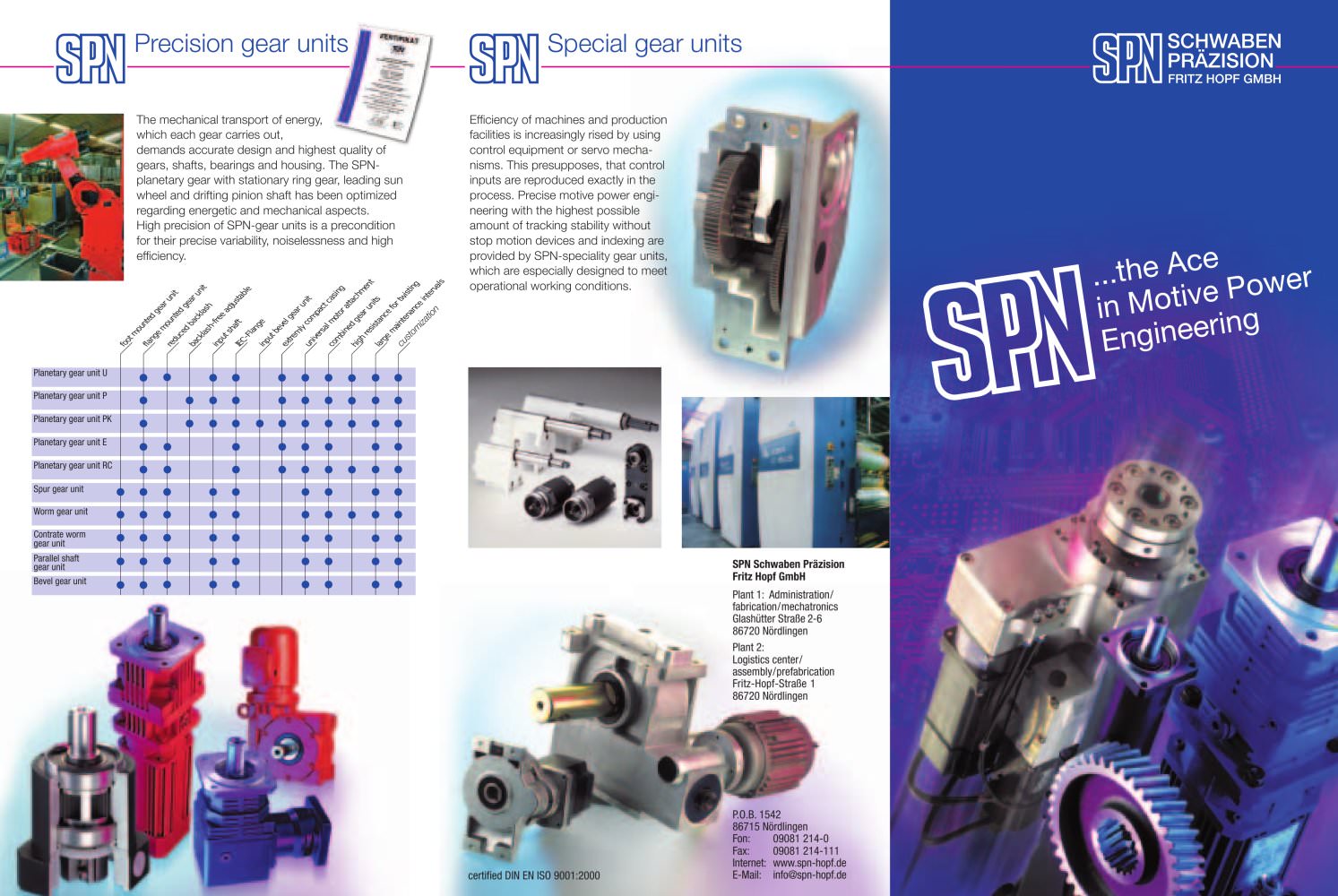

toothed elements prochure - SPN SCHWABEN PRÄZISION - #1

njN] Precision gear units

jjiyi Special gear units

The mechanical transport of energy, which each gear carries out, demands accurate design and highest quality of gears, shafts, bearings and housing. The SPN-planetary gear with stationary ring gear, leading sun wheel and drifting pinion shaft has been optimized regarding energetic and mechanical aspects. High precision of SPN-gear units is a precondition for their precise variability, nolselessness and high efficiency.

Efficiency of machines and production facilities is Increasingly rised by using control equipment or servo mecha­nisms. This presupposes, that control, inputs are reproduced exactly in the process. Precise motive power engi­neering with the highest possible amount of tracking stability without J stop motion devices and Indexing are provided by SPN-speciality gear unit J which are especially designed to meeH operational working conditions.

Planetary gear unit U Planetary gear unit P Planetary gear unit PK Planetary gear unit E Planetary gear unit RC Spur gear unit Worm gear unit

SPN Schwaben Präzision Fritz Hopf GmbH

Plant 1: Administration/ fabrication/mechatronics Glashütter Straße 2-6 86720 Nördlingen

Plant 2:

Logistics center/ assembly/prefabri cation Fritz-Hopf-Straße 1 86720 Nördlingen

P.O.B. 1542 86715 Nördlingen Fon: 09081 214-0 Fax: 09081 214-111 Internet: www.spn-hopf.de E-Mail: info@spn-hopf.de

certified DIN EN ISO 9001:2000
