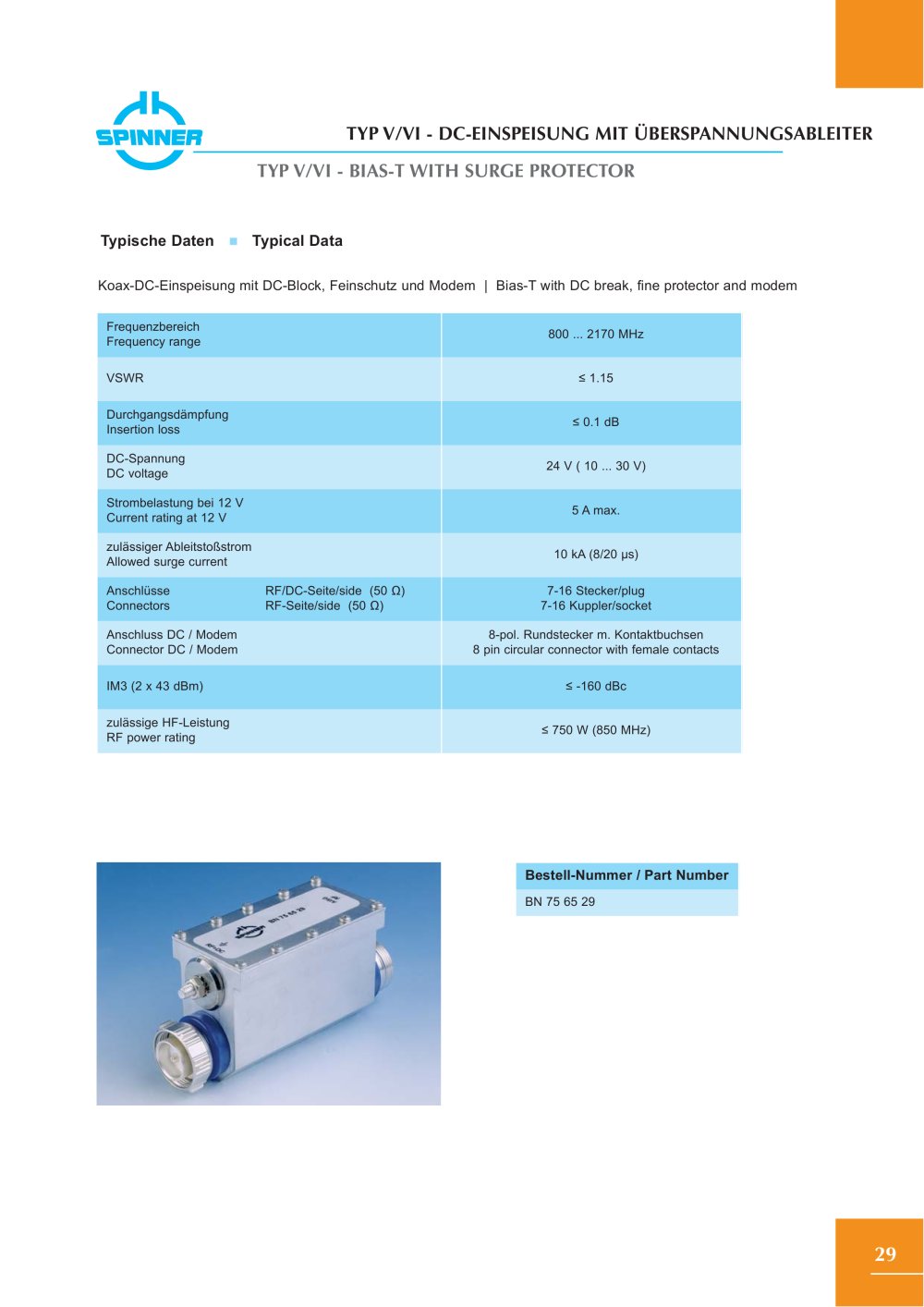

TYP V/VI - DC-EINSPEISUNG MIT ÛBERSPANNUNGSABLEITER
TYP V/VI - BIAS-T WITH SURGE PROTECTOR
Typische Daten ■ Typical Data
Koax-DC-Einspeisung mit DC-Block, Feinschutz und Modem | Bias-T with DC break, fine protector and modem
Frequenzbereich Frequency range
800 ... 2170 MHz
VSWR
< 1.15
Durchgangsdāmpfung Insertion loss
< 0.1 dB
DC-Spannung DC voltage
24 V ( 10 ... 30 V)
Strombelastung bei 12 V Current rating at 12 V
5 A max.
zulāssiger AbleitstoGstrom Allowed surge current
10 kA(8/20 ps)
Anschlųsse RF/DC-Seite/side (50 Q) Connectors RF-Seite/side (50 Q)
7-16 Stecker/plug 7-16 Kuppler/socket
Anschluss DC / Modem Connector DC / Modem
8-pol. Rundstecker m. Kontaktbuchsen 8 pin circular connector with female contacts
IM3 (2 x 43 dBm)
< -160 dBc
zulāssige HF-Leistung
< 750 W (850 MHz)
Bestell-Nummer / Part Number
BN 75 65 29
