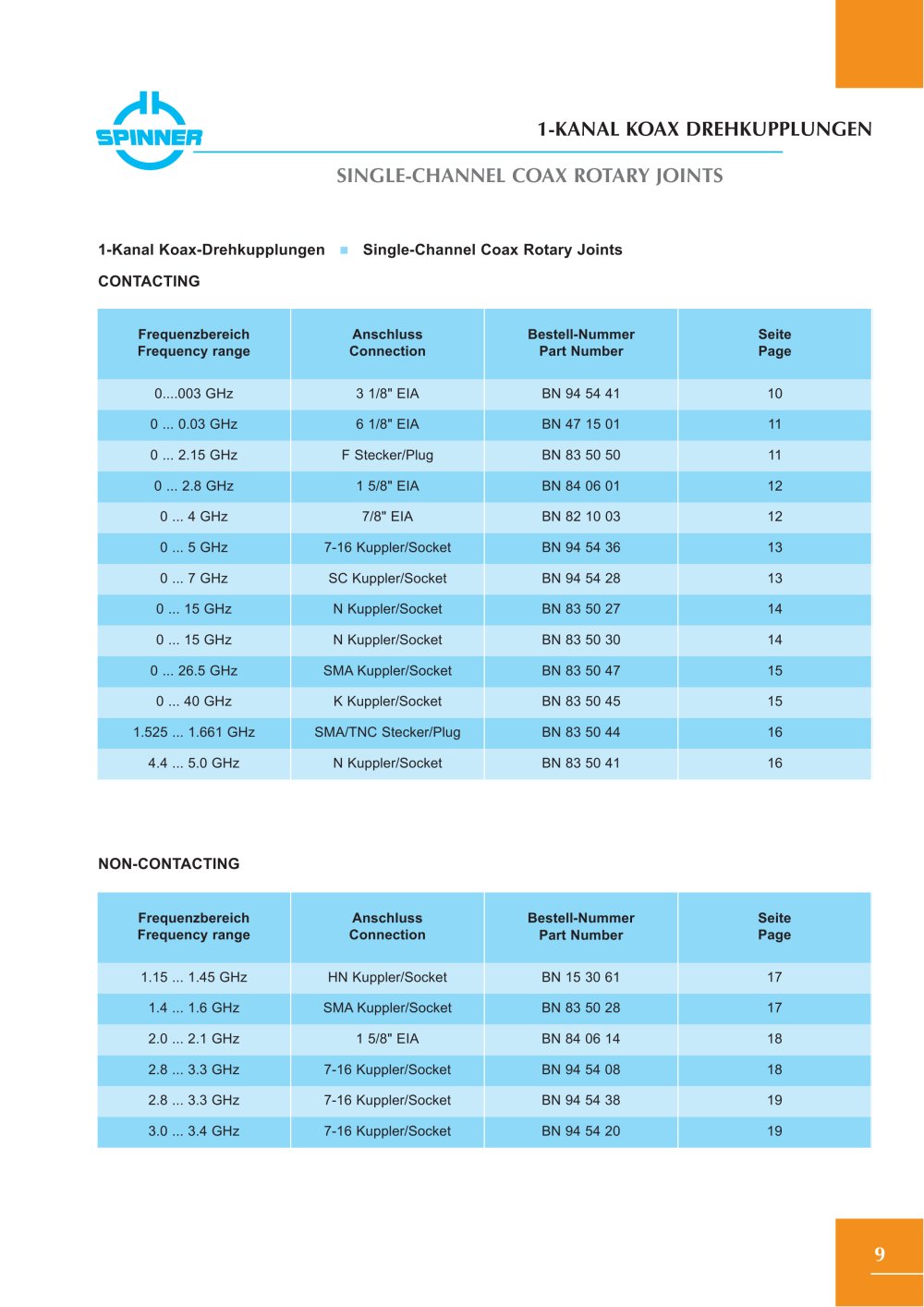

1-KANAL KOAX DREHKUPPLUNGENSINGLE-CHANNEL COAX ROTARY JOINTS

1-Kanal Koax-Drehkupplungen Single-Channel Coax Rotary Joints CONTACTING NON-CONTACTING

FrequenzbereichFrequency range AnschlussConnection Bestell-NummerPart Number Seite Page 0....003 GHz 3 1/8" EIA BN 94 54 41 10 0 ... 0.03 GHz 6 1/8" EIA BN 47 15 01 11 0 ... 2.15 GHz F Stecker/Plug BN 83 50 50 11 0 ... 2.8 GHz 1 5/8" EIA BN 84 06 01 12 0 ... 4 GHz 7/8" EIA BN 82 10 03 12 0 ... 5 GHz 7-16 Kuppler/Socket BN 94 54 36 13 0 ... 7 GHz SC Kuppler/Socket BN 94 54 28 13 0 ... 15 GHz N Kuppler/Socket BN 83 50 27 14 0 ... 15 GHz N Kuppler/Socket BN 83 50 30 14 0 ... 26.5 GHz SMAKuppler/Socket BN 83 50 47 15 0 ... 40 GHz K Kuppler/Socket BN 83 50 45 15 1.525 ... 1.661 GHz SMA/TNC Stecker/Plug BN 83 50 44 16 4.4 ... 5.0 GHz N Kuppler/Socket BN 83 50 41 16 FrequenzbereichFrequency range AnschlussConnection Bestell-NummerPart Number SeitePage 1.15 ... 1.45 GHz HN Kuppler/Socket BN 15 30 61 17 1.4 ... 1.6 GHz SMAKuppler/Socket BN 83 50 28 17 2.0 ... 2.1 GHz 1 5/8" EIA BN 84 06 14 18 2.8 ... 3.3 GHz 7-16 Kuppler/Socket BN 94 54 08 18 2.8 ... 3.3 GHz 7-16 Kuppler/Socket BN 94 54 38 19 3.0 ... 3.4 GHz 7-16 Kuppler/Socket BN 94 54 20 19

9
