3-KANAL DREHKUPPLUNGENTHREE-CHANNEL ROTARY JOINTS

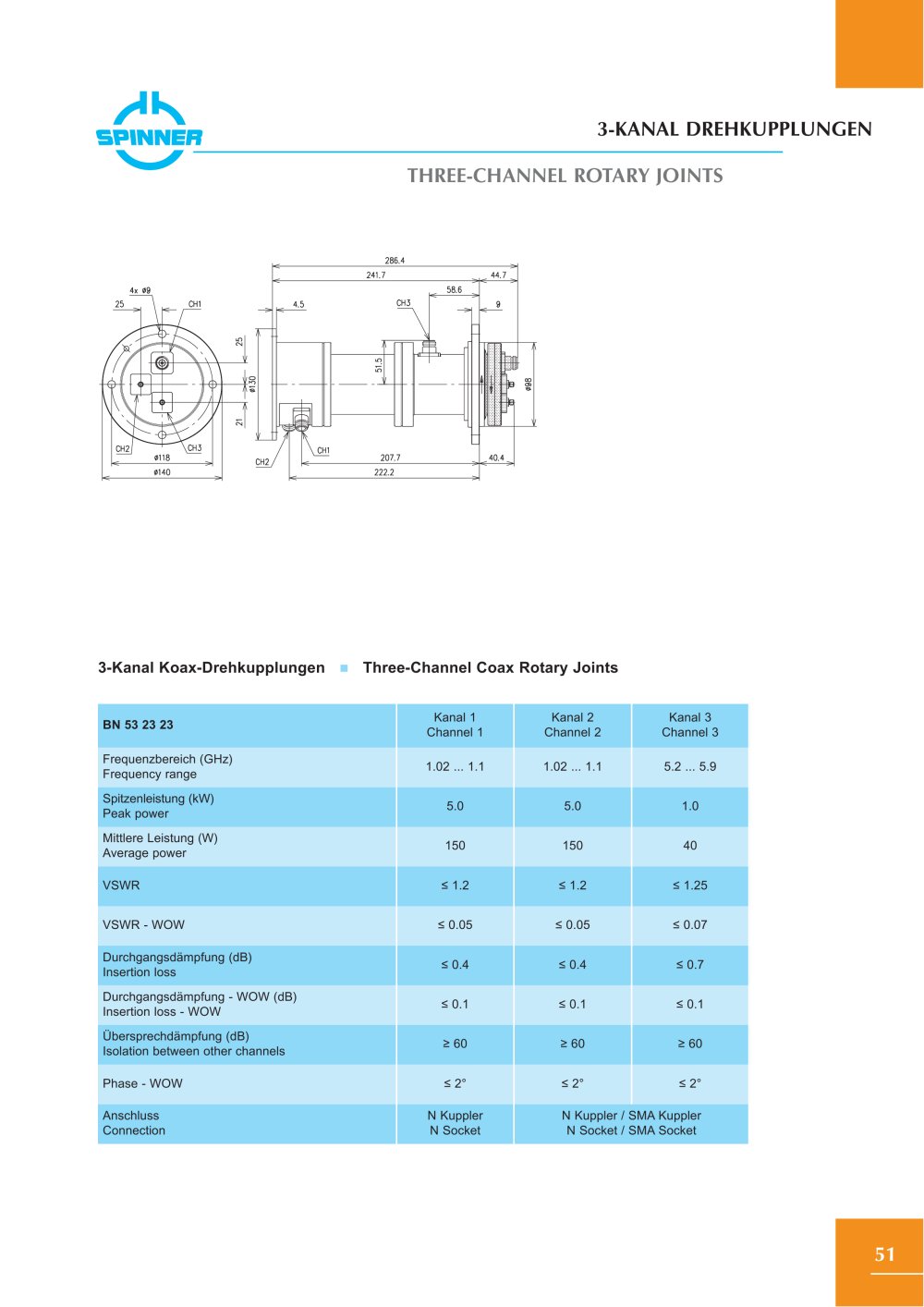

3-Kanal Koax-Drehkupplungen Three-Channel Coax Rotary Joints

BN 53 23 23 Kanal 1Channel 1 Kanal 2Channel 2 Kanal 3Channel 3 Frequenzbereich (GHz) Frequency range 1.02 ... 1.1 1.02 ... 1.1 5.2 ... 5.9 Spitzenleistung (kW) Peak power 5.0 5.0 1.0 Mittlere Leistung (W)Average power 150 150 40 VSWR ≤ 1.2 ≤ 1.2 ≤ 1.25 VSWR - WOW ≤ 0.05 ≤ 0.05 ≤ 0.07 Durchgangsdämpfung (dB)Insertion loss ≤ 0.4 ≤ 0.4 ≤ 0.7 Durchgangsdämpfung - WOW (dB) Insertion loss - WOW ≤ 0.1 ≤ 0.1 ≤ 0.1 Übersprechdämpfung (dB) Isolation between other channels ≥ 60 ≥ 60 ≥ 60 Phase - WOW ≤ 2° ≤ 2° ≤ 2° Anschluss Connection N KupplerN Socket N Kuppler / SMAKupplerN Socket / SMASocket
