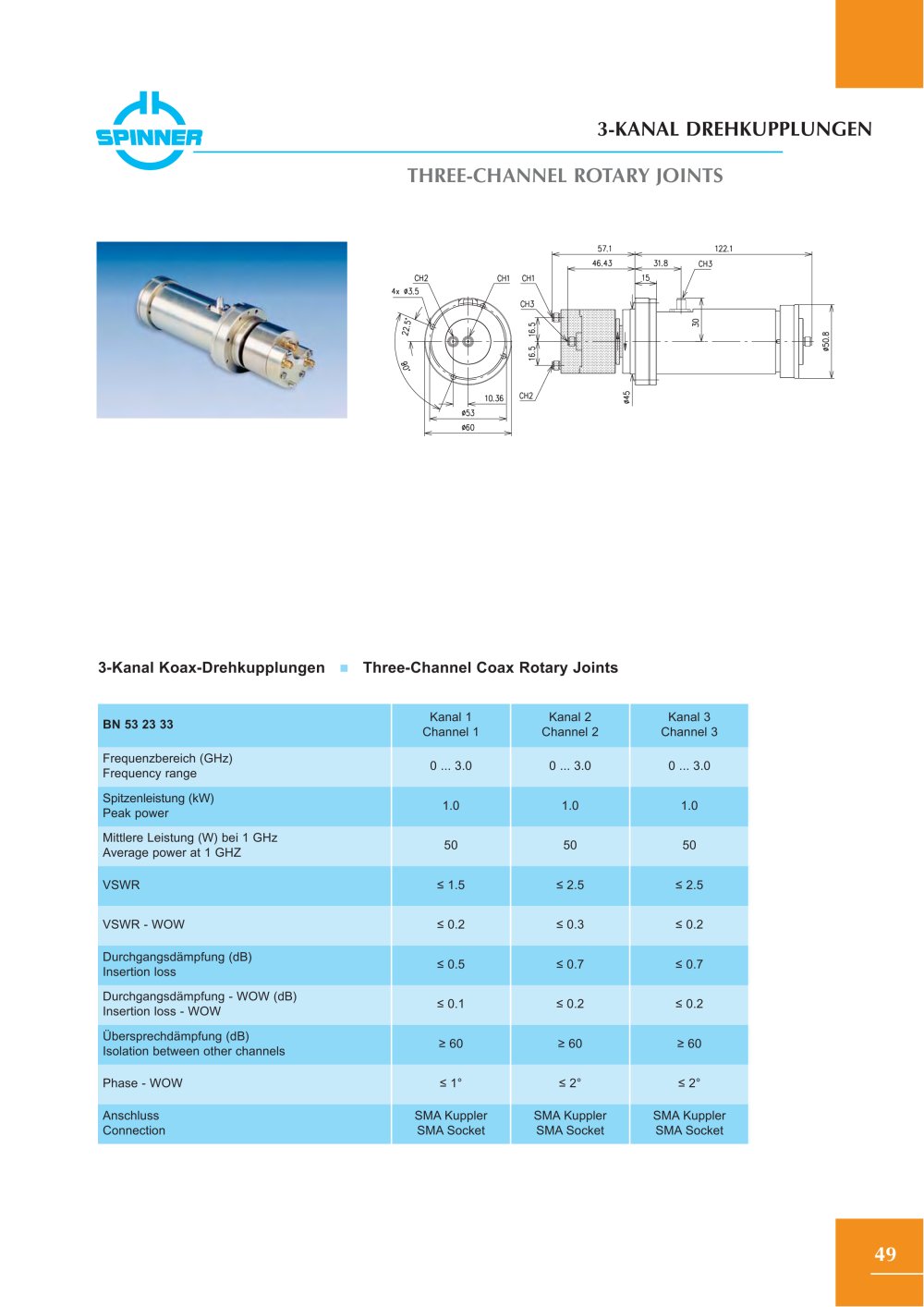

3-KANAL DREHKUPPLUNGENTHREE-CHANNEL ROTARY JOINTS

3-Kanal Koax-Drehkupplungen Three-Channel Coax Rotary Joints

BN 53 23 33 Kanal 1Channel 1 Kanal 2Channel 2 Kanal 3Channel 3 Frequenzbereich (GHz) Frequency range 0 ... 3.0 0 ... 3.0 0 ... 3.0 Spitzenleistung (kW) Peak power 1.0 1.0 1.0 Mittlere Leistung (W) bei 1 GHz Average power at 1 GHZ 50 50 50 VSWR ≤ 1.5 ≤ 2.5 ≤ 2.5 VSWR - WOW ≤ 0.2 ≤ 0.3 ≤ 0.2 Durchgangsdämpfung (dB) Insertion loss ≤ 0.5 ≤ 0.7 ≤ 0.7 Durchgangsdämpfung - WOW (dB) Insertion loss - WOW ≤ 0.1 ≤ 0.2 ≤ 0.2 Übersprechdämpfung (dB) Isolation between other channels ≥ 60 ≥ 60 ≥ 60 Phase - WOW ≤ 1° ≤ 2° ≤ 2° Anschluss Connection SMAKupplerSMASocket SMAKupplerSMASocket SMAKupplerSMASocket

49
