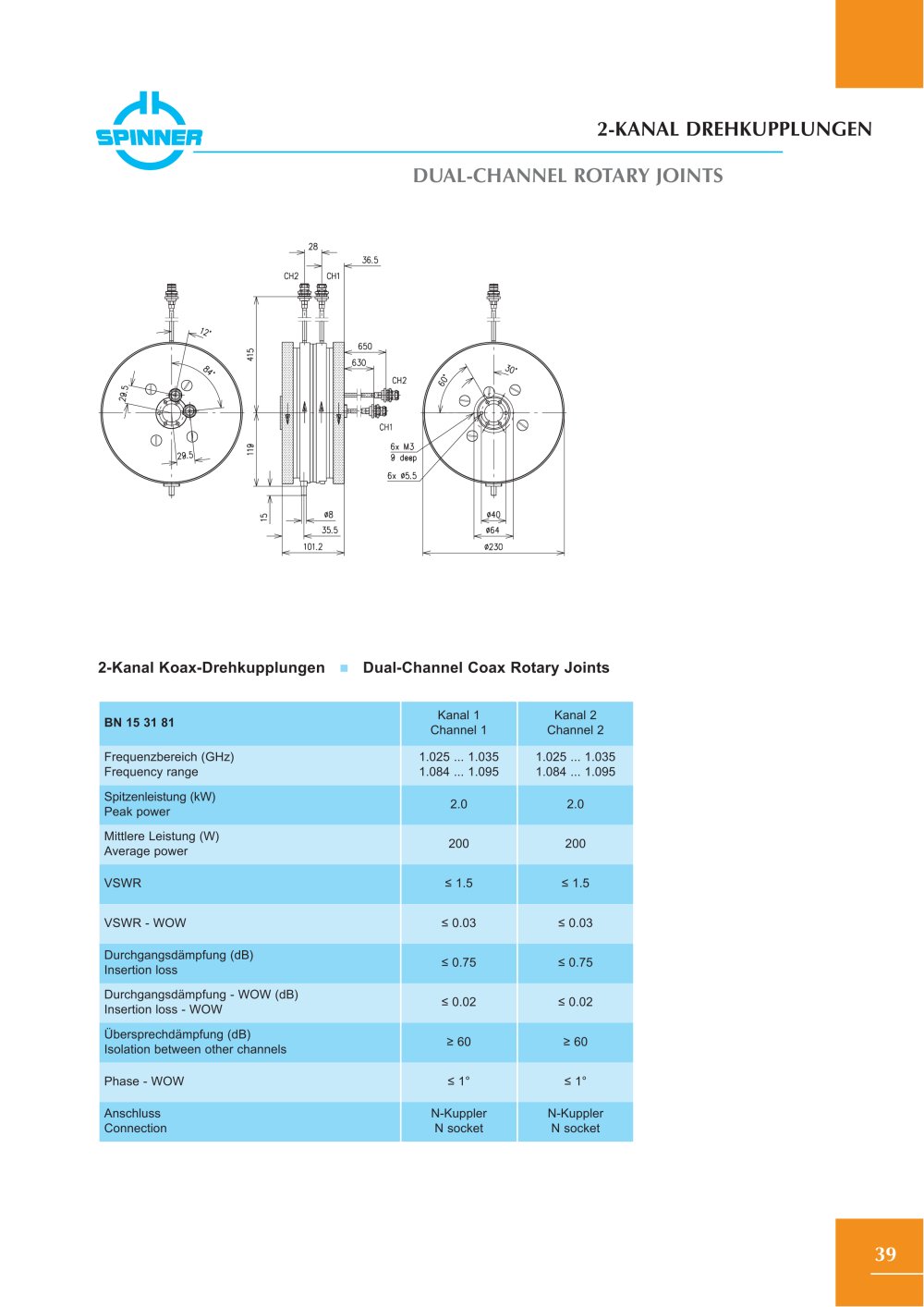

2-KANAL DREHKUPPLUNGENDUAL-CHANNEL ROTARY JOINTS

2-Kanal Koax-Drehkupplungen Dual-Channel Coax Rotary Joints

BN 15 31 81 Kanal 1Channel 1 Kanal 2Channel 2 Frequenzbereich (GHz) Frequency range 1.025 ... 1.035 1.084 ... 1.095 1.025 ... 1.035 1.084 ... 1.095 Spitzenleistung (kW) Peak power 2.0 2.0 Mittlere Leistung (W) Average power 200 200 VSWR ≤ 1.5 ≤ 1.5 VSWR - WOW ≤ 0.03 ≤ 0.03 Durchgangsdämpfung (dB) Insertion loss ≤ 0.75 ≤ 0.75 Durchgangsdämpfung - WOW (dB) Insertion loss - WOW ≤ 0.02 ≤ 0.02 Übersprechdämpfung (dB) Isolation between other channels ≥ 60 ≥ 60 Phase - WOW ≤ 1° ≤ 1° Anschluss Connection N-KupplerN socket N-KupplerN socket
